Configuring Channelized SONET/SDH on the Cisco ASR 9000 Series Router
Information About Configuring Channelized SONET/SDH
HC-326
Cisco ASR 9000 Aggregation Services Router Interfaces and Hardware Component Configuration Guide
OL-26061-03
Figure 27 shows the SDH AU4 paths that can be configured on supported SPAs.
Note The 1-Port Channelized OC-48/STM-16 SPA only supports channelization to the T3 or E3 level. Further
channelization of AU-4 paths is not supported.

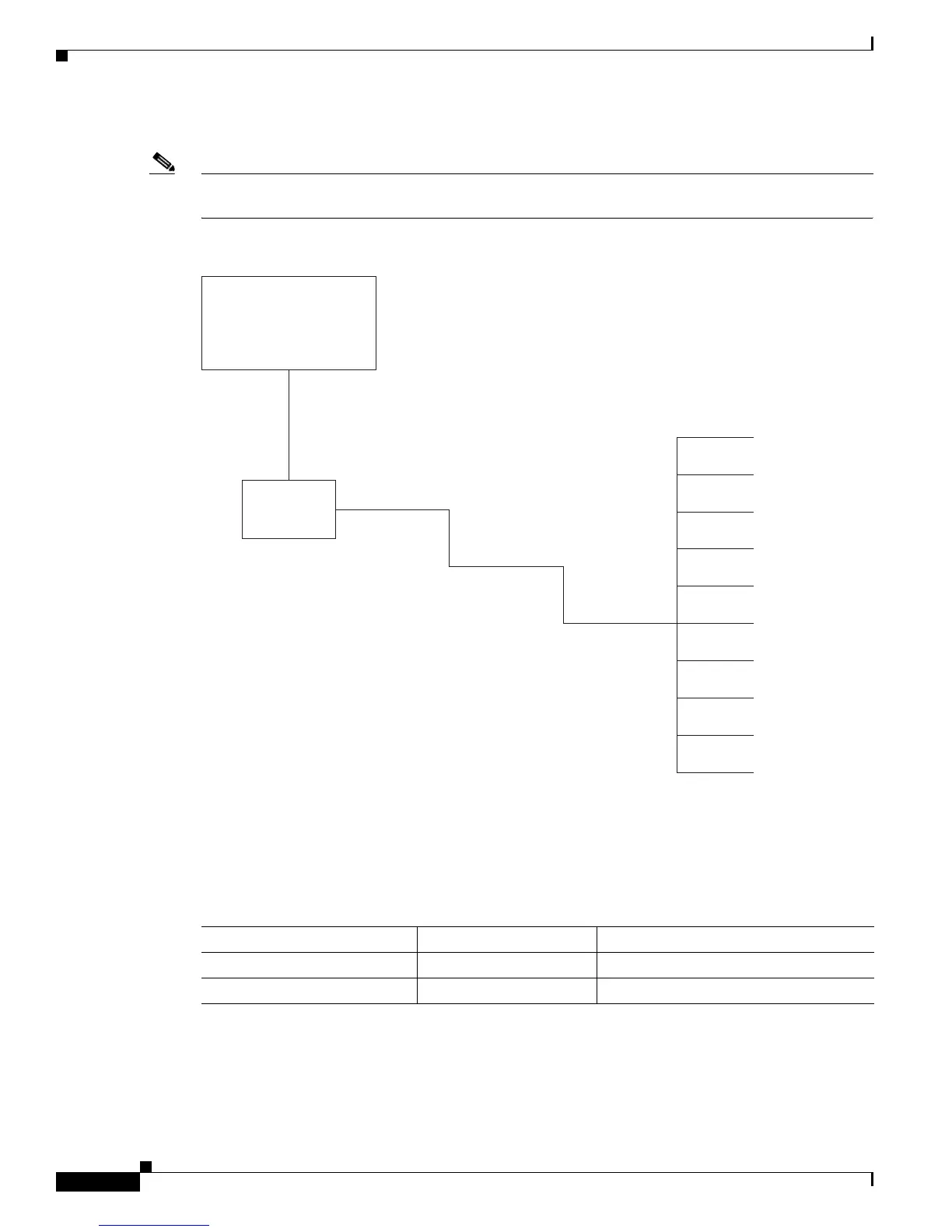

Figure 27 SDH AU4 Paths
Default Configuration Values for Channelized SONET/SDH
Table 3 describes the default configuration parameters that are present on the Channelized SONET/SDH.
SONET
Controller
210875
TUG-3
T3
or C12
AU-4
STM-1
E1
E1
E1
E1
E1
E1
E1
E1
E1
E1
Up to 21 E1s
Table 3 SONET/SDH Controller Default Cit onfiguration Values
Parameter Default Value Configuration File Entry
Clock source line clock source {internal | line}
SONET framing sonet framing {sdh | sonet}
