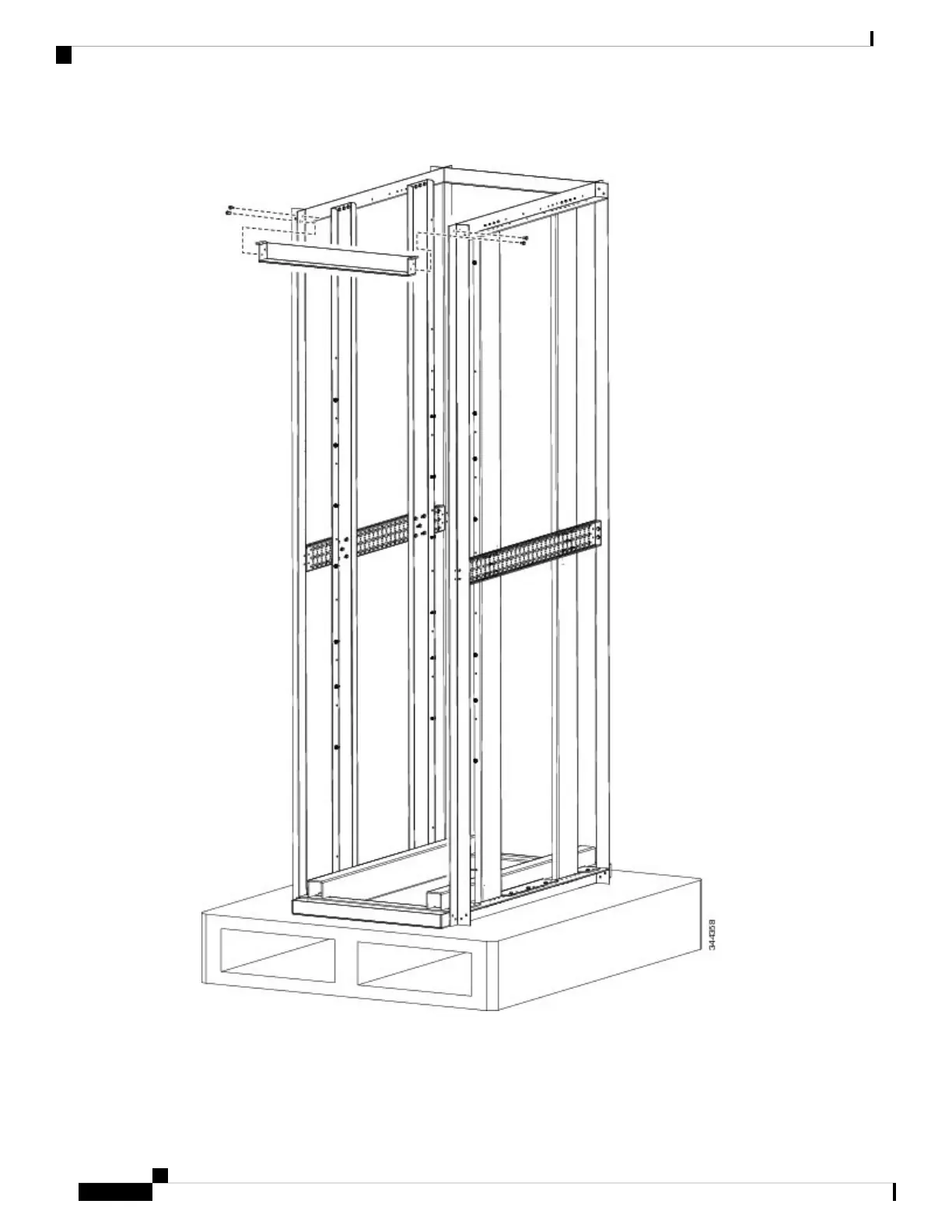

Figure 74: Cross-brace and Attachment Bolts on the Shipping Rack
Step 6 Use a Phillips screwdriver to unscrew the rear mounting flange from the system and rack.
Step 7 Use a Phillips screwdriver to unscrew the front mounting flange from the rack.
Step 8 Remove two bolts per hold-down bracket that secure the brackets to the pallet (see the figure below).
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
70
Unpacking and Installing the Chassis
Unpacking the Cisco ASR 9922 Router
