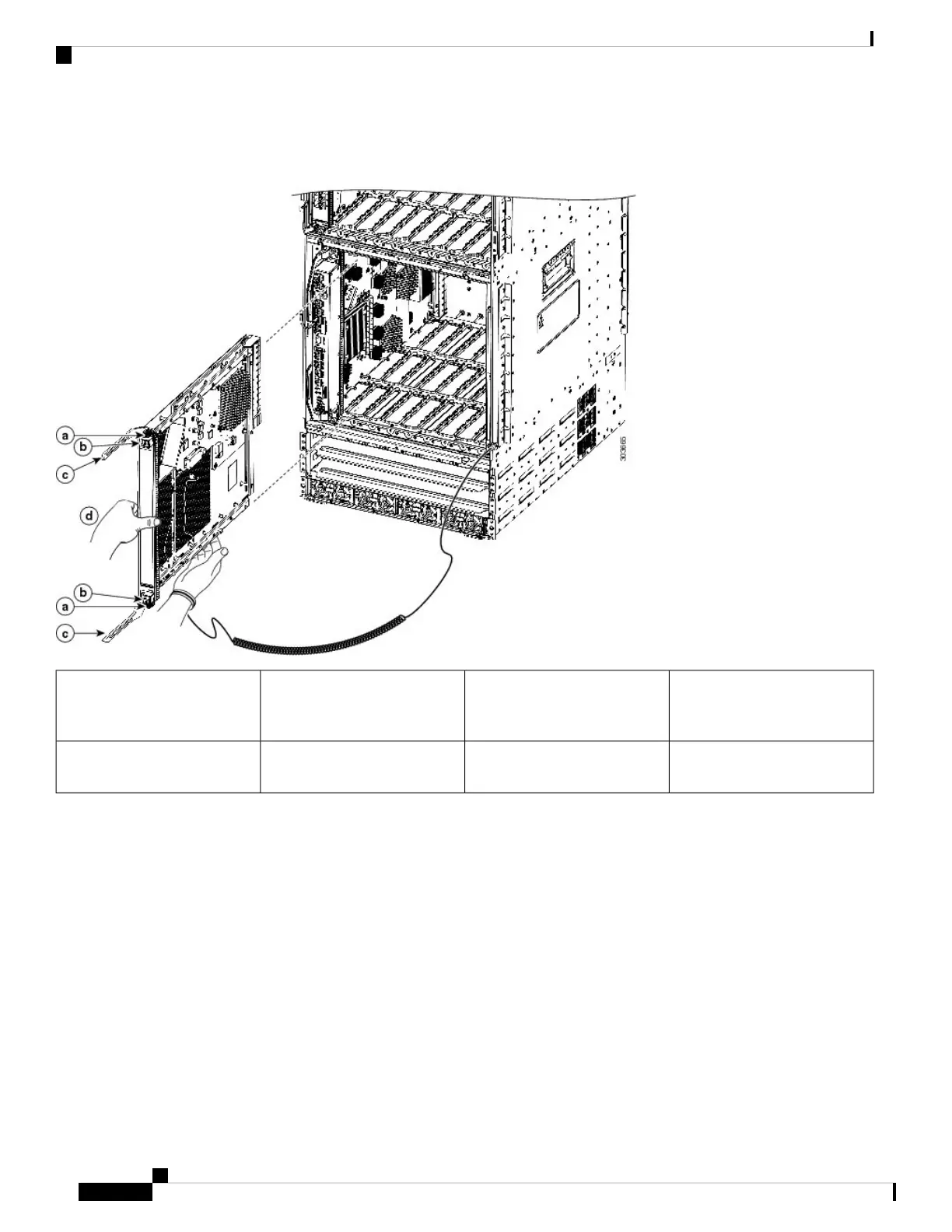

Figure 42: Removing a Switch Fabric Card from the Cisco ASR 9912 Router Chassis
Pivot the ejector levers outward
to unseat the card from the
backplane connector.
cLoosen the captive screws.a
Slide the card out of the chassis.dPush in both ejector lever
release buttons.
b
Step 3 To remove a RP or line card (see the figure below or Figure 44: Removing a Line Card from the Cisco ASR
9912 Router Top Card Cage , on page 48), starting at the lowest numbered slot:
a) Use a screwdriver to loosen the captive screws at the ends of the line card front panel.
b) Pivot the ejector levers to unseat the card from the backplane connector.
c) Slide the card out of the slot and place it directly into an antistatic bag or other ESD-preventive container.
Unpacking and Installing the Chassis
46
Unpacking and Installing the Chassis
Removing RP Cards, Fabric Cards, and Line Cards from the Cisco ASR 9922 Router and Cisco ASR 9912 Router

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
