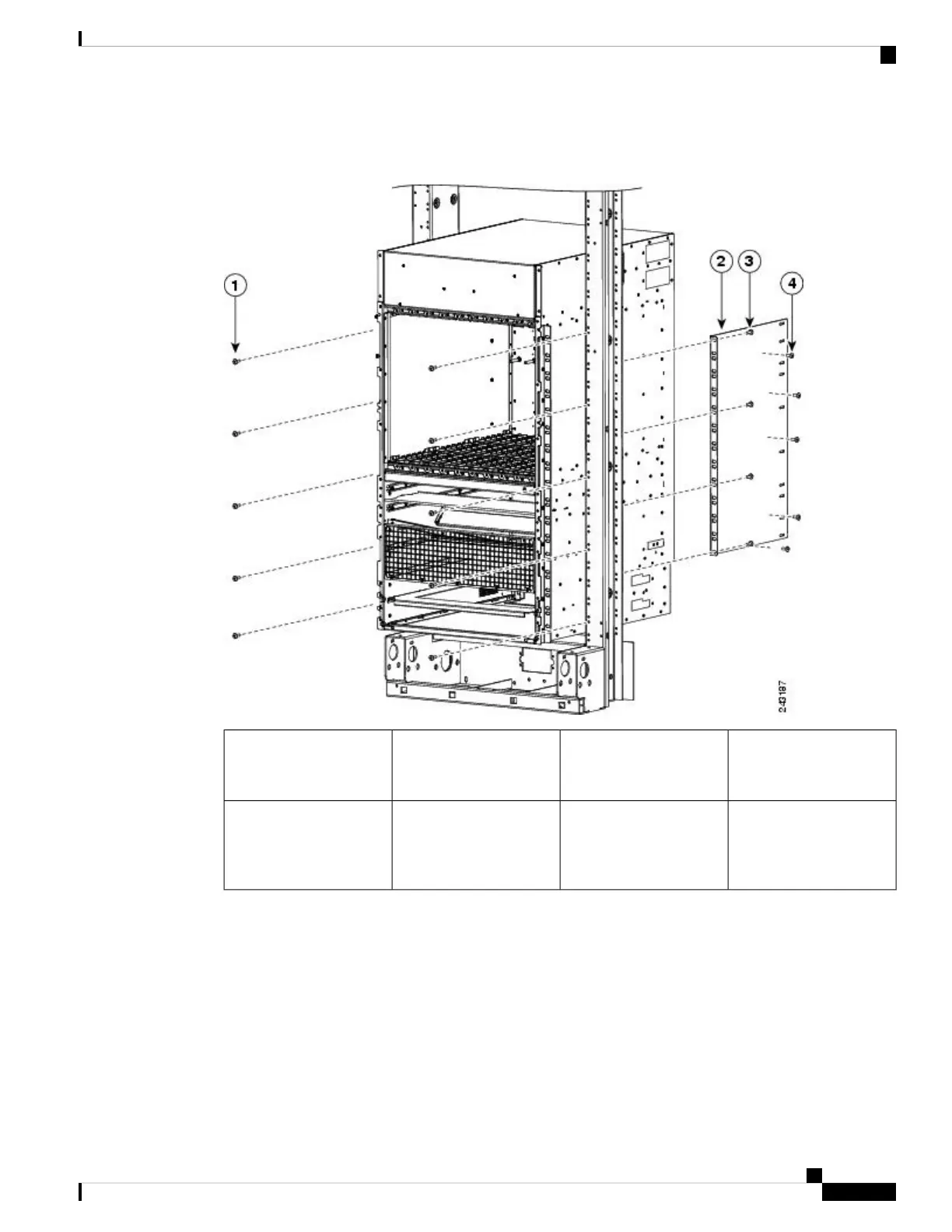

Figure 47: Installing the Cisco ASR 9010 Router Chassis in a Seismic 2-Post Rack
Rear mounting bracket3Five screws per side
(minimum) to attach the
router chassis to the rack
1
Five screws to attach the
rear mounting bracket to
the router chassis
4Four screws (minimum)
to attach the rear
mounting bracket to the
rack
2
The figure below shows the orientation of the Cisco ASR 9006 Router chassis to the rack posts and components
used in the installation.
Unpacking and Installing the Chassis
51
Unpacking and Installing the Chassis
Installing the Chassis in a 2-Post Rack

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
