Procedure
Step 1 Locate the fan assembly in the chassis. The fan tray is located to the left of the chassis on the rear side. See
the following figure.

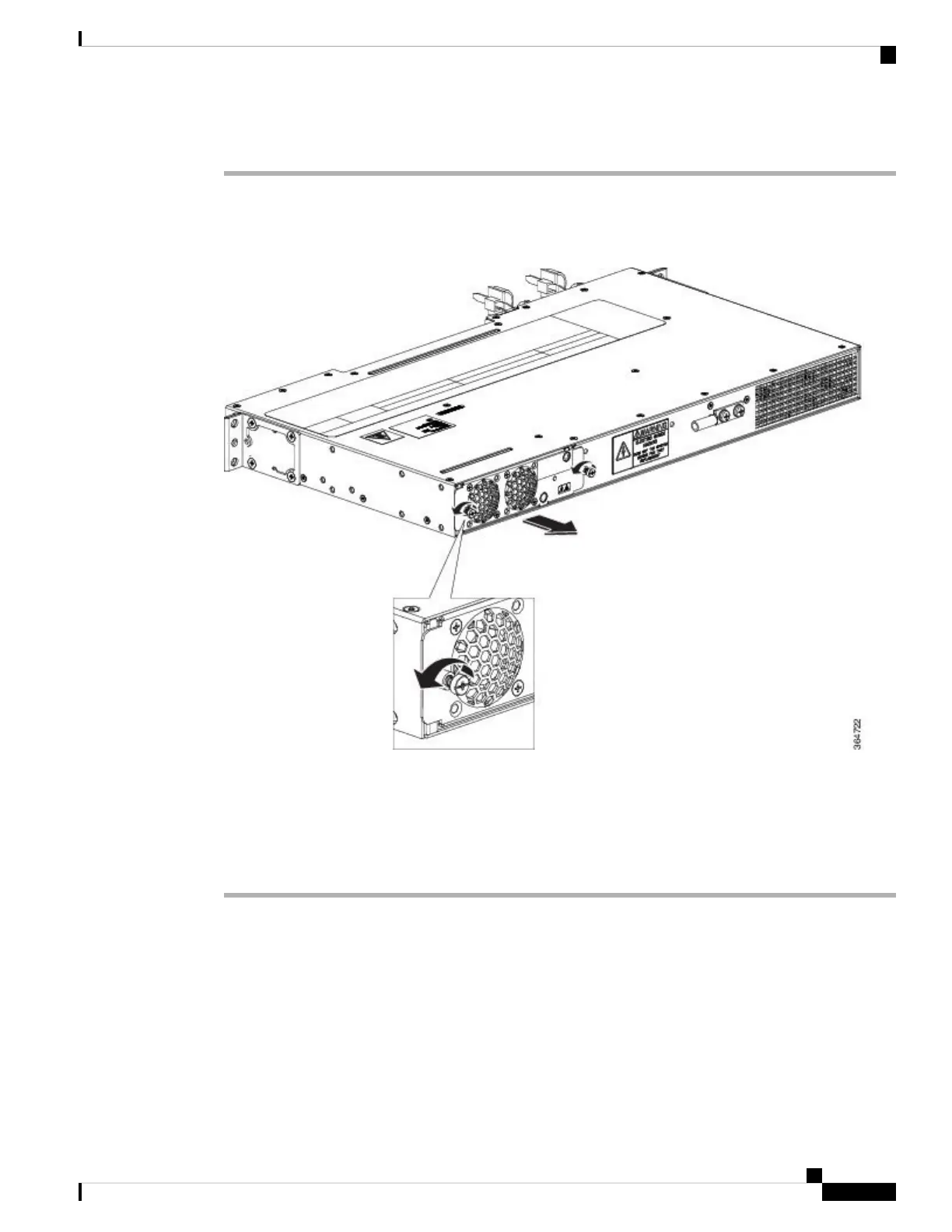

Figure 18: Uninstalling the Fan Tray from the Chassis
Step 2 Loosen the two fan tray captive installation screws by turning them counterclockwise, using a flat-blade or
number 2 Phillips-head screwdriver.
Step 3 Grasp the fan assembly with both hands, and pull it outward; rock it gently, if necessary, to unseat the fan
assembly power connector from the backplane.
Step 4 Pull the fan assembly clear of the chassis, and set it aside.
