Install the cable guides before installing the router in a 19-inch EIA rack. See the Attaching the Cable Guides
section in the Cisco ASR-920-12SZ-IM and ASR-920U-12SZ-IM Aggregation Services Router Hardware
Installation Guide.
Note
To install the router chassis in the equipment rack, perform these steps:
Procedure
Step 1 Position the chassis in the rack as follows:
• If the front of the chassis (front panel) is at the front of the rack, insert the rear of the chassis between
the mounting posts.
• If the rear of the chassis is at the front of the rack, insert the front of the chassis between the mounting
posts.
Step 2 Align the mounting holes in the bracket (and optional cable guide) with the mounting holes in the equipment
rack.
The following figure shows how to install the router in a 19-inch EIA rack.

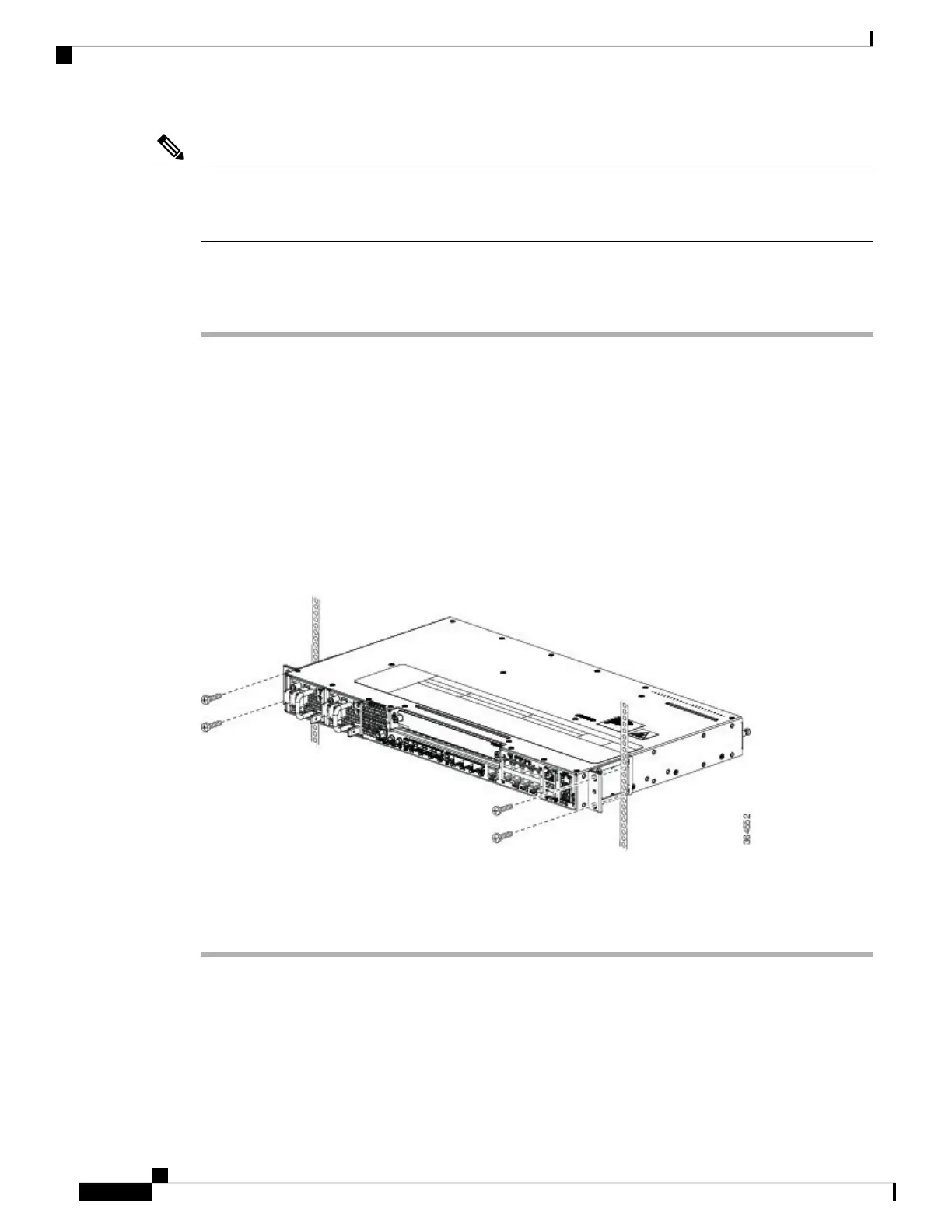

Figure 5: Installing the Chassis in a 19-inch EIA Rack
Step 3 Install the four M6x12mm zinc-plated steel screws through the holes in the bracket and into the threaded holes
in the equipment rack posts.
Step 4 Use a tape measure and level to verify that the chassis is installed straight and level.
Attaching the Cable Guides
The Cisco ASR 920 Series Router supports the following cable guides:
Installing the Cisco ASR 920 Series Router
8
Installing the Cisco ASR 920 Series Router
Attaching the Cable Guides

Cisco ASR 920 series Specifications

General

Form Factor	1RU
Operating System	Cisco IOS XE
Model	ASR 920 series
Memory	4 GB DRAM
Power Supply	AC or DC
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Relative Humidity	5% to 95% non-condensing
MTBF	Varies by model
Management	CLI, SNMP
