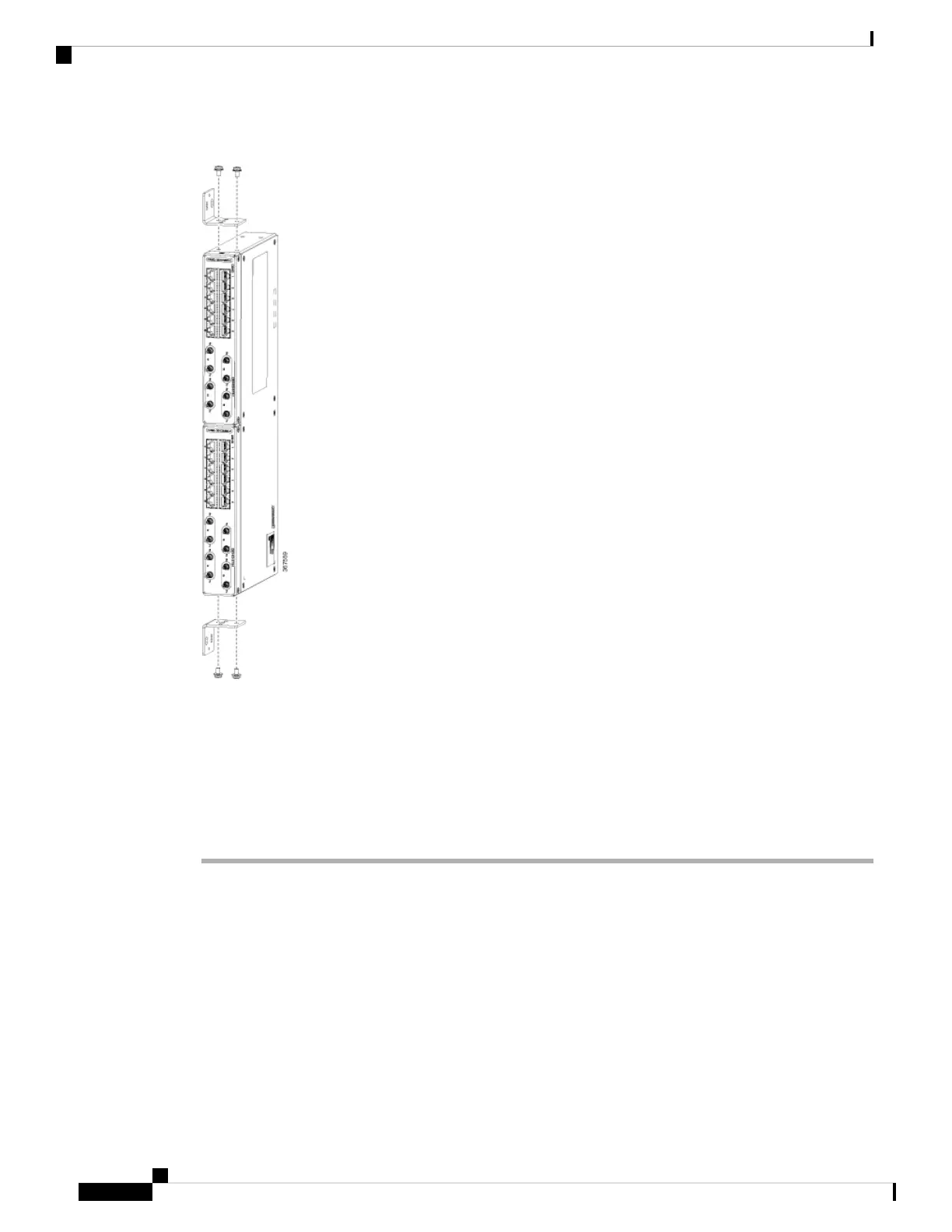

Figure 46: Wall Mount - Dual
Step 2 Secure the bracket to the device with the recommended maximum torque of 10 inch-pounds (1.1 newton
meters).
Step 3 Position the device vertically on the wall.
Before mounting the device, ensure that all unused holes at the sides of the device are protected
with screws.
Caution
Step 4 Use a tape measure and level to verify that the device is installed straight and on level.
Patch Panel Dimensions
Following are the various patch panel dimensions.
