StackWise port2StackWise adapter1
Step 4 Connect the cable to the StackWise port on the switch rear panel.
a) Align the StackWise cable connector with the StackWise adapter in the StackWise port.
b) Insert the StackWise cable connector into the StackWise port. Make sure that the Cisco logo is on the top
side of the connector.

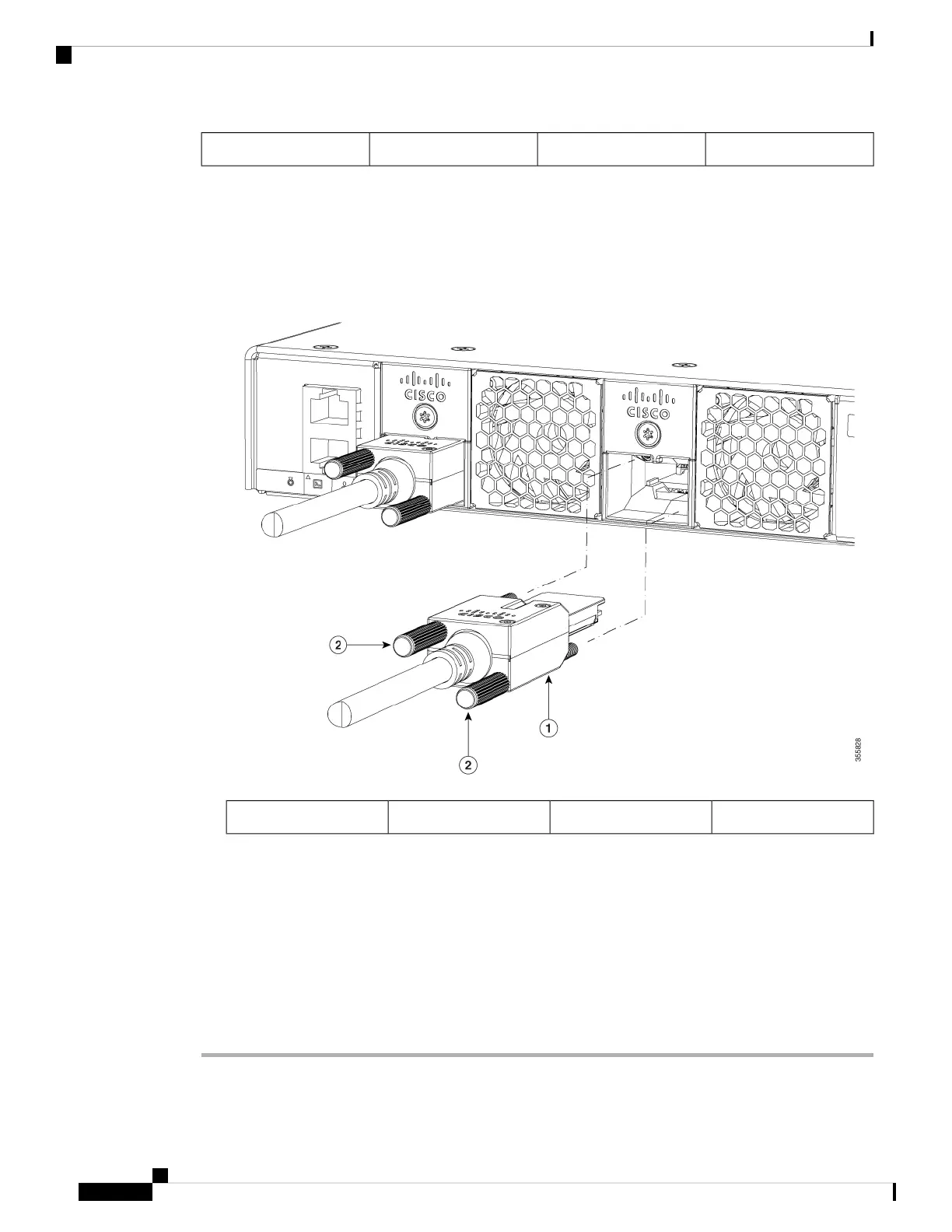

Figure 20: Connecting the StackWise Cable in a StackWise Port
StackWise cable2Connector screws1
c) Finger-tighten the screws in clockwise direction.
Step 5 Connect the other end of the cable to the port on the other switch and finger-tighten the screws. Avoid
over-tightening the screws.
Removing and installing the StackWise cable can shorten its useful life. Do not remove and insert
the cable more often than is absolutely necessary (installing and removing it up to 200 times is
supported).
Caution
When you need to remove the StackWise cable from the connector, make sure to fully unscrew the correct
screws. When the connectors are not being used, replace the dust covers.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
26
Installing the Switch
Connecting to the StackWise Ports

Cisco C9200L-48P-4G Specifications

General

Model	C9200L-48P-4G
Category	Switch
Uplink Interfaces	4 x 1G SFP
Switching Capacity	176 Gbps
PoE Budget	740W
Stacking Bandwidth	80 Gbps
Enclosure Type	Rack-mountable - 1U
Power Over Ethernet (PoE)	Yes
RAM	2 GB
Flash Memory	4 GB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Ports	48 x 10/100/1000 PoE+
MAC Address Table Size	16K
Jumbo Frame Support	Yes
Routing Protocol	RIP
Remote Management Protocol	SNMP
Features	Quality of Service (QoS), VLAN support, Access Control List (ACL) support, DHCP snooping, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at
Operating Temperature	0 to 40 °C
Operating Humidity	10 to 90% non-condensing
