STACK LED
The STACK LED shows the sequence of member switches in a stack. Up to eight switches can be members
of a stack. The first eight port LEDs show the member number of a switch in a stack.

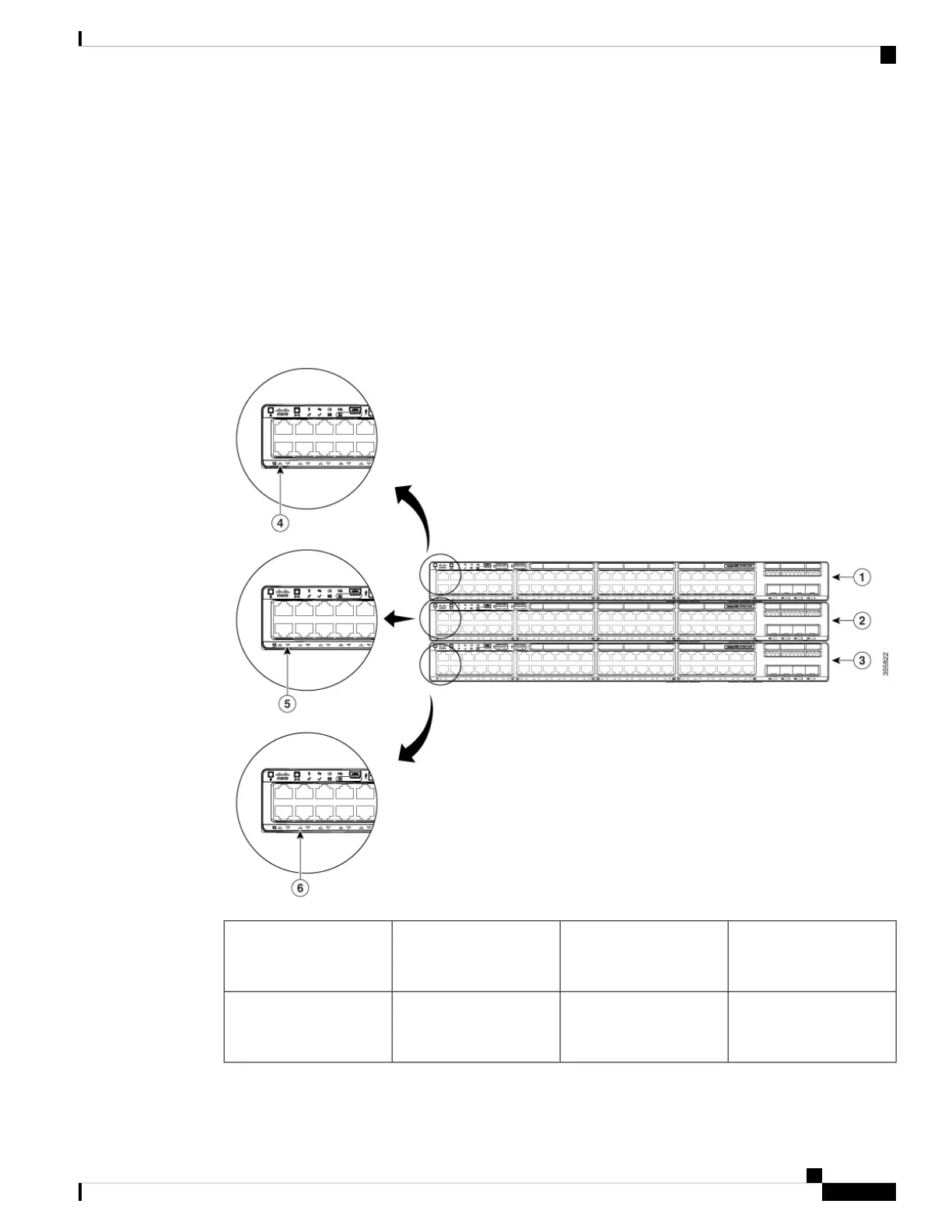

Figure 47: STACK LED
This figure shows the LEDs on for each switch. When you press the Mode button to select the STACK LED,
the corresponding port LEDs will blink green for each switch. For example, for switch 1, port 1 will blink
green and the rest of the LEDs will be off. On switch 2, port 2 will blink green and the rest of the LEDs will
be off. The same behavior will be seen with the remaining switches in the stack.
LED blinks green to show
that this is switch 1 in the
stack.
4Stack member 11
LED blinks green to show
that this is switch 2 in the
stack.
5Stack member 22
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
77
Switch LEDs
STACK LED

Cisco C9200L-48P-4G Specifications

General

Model	C9200L-48P-4G
Category	Switch
Uplink Interfaces	4 x 1G SFP
Switching Capacity	176 Gbps
PoE Budget	740W
Stacking Bandwidth	80 Gbps
Enclosure Type	Rack-mountable - 1U
Power Over Ethernet (PoE)	Yes
RAM	2 GB
Flash Memory	4 GB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Ports	48 x 10/100/1000 PoE+
MAC Address Table Size	16K
Jumbo Frame Support	Yes
Routing Protocol	RIP
Remote Management Protocol	SNMP
Features	Quality of Service (QoS), VLAN support, Access Control List (ACL) support, DHCP snooping, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at
Operating Temperature	0 to 40 °C
Operating Humidity	10 to 90% non-condensing
