Installation Guidelines
Observe these guidelines when removing or installing a fan module:
• Do not force the fan module into the slot. This can damage the pins on the switch if they are not aligned
with the module.
• A fan module that is only partially connected to the switch can disrupt the system operation.
• The switch supports hot swapping of the fan module. You can remove and replace the module without
interrupting normal switch operation.
Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement
1030
Warning
Installing a Fan Module
Procedure
Step 1 Pinch the fan module release handle, and slide the module out.
You should replace the fan module within 5 minutes to avoid overheating the switch.
Caution
Step 2 Install the fan module in the fan slot, and firmly push it into the slot, applying pressure to the end of the
module, not the extraction handles. When correctly inserted, the fan module is flush with the switch rear panel.
When the fan is operating, a green LED is on in the top left corner of the fan.

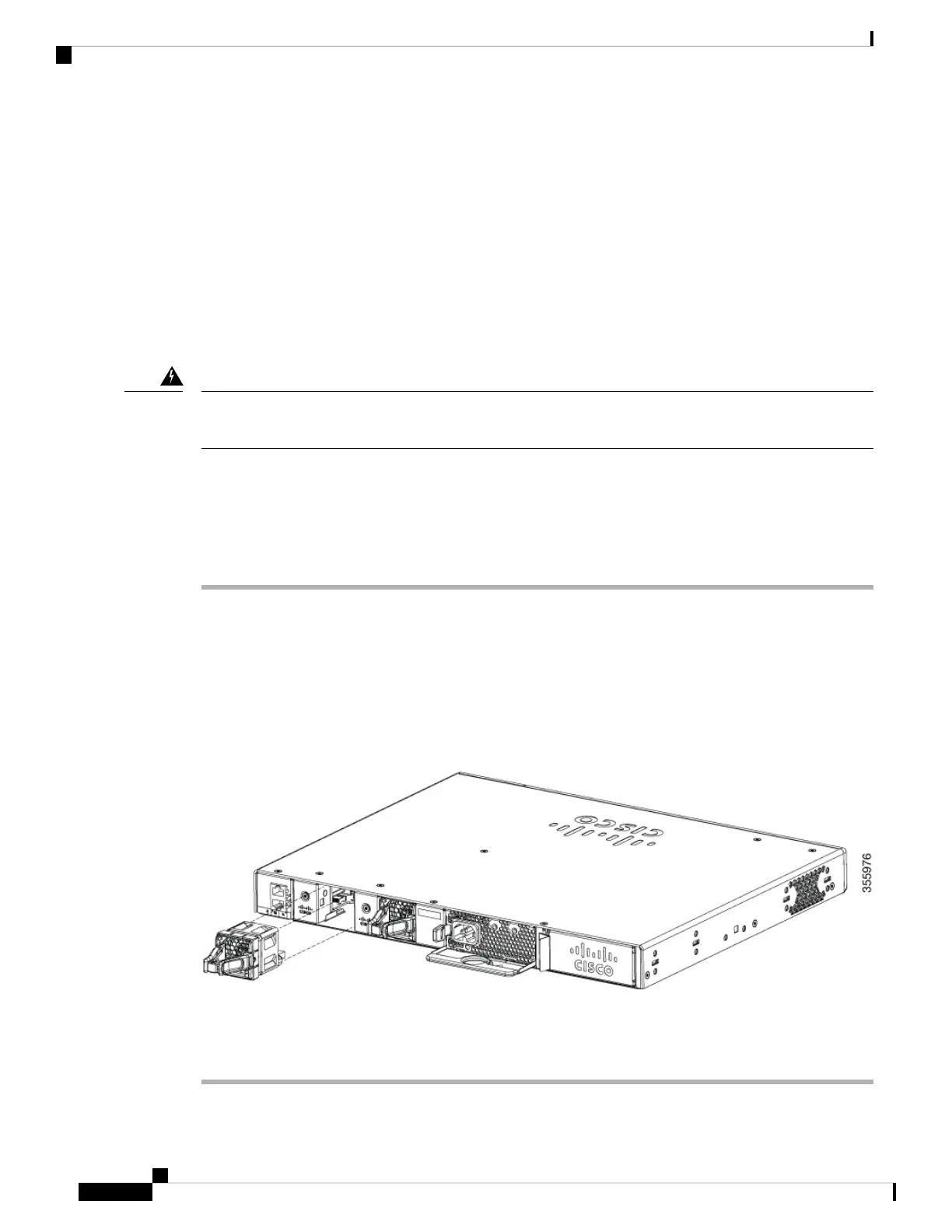

Figure 32: Installing a Fan Module
Do not reach into a vacant slot when installing or removing a module. Exposed circuitry is an energy
hazard. Statement 206
Warning
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
48
Installing a Fan Module
Installation Guidelines

Cisco C9200L-48P-4G Specifications

General

Model	C9200L-48P-4G
Category	Switch
Uplink Interfaces	4 x 1G SFP
Switching Capacity	176 Gbps
PoE Budget	740W
Stacking Bandwidth	80 Gbps
Enclosure Type	Rack-mountable - 1U
Power Over Ethernet (PoE)	Yes
RAM	2 GB
Flash Memory	4 GB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Ports	48 x 10/100/1000 PoE+
MAC Address Table Size	16K
Jumbo Frame Support	Yes
Routing Protocol	RIP
Remote Management Protocol	SNMP
Features	Quality of Service (QoS), VLAN support, Access Control List (ACL) support, DHCP snooping, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at
Operating Temperature	0 to 40 °C
Operating Humidity	10 to 90% non-condensing
