Each AC power supply module has a power cord for connection to an AC power outlet.

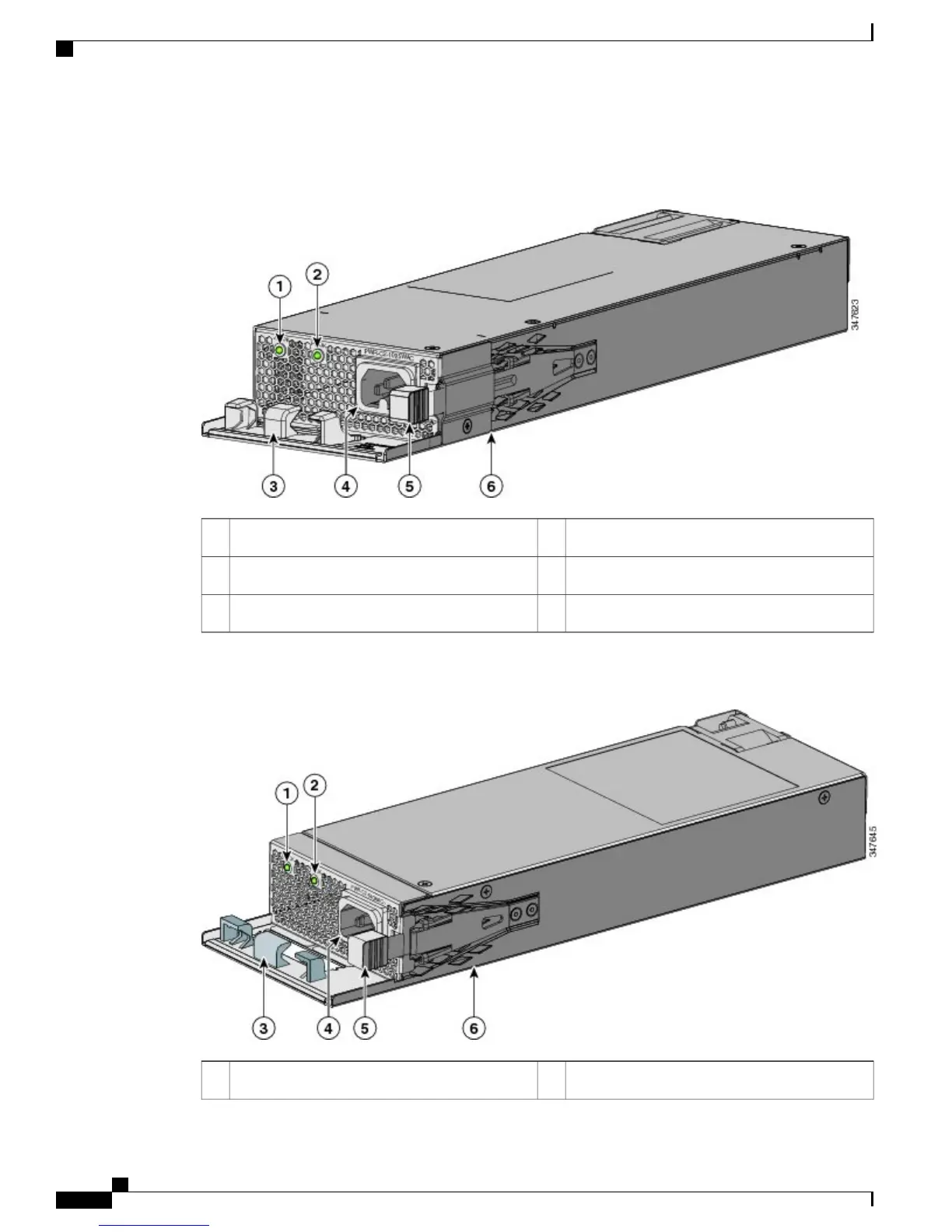

Figure 30: PWR-C2-1025WAC Power Supply
AC power cord connector4AC OK LED1
Release latch5PS OK LED2
Power supply6AC power cord retainer3
Figure 31: PWR-C2-640WAC Power Supply
AC power cord connector4AC OK LED1
Catalyst 2960-X and 2960-XR Switch Hardware Installation Guide
54 OL-28309-02
Power Supply Installation
Power Supply Module Overview
