Installing the Switch
Attaching the Brackets
Use four number-8 Phillips flat-head screws to attach the long side of each bracket to the switch in one
of these mounting positions.

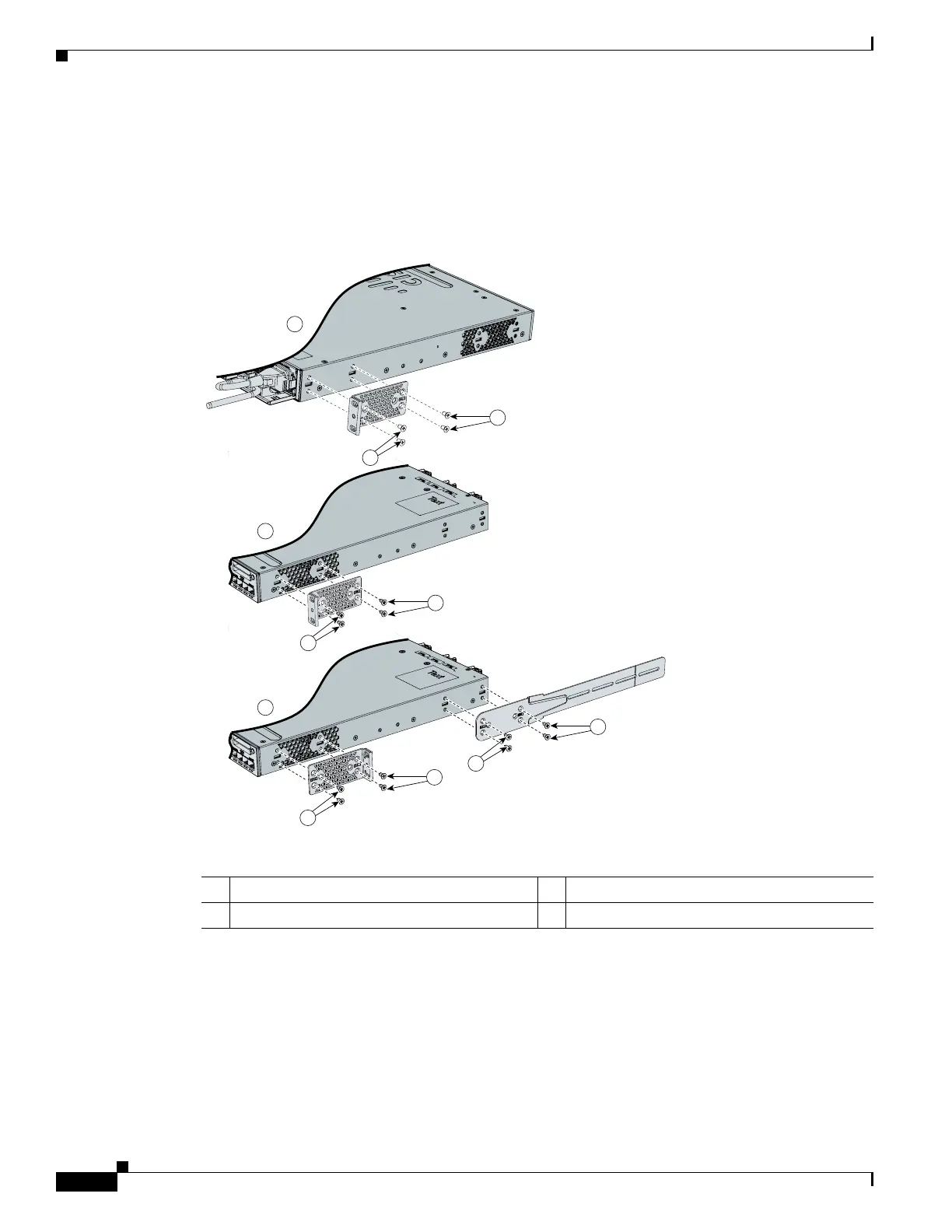

Figure 2 Attaching the brackets to the switch
1 Rear-mounting position 3 Front-mounting position
2 Number-8 Phillips flat-head screws
