Catalyst 3850 Switch Getting Started Guide

OL-26778-02

Connecting the Switch Ports

10/100/1000, 10/100/1000 PoE+, or 10/100/1000 Cisco UPOE Ports

When you connect to servers, workstations, IP phones, wireless access points, and routers:

• Use a straight-through, twisted four-pair, Category 5 cable in a 10/100/1000 port.

• Use a crossover, twisted four-pair, Category 5 cable when you connect to other switches, hubs, or

repeaters.

• Connect the other cable end to an RJ-45 port on the other device.

In some switch models, the 10/100/1000 ports support Power over Ethernet (PoE), PoE+, or Cisco

Universal Power Over Ethernet (Cisco UPOE).

• Support for IEEE 802.3af compliant powered devices (up to 15.4 W) PoE

• Support for IEEE 802.3at compliant powered devices (up to 30 W) PoE+

For more details, see the Catalyst 3850 Switch Hardware Installation Guide on Cisco.com.

Note The automatic medium-dependent interface crossover (auto-MDIX) feature is enabled by default. The

switch detects the required cable type for copper Ethernet connections and configures the interfaces. You

can use either a crossover or a straight-through cable for connections to a copper 10/100/1000 module

port on the switch, regardless of the type of connected device.

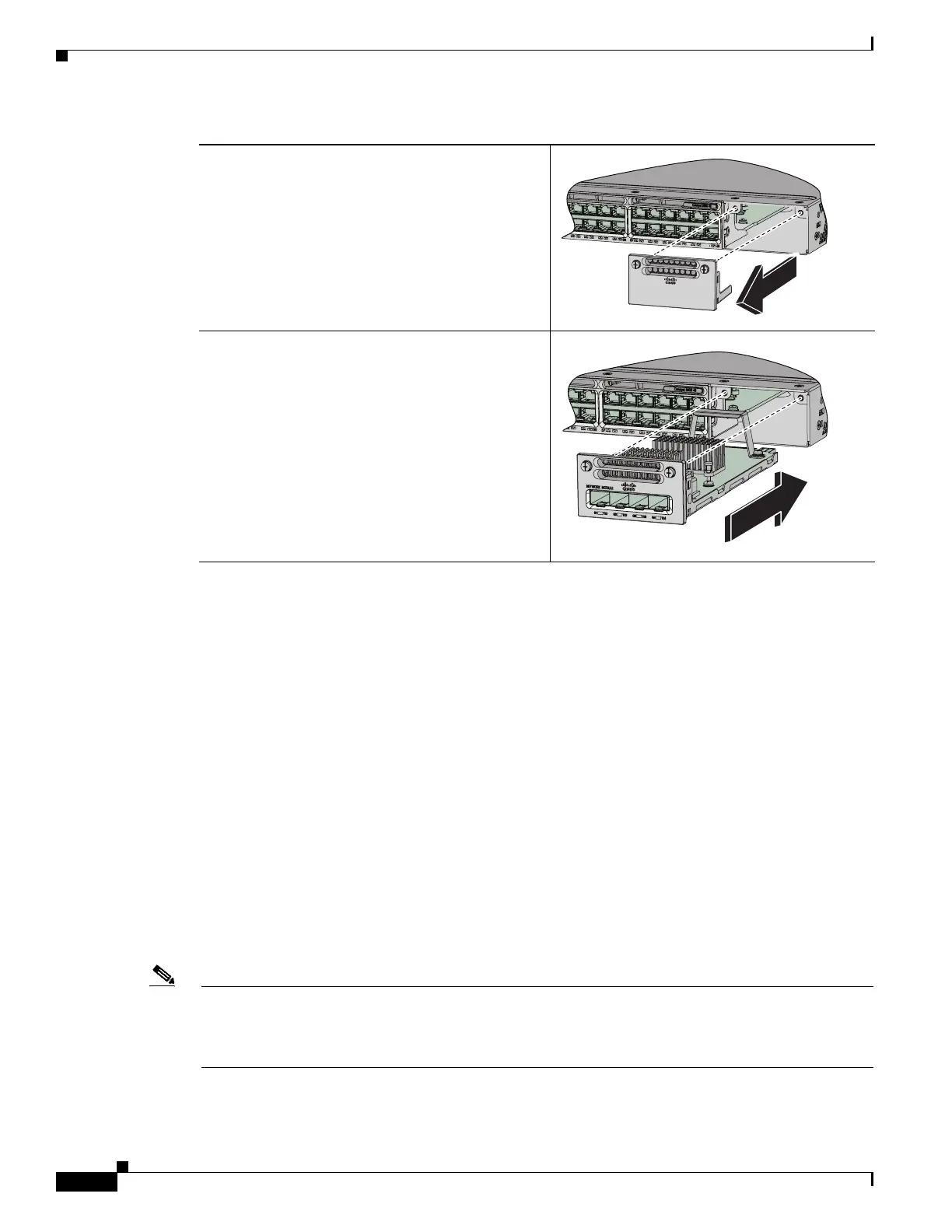

Step 1

Loosen the captive screws, and remove the blank

network module cover.

Step 2

Slide the network module into the opening until the

back of the module faceplate is flush with the switch

faceplate. Tighten the captive screws. For a list of

supported network modules, see the Catalyst 3850

Switch Hardware Installation Guide at:

http://www.cisco.com/go/cat3850_hw

C3850-NM-BLANK

333413

333

412

C3850-NM-4-10G
