Catalyst 3850 Switch Getting Started Guide
OL-26778-02
Installing the Network Module (Optional)
StackPower Cabling Configurations
You can configure a StackPower stack of up to four switches for either power-sharing or redundancy.
This illustration shows the recommended stack configuration with connections using 0.3-meter
StackPower cables.
For more examples, see the Catalyst 3850 Switch Hardware Installation Guide on Cisco.com at:
http://www.cisco.com/go/cat3850_hw

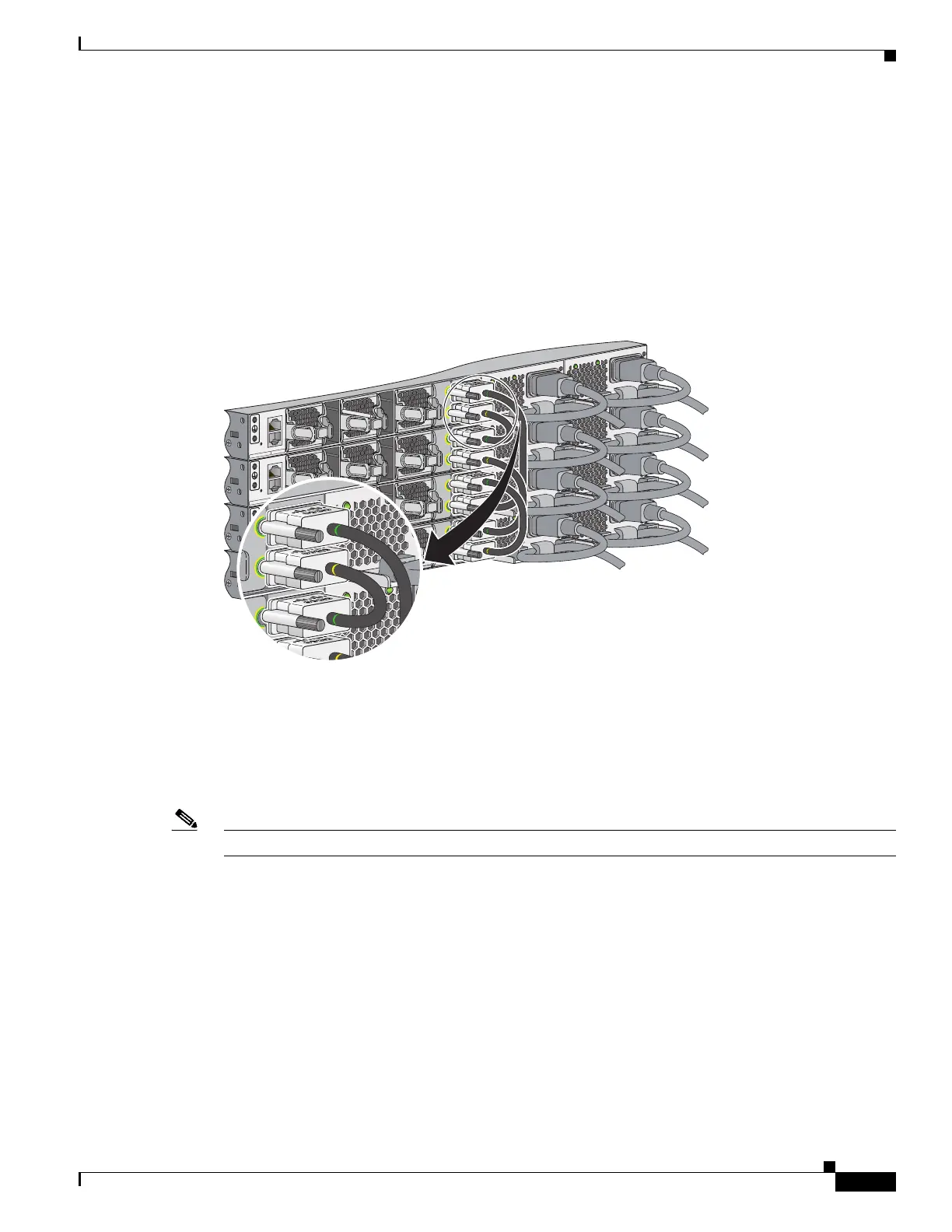

Figure 8 Example of a StackPower stack configuration
Installing the Network Module (Optional)
The switch accepts a hot-swappable network expansion module that provides SFP (1 Gigabit) and
depending on the model, SFP+ (10 Gigabit) uplink ports.
Note You need a number-2 Phillips screwdriver to install the network module.
AC OK
C3KX-PWR-715WAC
PS OK
AC OK
C3KX-PWR-715WAC
PS OK
AC OK
C3KX-PWR-715WAC
PS OK
AC OK
C3KX-PWR-715WAC
PS OK
AC OK
C3KX-PWR-715WAC
PS OK
AC OK
C3KX-PWR-715WAC
PS OK
AC OK
PWR-C1-715WAC
PS OK
AC OK
PWR-C1-715WAC
PS OK
CONSOLE
MGMT
RESET
S-PWR 1
XPS
S-PWR 2
CONSOLE
MGMT
RESET
S-PWR 1
XPS
S-PWR 2
CONSOLE
MGMT
RESET
S-PWR 1
XPS
S-PWR 2
CONSOLE
MGMT
RESET
S-PWR 1
XPS
S-PWR 2
334331
AC OK
C3
PS OK
AC OK
C3
PS OK
S-PWR 1
XPS
S-PWR 2
S-PWR 1
XPS
S-PWR 2

Cisco Catalyst 3850 Specifications

General

Stacking Bandwidth	480 Gbps
Max Stacking Units	9
Form Factor	Rack-mountable
RAM	4 GB
Flash Memory	4 GB
Operating System	Cisco IOS XE
Model	Catalyst 3850
Ports	24 or 48 Gigabit Ethernet ports
Uplink Interfaces	4 x 1GE, 2 x 10GE, or 4 x 10GE
Power Supply	Redundant power supplies
Dimensions	44.5 x 44.8 x 4.45 cm
Weight	7.6 kg
Features	IPv6
Power over Ethernet (PoE)	PoE, PoE+, UPOE (varies by model)
Operating Temperature	0 to 40°C
