Cisco Catalyst 3850 User Manual

APPENDIX B
Connector and Cable Specifications
• Connector Specifications, on page 127
• Console Port, on page 128
• Cables and Adapters, on page 129
Connector Specifications
10/100/1000 Ports (Including PoE)
All 10/100/1000 ports use standard RJ-45 connectors and Ethernet pinouts.

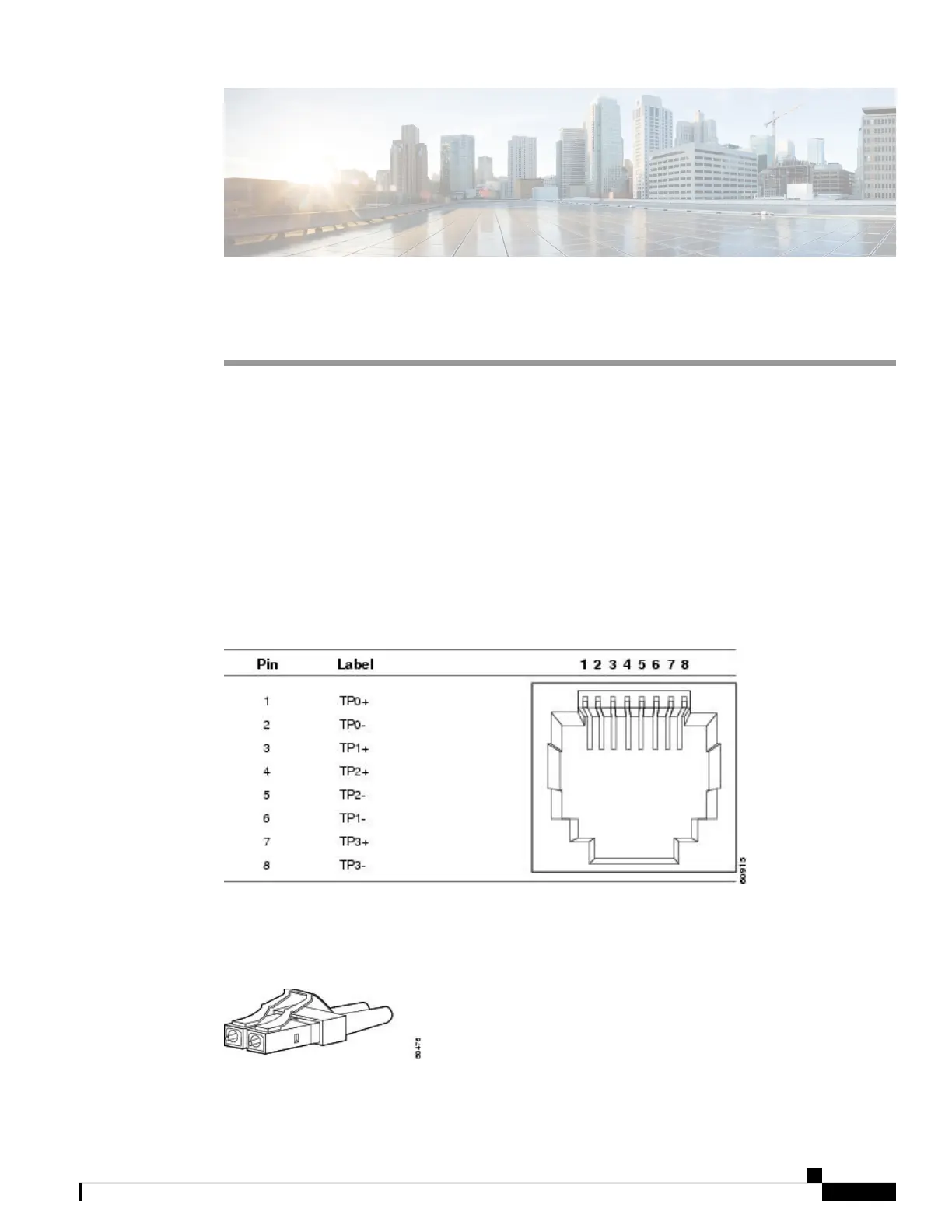

Figure 86: 10/100/1000 Port Pinouts
SFP Module Connectors
Figure 87: Duplex LC Cable Connector
Catalyst 3850 Switch Hardware Installation Guide
127OL-26779-05

Cisco Catalyst 3850 Specifications

General

Stacking Bandwidth	480 Gbps
Max Stacking Units	9
Form Factor	Rack-mountable
RAM	4 GB
Flash Memory	4 GB
Operating System	Cisco IOS XE
Model	Catalyst 3850
Ports	24 or 48 Gigabit Ethernet ports
Uplink Interfaces	4 x 1GE, 2 x 10GE, or 4 x 10GE
Power Supply	Redundant power supplies
Dimensions	44.5 x 44.8 x 4.45 cm
Weight	7.6 kg
Features	IPv6
Power over Ethernet (PoE)	PoE, PoE+, UPOE (varies by model)
Operating Temperature	0 to 40°C
