• LEDs
• Mode button
All of the switches have similar components. See the following illustrations for examples.
The Catalyst 3850 switches might have slight cosmetic differences on the bezels.
Note

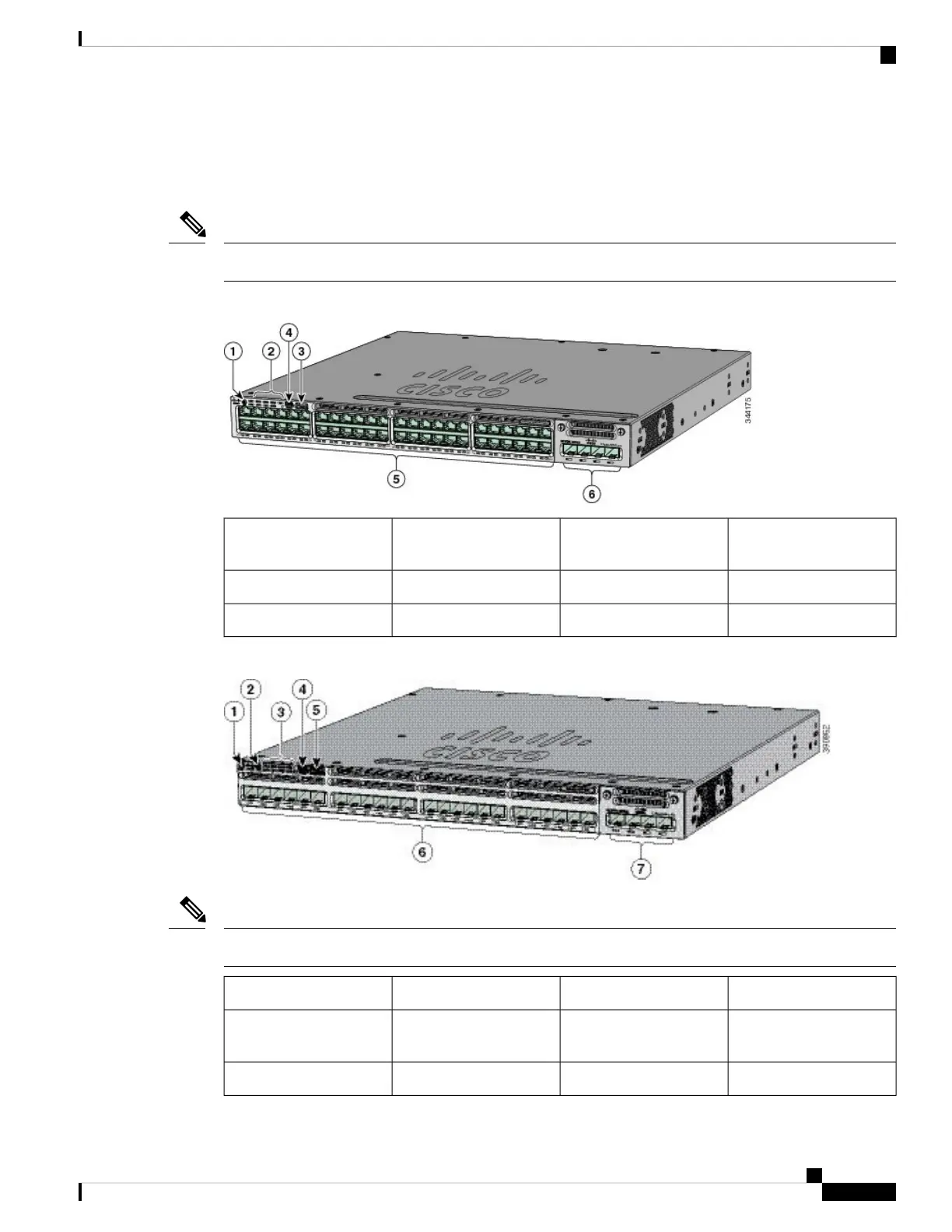

Figure 1: WS-C3850-48P-L Switch Front Panel
USB mini-Type B
(console) port
4Mode button1
10/100/1000 PoE+ ports5Status LEDs2
Network module6USB Type A storage port3
Figure 2: WS-C3850-24S Switch Front Panel
The WS-C3850-12S switches have similar front panels.
Note
USB Type A storage port5UID button1
SFP module slots
(downlink)
6Mode button2
Network module7Status LEDs3
Catalyst 3850 Switch Hardware Installation Guide
7OL-26779-05
Product Overview
Front Panel

Cisco Catalyst 3850 Specifications

General

Stacking Bandwidth	480 Gbps
Max Stacking Units	9
Form Factor	Rack-mountable
RAM	4 GB
Flash Memory	4 GB
Operating System	Cisco IOS XE
Model	Catalyst 3850
Ports	24 or 48 Gigabit Ethernet ports
Uplink Interfaces	4 x 1GE, 2 x 10GE, or 4 x 10GE
Power Supply	Redundant power supplies
Dimensions	44.5 x 44.8 x 4.45 cm
Weight	7.6 kg
Features	IPv6
Power over Ethernet (PoE)	PoE, PoE+, UPOE (varies by model)
Operating Temperature	0 to 40°C
