Cisco Catalyst 9130 User Manual

• A slotted screwdriver or a wrench to tighten the screws on the hose clamps
• A Hex key to tighten set screws
Mounting on a Wall or Ceiling Using Articulating Bracket
Tether antenna assembly and mounting hardware to a secure mounting surface using the tether anchor on the
antenna. The mounting kit does not include the tether strap.
Note

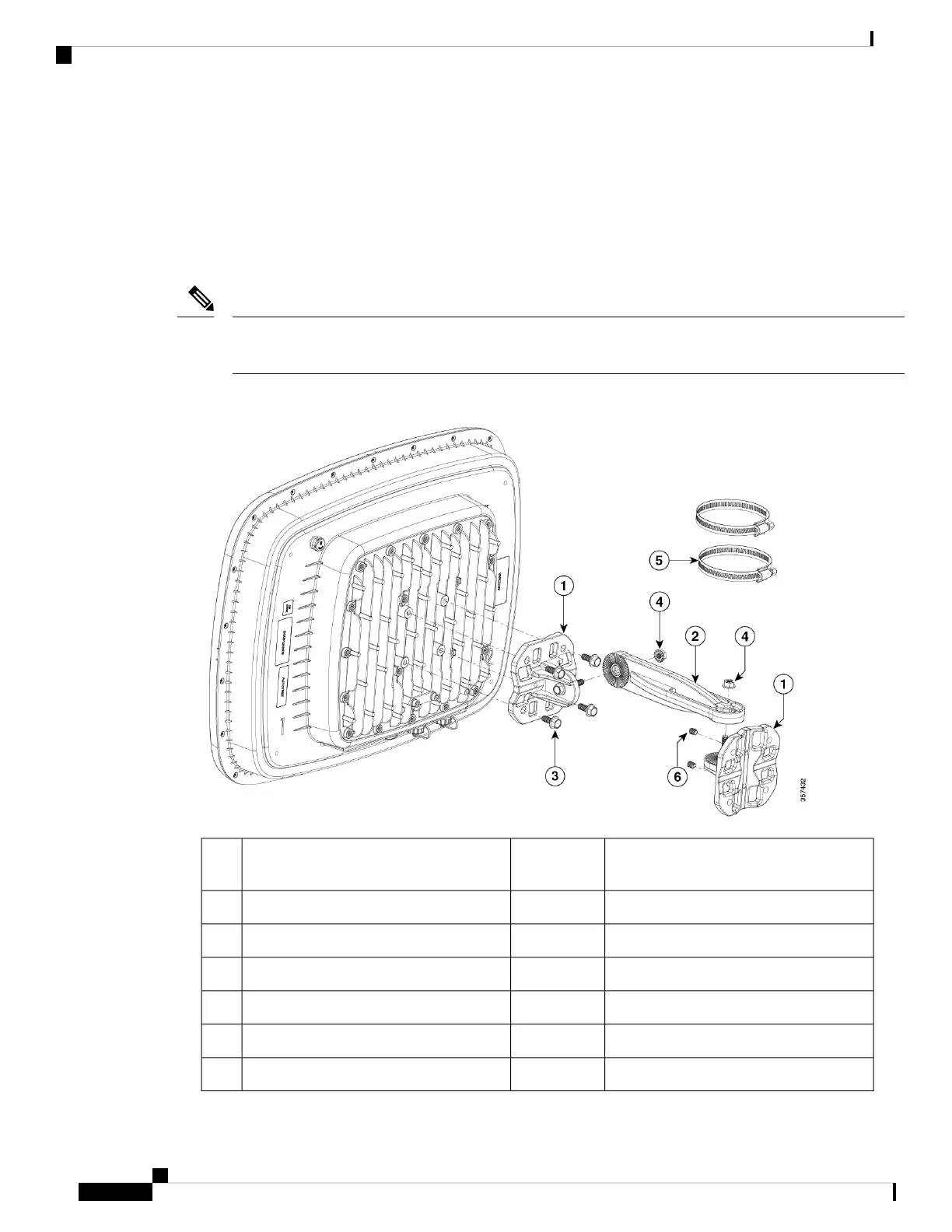

Figure 18: Exploded View of Antenna and Bracket Hardware Assembly
Tightening ValuesQuantityMounting Bracket KitItem
#
—2Mounting flange1
—1Mounting arm2
20.0 +/- 1.0 Nm4M8 x20 screws3
25.0 +/- 1.0 Nm2M8 nut4
5.5 Nm to 6 Nm2Hose clamp (mast/pole mount only)5
3.0 Nm to 3.5 Nm2Set screws (mast/pole mount only)6
Introduction to Cisco Catalyst 9130 Access Point with 9104 Stadium Antenna
14
Introduction to Cisco Catalyst 9130 Access Point with 9104 Stadium Antenna
Mounting on a Wall or Ceiling Using Articulating Bracket
