Step 8 Connect the Ethernet cable to the antenna using the termination kit.
Step 9 Connect the antenna to the building ground using the grounding kit.
Mounting on a Pole or Mast

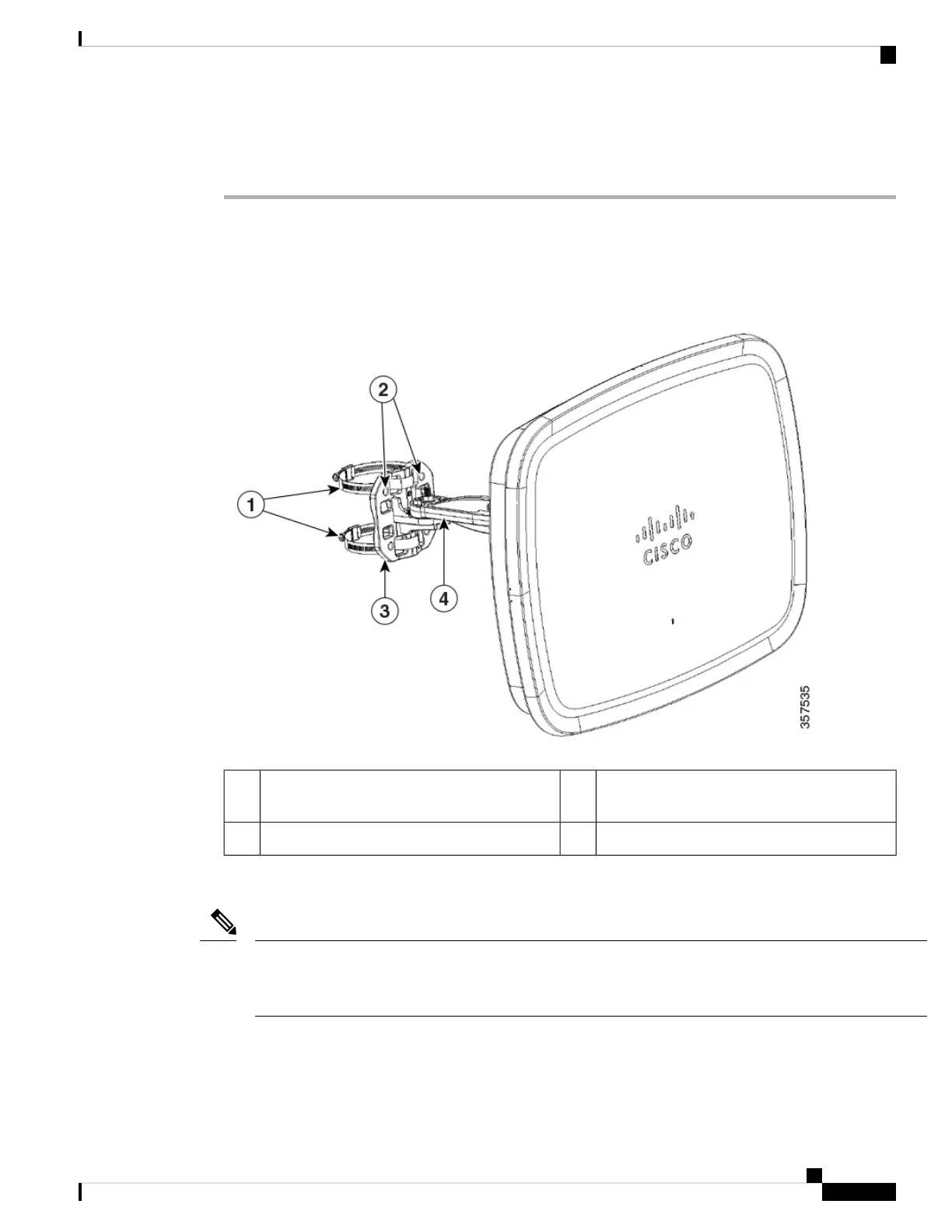

Figure 22: Antenna Bracket Hose Clamp Assembly for Pole Mounting
Articulating mount flange that is fastened to the
pole or mast using hose clamps
3Worm-gear-type hose clamp (50–135mm) for
mounting the assembly on a pole or mast
1
Articulating mount arm4Screws holes to mount the assembly to a wall.2
Before you begin
The pole or mast must be rigid enough to hold the weight of an antenna along with the associated forces
produced by wind loads. In addition, the mast must be structurally strong enough to withstand the clamping
force of the hose clamps.
Note
Introduction to Cisco Catalyst 9130 Access Point with 9104 Stadium Antenna
17
Introduction to Cisco Catalyst 9130 Access Point with 9104 Stadium Antenna
Mounting on a Pole or Mast
