Installing the Solar Shield

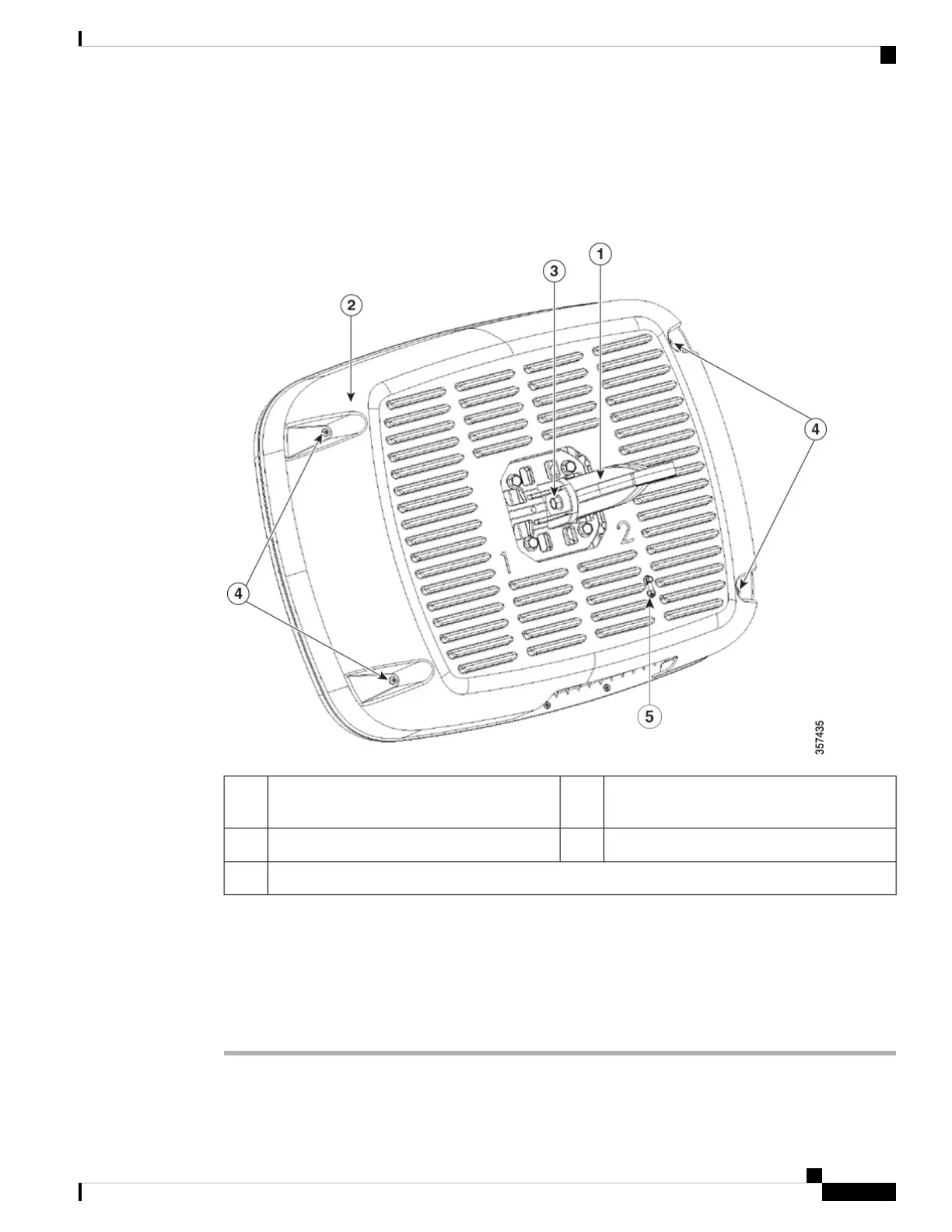

Figure 25: Solar Shield
M4 screws to install the solar shield on to the
antenna.
4Mounting arm1
Grounding point when solar shield is used5Solar Shield (C-ANT9104-CVR=)2
M8 nut3
If the installation location exposes the antenna to the sun, you may order and install the solar shield, an optional
accessory to protect the AP from the sun. Install the solar shield on the antenna using the four M4 screws
before mounting it to a wall or pole.
You may order the optional solar shield accessory using the PID C-ANT9104-CVR=.
Procedure
Step 1 Install grounding standoff included in the solar shield kit when the optional solar cover is used.
