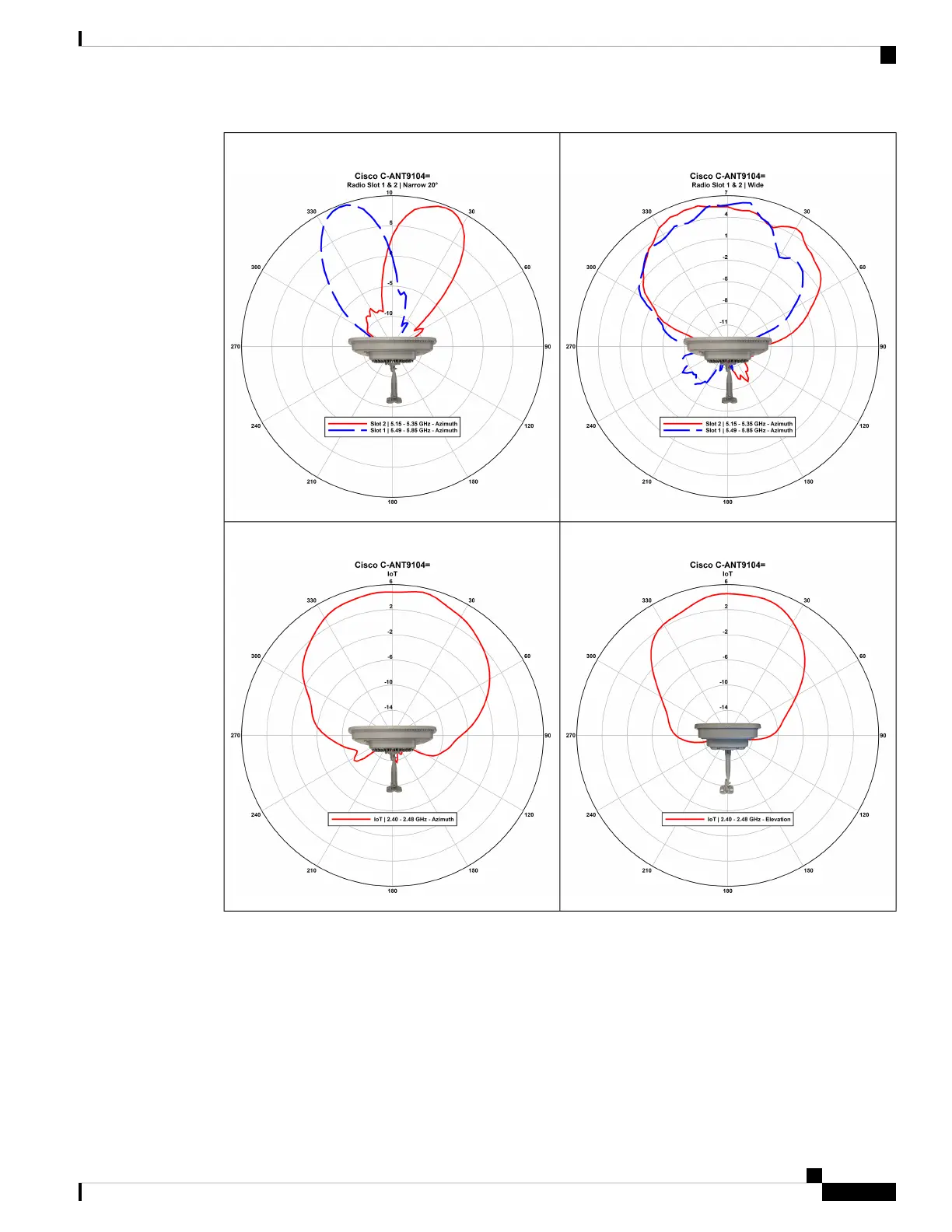

Figure 8: C9104–S1-S2 Wide Radiation Pattern (5-GHz Azimuth)Figure 7: C9104–S1-S2 Narrow 20° Pattern (5-GHz Azimuth)
Figure 10: C9104–IoT Antenna Radiation Pattern (2.4-GHz Elevation)Figure 9: C9104–IoT Antenna Radiation Pattern (2.4-GHz Azimuth)
Introduction to Cisco Catalyst 9130 Access Point with 9104 Stadium Antenna
5
Introduction to Cisco Catalyst 9130 Access Point with 9104 Stadium Antenna
Azimuth and Elevation Radiation Patterns
