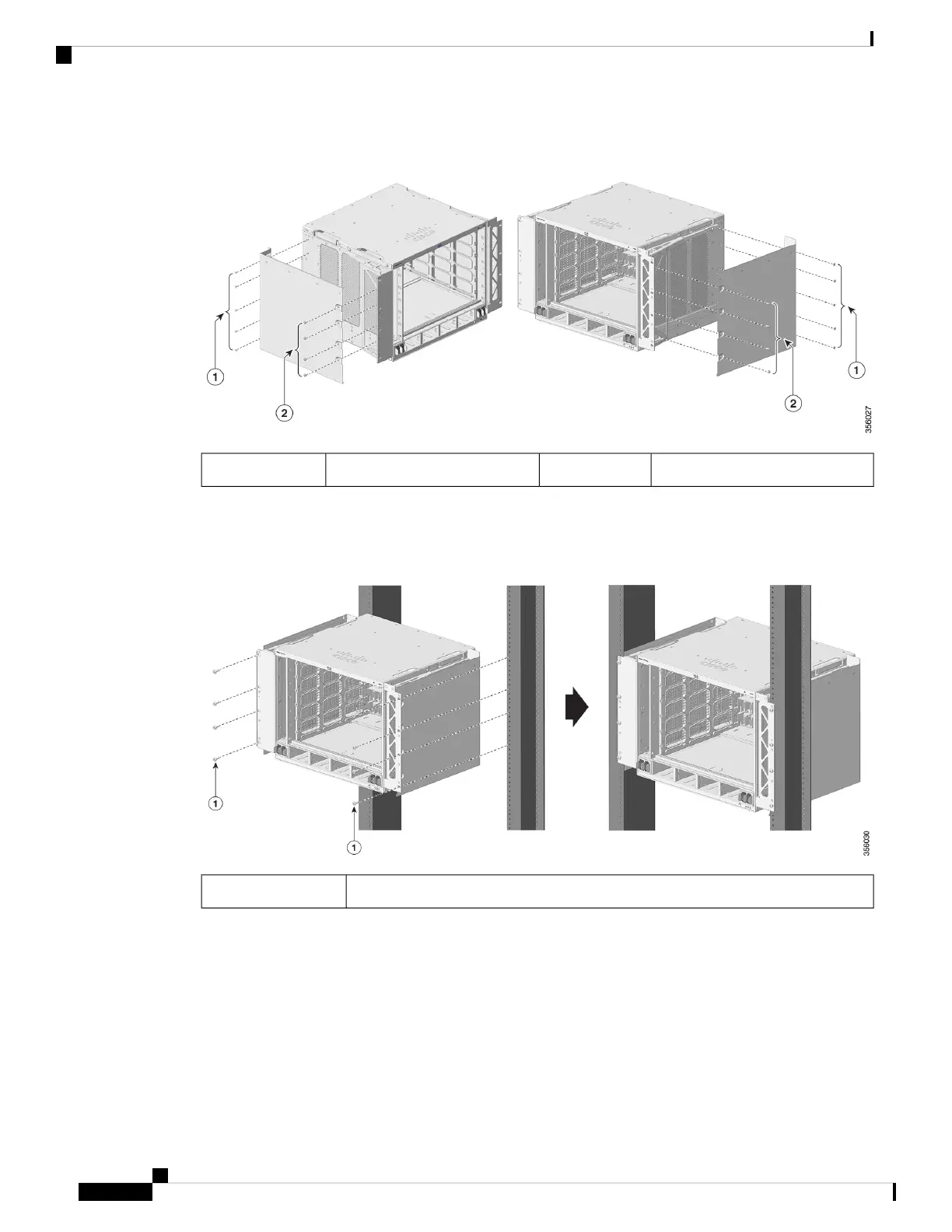

Figure 27: Install the Wall Covers
M4x12mm pan head screws2M4x5mm flat head screws1
Step 5 Secure the chassis to the rack with either 10-32 or 12-24 pan head screws from the chassis standard accessory
kit.
Figure 28: Secure the Chassis to Rack
10-32 or 12-24 pan head screws1
Step 6 Align the air filter with the top and the bottom edges of the air filter slot.
Cisco Catalyst 9600 Series Switches Hardware Installation Guide
54
Installing the Switch
Rack-Mounting the Chassis in NEBS-Compliant Mode

Cisco Catalyst 9600 Series Specifications

General

Series	Catalyst 9600 Series
Category	Switch
Switching Capacity	Up to 25.6 Tbps
Software	Cisco IOS XE
Form Factor	Modular chassis
Purpose	Enterprise campus core and distribution
Ports	10G, 25G, 40G, 100G, 400G
Redundancy	Yes, supports redundant power supplies and fans
Stacking	Virtual Stacking supported
Security	Advanced security features including MACsec encryption
Management	Cisco DNA Center, CLI, SNMP
Uplink Ports	40G, 100G
Power Supply	Redundant, hot-swappable
Operating Temperature	0°C to 45°C (32°F to 113°F)
Port Density	Up to 384 ports
Weight	Starting at 75 lbs (34 kg)
Modular Slots	Up to 6 line card slots
