Cisco Catalyst 9600 Series User Manual

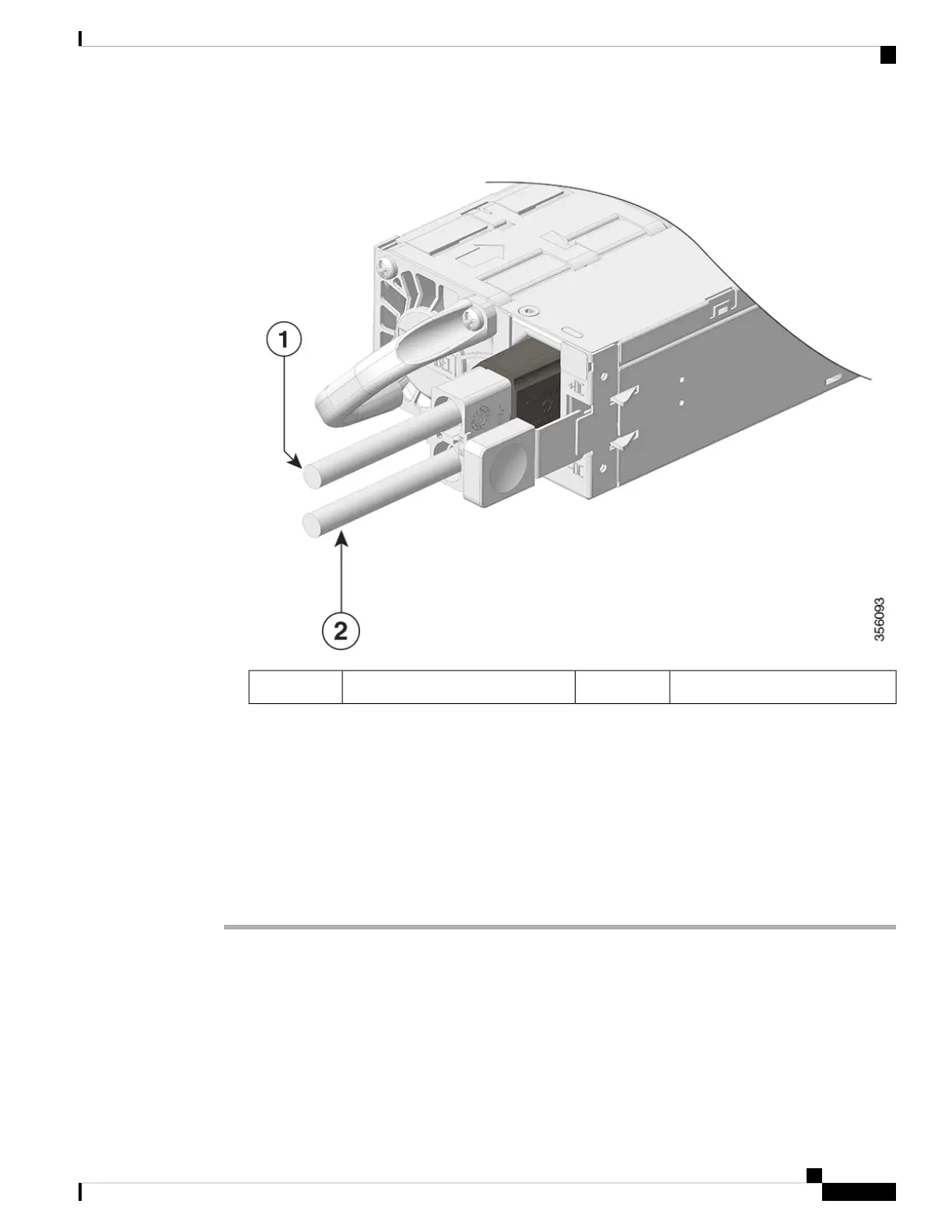

Figure 45: Attaching the Cable to the Power Source
Negative terminal2Positive terminal1
If you are using combined power mode or power supply redundancy mode, connect all the power
supplies in the chassis to the same power source. If you are using input source redundancy mode
or full redundancy mode, connect half the power supplies to one DC power source and the other
half of the power supplies to another DC power source.
Note
Step 5 Verify that the power supply is receiving power by checking that the LED is on and is green.
When you first activate the power supply, you can verify the functionality of the LED by checking that LED
turns on for a couple of seconds. If the LED is flashing amber or green, check the power connections on the
power supply and the power source.
Cisco Catalyst 9600 Series Switches Hardware Installation Guide
85
Installing a Power Supply Unit
Connecting to a DC Power Source

Cisco Catalyst 9600 Series Specifications

General

Series	Catalyst 9600 Series
Category	Switch
Switching Capacity	Up to 25.6 Tbps
Software	Cisco IOS XE
Form Factor	Modular chassis
Purpose	Enterprise campus core and distribution
Ports	10G, 25G, 40G, 100G, 400G
Redundancy	Yes, supports redundant power supplies and fans
Stacking	Virtual Stacking supported
Security	Advanced security features including MACsec encryption
Management	Cisco DNA Center, CLI, SNMP
Uplink Ports	40G, 100G
Power Supply	Redundant, hot-swappable
Operating Temperature	0°C to 45°C (32°F to 113°F)
Port Density	Up to 384 ports
Weight	Starting at 75 lbs (34 kg)
Modular Slots	Up to 6 line card slots
