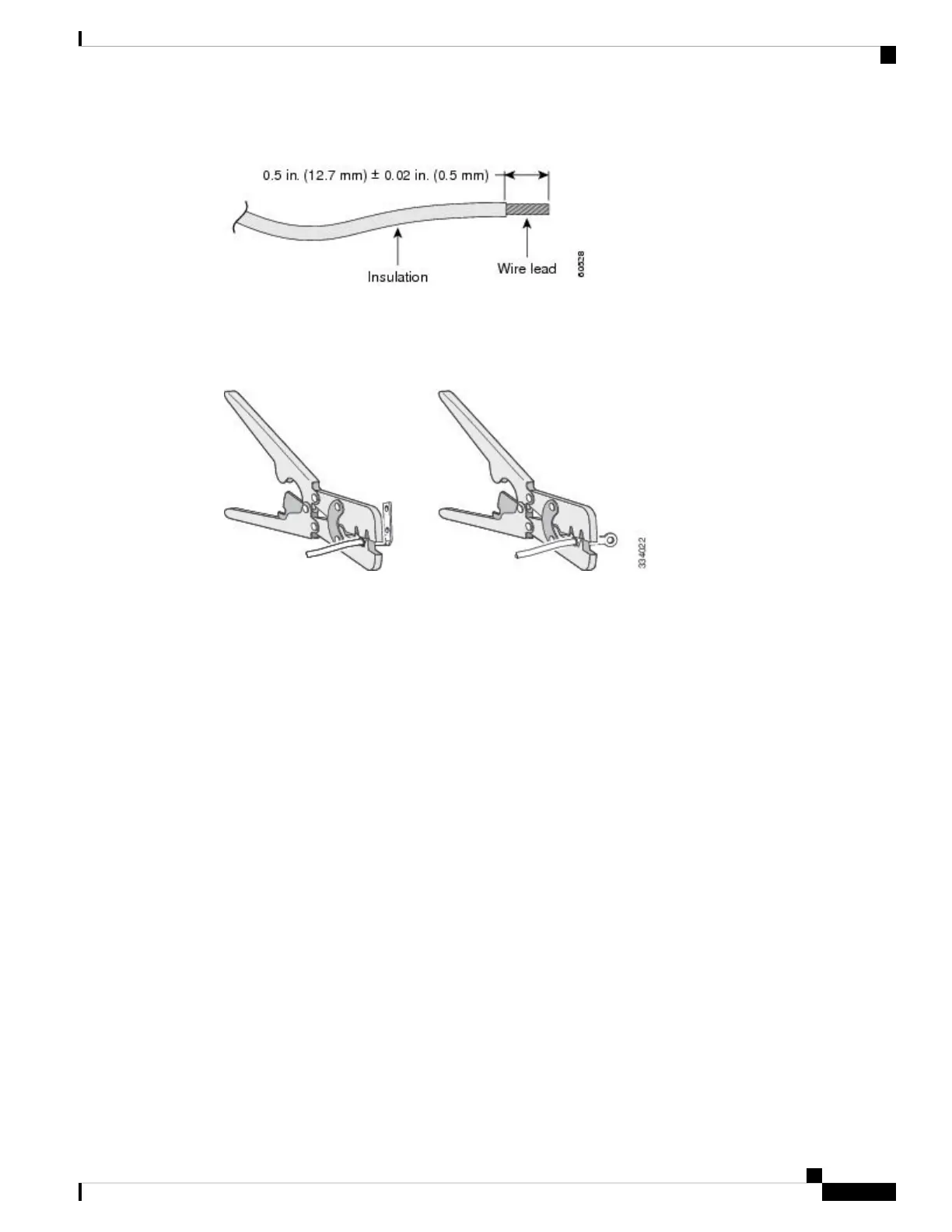

Figure 52: Stripping the Ground Wire

Step 3 Slide the open end of the ground lug over the exposed area of the wire.

Step 4 Using a Panduit crimping tool, crimp the ground lug to the wire.

Figure 53: Crimping the Ground Lug

Step 5 Use the ground screw to attach the single-hole ground lug to the switch rear panel. Use two ground screws to

attach the dual-hole ground lug to the switch rear panel.

Cisco Catalyst 9300 Series Switches Hardware Installation Guide

Installing a Power Supply

Grounding the Switch
