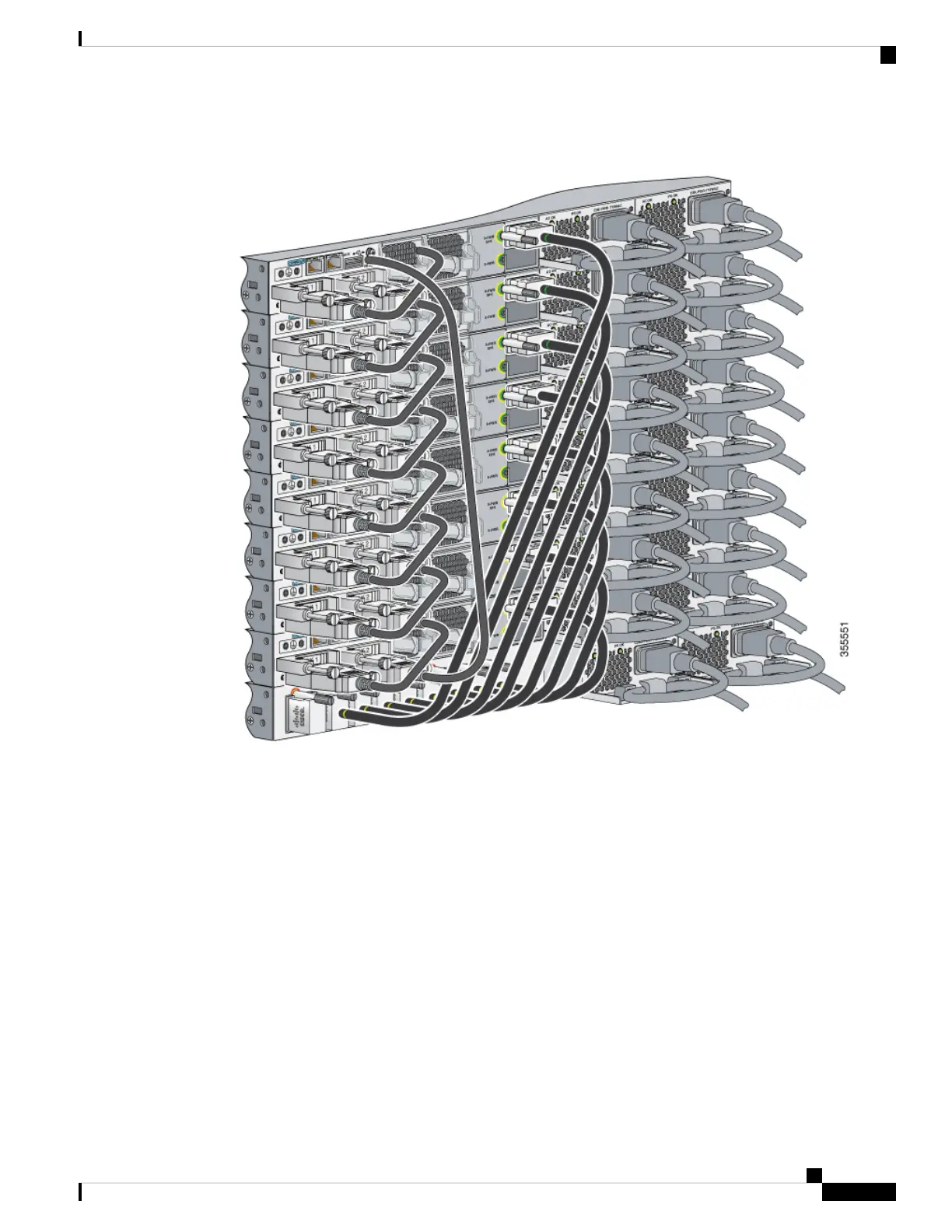

Figure 26: StackPower Star Topology

StackPower Partitioning Examples

These figures show StackPower stacks of switches with failover conditions.

In the following figure, the StackPower cable 2 is faulty. This is considered a broken ring and is a fault

condition. Power is still shared across the stack, but this condition will place a limitation on power budgeting

and the number of high priority ports it can protect in the case of any further failures such as failure of power

supply, AC mains, StackPower port and so on. StackPower is not intended for secondary failures and hence

restoration of the failed component or power should be done immediately.

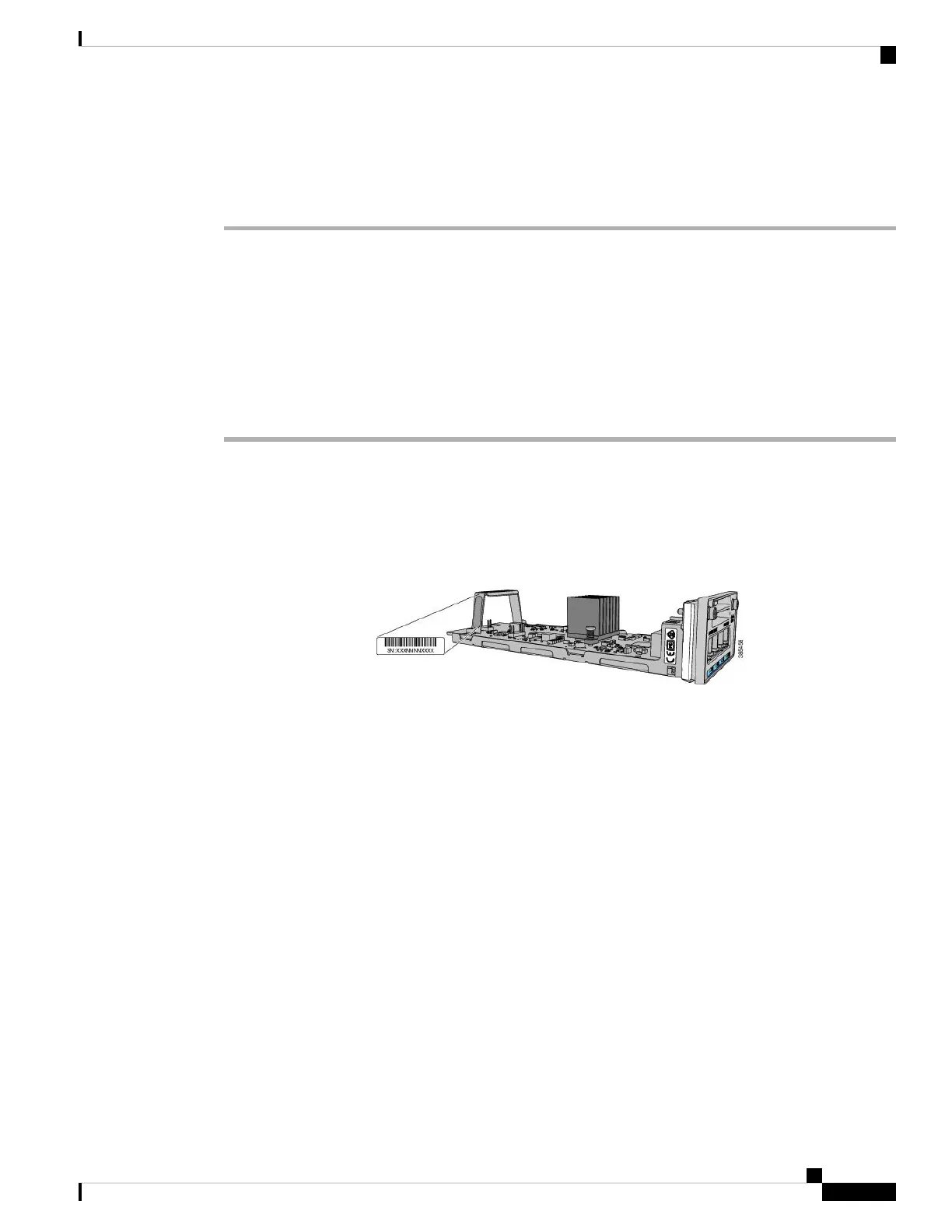

Cisco Catalyst 9300 Series Switches Hardware Installation Guide

Installing a Switch

StackPower Partitioning Examples
