Cisco Catalyst C9300-48P User Manual

The 10/100/1000 Ethernet management port is an RJ-45 connector that should be connected to a Windows
workstation or a terminal server. Do not connect this port to another port in the same switch or to any port
within the same switch stack.
Note
The following table shows the Ethernet management port LED colors and their meanings.
Table 17: Ethernet Management Port LED
DescriptionColor
Link up but no activity.Green
Link up and activity.Blinking green
Link down.Off
RJ-45 Console Port
The RJ-45 console port connection uses the optional RJ-45-to-DB-9 female cable.
The following table shows the RJ-45 console port LED colors and their meanings.
Table 18: RJ-45 Console LED
DescriptionColor
RJ-45 console port is active.Green
The port is not active.Off
Network Configurations
See the switch software configuration guide for network configuration concepts and examples of using the
switch to create dedicated network segments and interconnecting the segments through Fast Ethernet and
Gigabit Ethernet connections.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
30
Product Overview
RJ-45 Console Port

Cisco Catalyst C9300-48P Specifications

General

Model	C9300-48P
Ports	48x 10/100/1000 PoE+ ports
Switching Capacity	176 Gbps

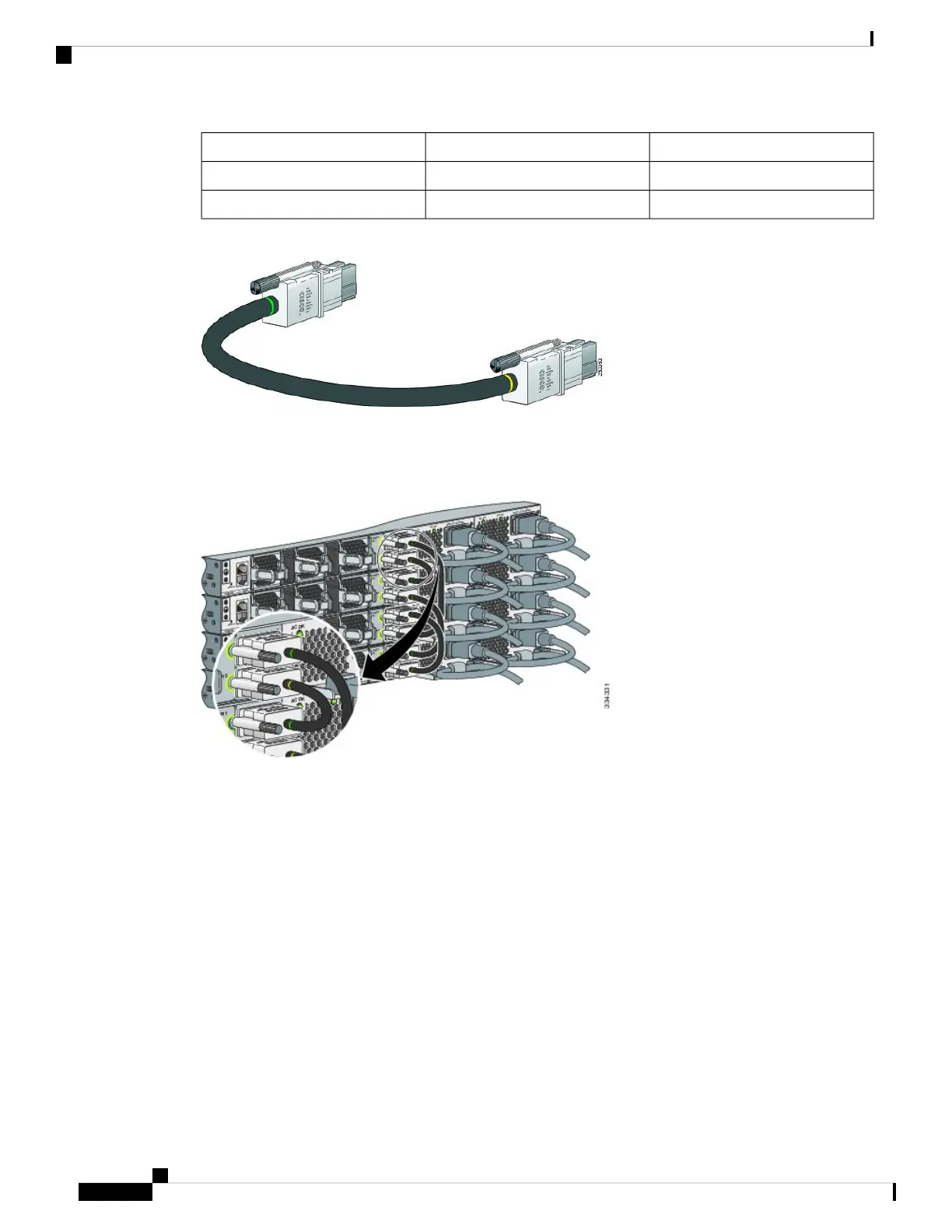

Stacking Bandwidth	480 Gbps
Stackable	Yes
DRAM	8 GB
Flash Memory	16 GB
Power Device	Internal power supply
Uplink Interfaces	4 x 10G
Power Supply	715W AC
Dimensions	1.73 x 17.5 x 17.5 inches
Input Voltage	100 to 240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
