Cisco Catalyst C9300-48P User Manual

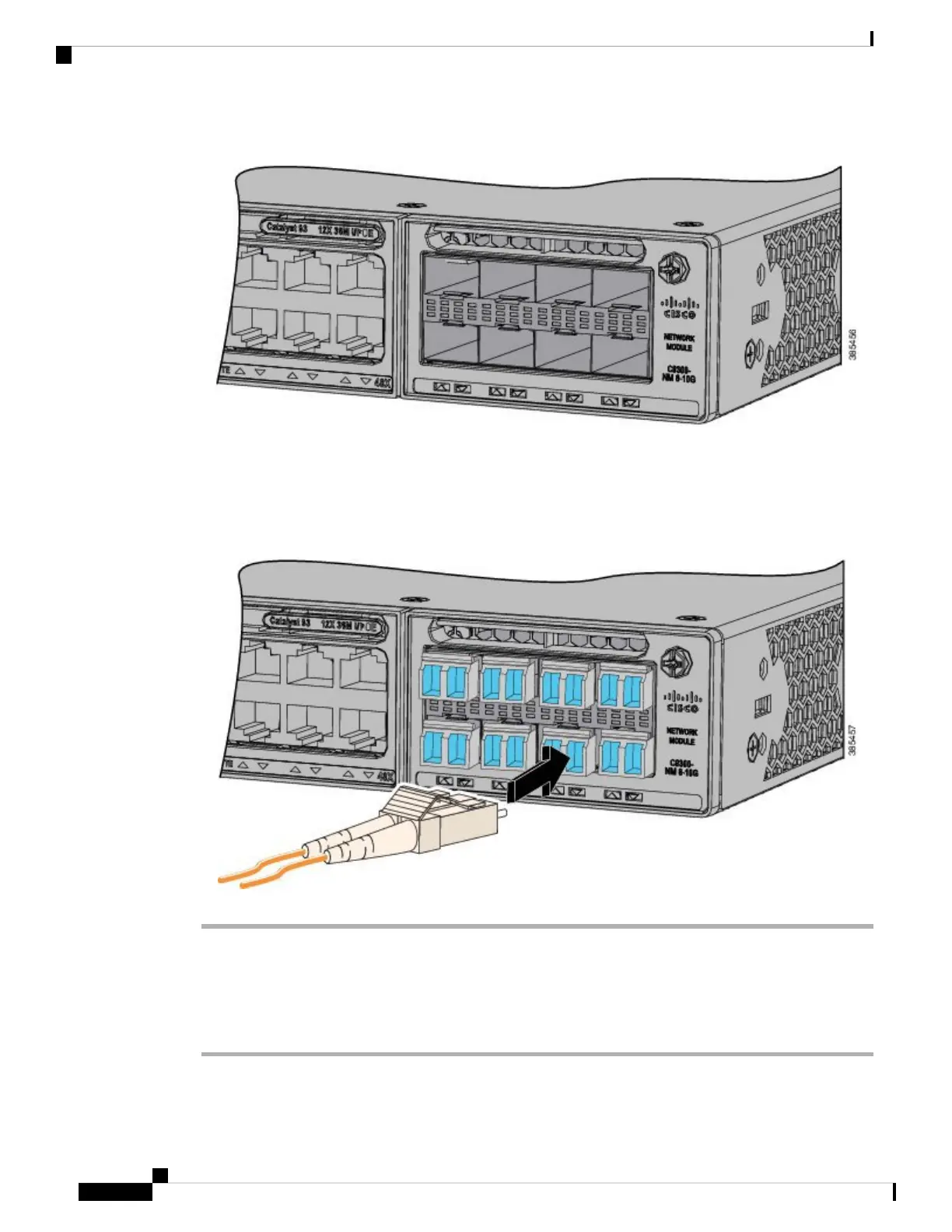

Figure 43: Installing a Pluggable Transceiver Module in the Network Module
Step 5 If the module has a bale-clasp latch, close it to lock the module in place.
Step 6 Remove the dust plugs and save.
Step 7 Connect the transceiver cables.
Figure 44: Network Module with Pluggable Transceiver Modules Installed
Removing Cisco Pluggable Transceiver Modules
Procedure
Step 1 Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
78
Installing a Network Module
Removing Cisco Pluggable Transceiver Modules

Cisco Catalyst C9300-48P Specifications

General

Model	C9300-48P
Ports	48x 10/100/1000 PoE+ ports
Switching Capacity	176 Gbps
Stacking Bandwidth	480 Gbps
Stackable	Yes
DRAM	8 GB
Flash Memory	16 GB
Power Device	Internal power supply
Uplink Interfaces	4 x 10G
Power Supply	715W AC
Dimensions	1.73 x 17.5 x 17.5 inches
Input Voltage	100 to 240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
