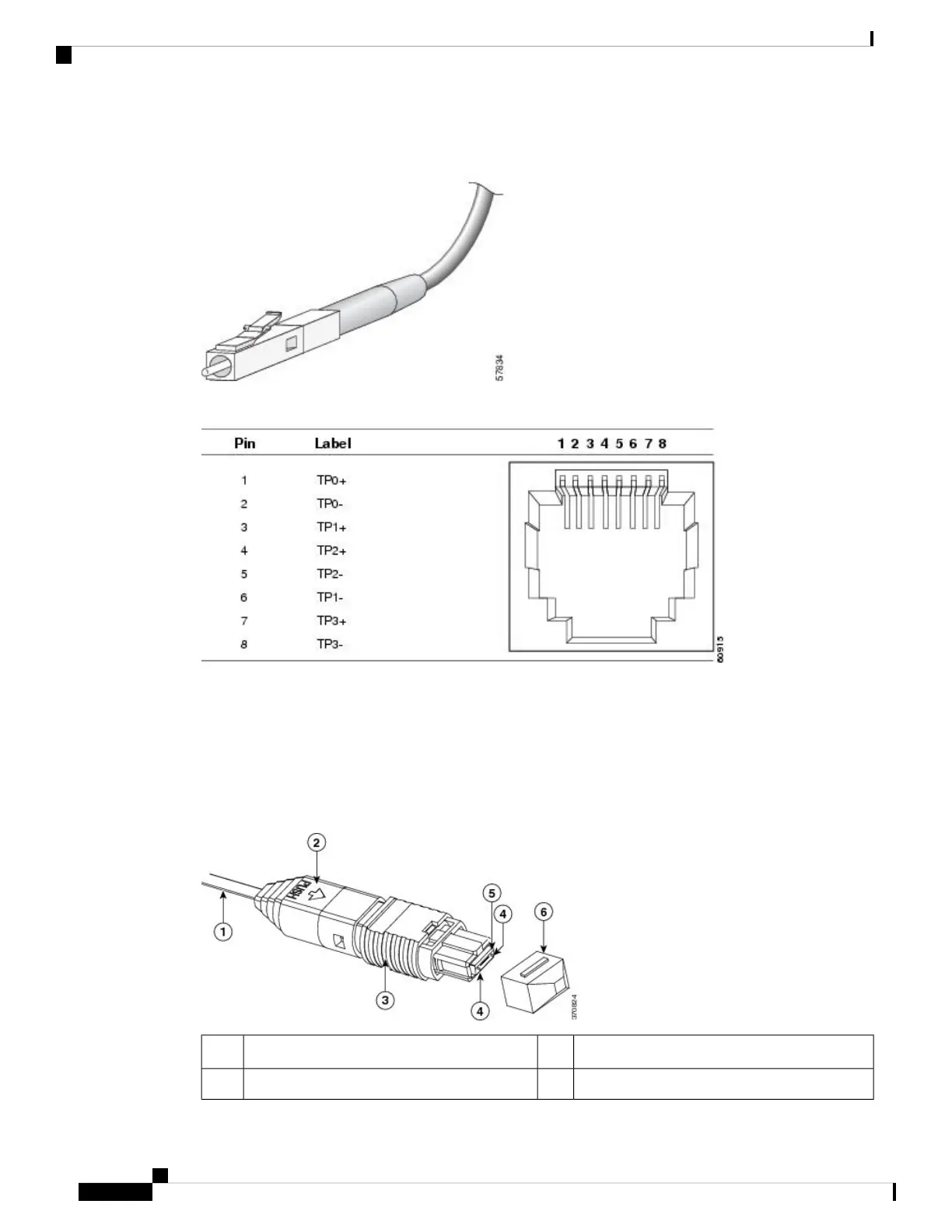

Figure 69: Simplex LC Cable Connector
Figure 70: Copper SFP Module LC Connector
MPO-12 Connectors
The multi-fiber push on (MPO) connector is a 12-fiber optical connector with a footprint similar to the SC
simplex connector. The MPO connector conforms to the TIA/EIA-604-5 intermateability standard. It is used
for establishing 40G and 100G optical parallel connections.
Figure 71: MPO-12 Fiber-Optic Connector
Guide pins412-fiber ribbon1
Ferrule5Boot2
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
122
Connector and Cable Specifications
MPO-12 Connectors

Cisco Catalyst C9300-48UXM Specifications

General

Model	C9300-48UXM
Product Type	Switch
Form Factor	Rack-mountable
PoE+	Yes
Stacking Bandwidth	480 Gbps
Flash Memory	16 GB
MAC Address Table Size	32, 000 entries
Input Voltage	100-240 VAC
Uplink Interfaces	4 x 10G SFP+
Weight	18.5 lbs
Jumbo Frame Support	Yes
VLANs	4096
Power over Ethernet (PoE)	Yes
Stacking	Yes
Operating Temperature	0 to 45°C
Operating Humidity	10 - 95% (non-condensing)
Dimensions	44.5 x 44.5 x 4.4 cm
