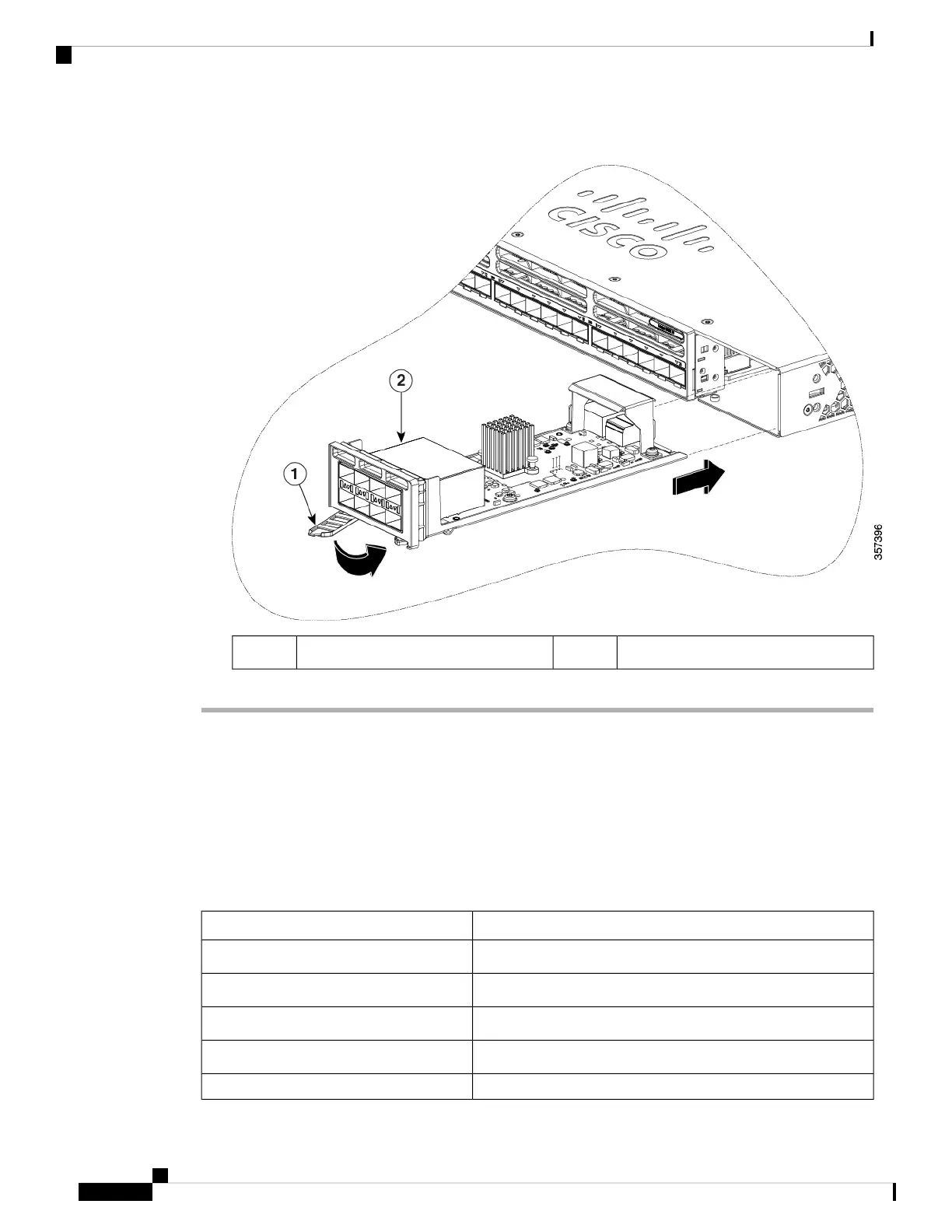

Figure 42: Installing the C9300X Network Module in the Switch
Network module (C9300X-NM-8Y)2Ejector1
Network Module Port Configurations
C9300-NM-2Q Module
If you use a 40G QSFP module, the ports default to 40G interfaces. In this case, the 10G interfaces are displayed
but not used.
Table 23: C9300-NM-2Q Module with 40G QSFP Module
ActionInterface
Configure this interfaceFortyGigabitEthernet1/1/1
Configure this interfaceFortyGigabitEthernet1/1/2
DisregardTenGigabitEthernet1/1/1
DisregardTenGigabitEthernet1/1/2
DisregardTenGigabitEthernet1/1/3
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
72
Installing a Network Module
Network Module Port Configurations

Cisco Catalyst C9300-48UXM Specifications

General

Model	C9300-48UXM
Product Type	Switch
Form Factor	Rack-mountable
PoE+	Yes
Stacking Bandwidth	480 Gbps
Flash Memory	16 GB
MAC Address Table Size	32, 000 entries
Input Voltage	100-240 VAC
Uplink Interfaces	4 x 10G SFP+
Weight	18.5 lbs
Jumbo Frame Support	Yes
VLANs	4096
Power over Ethernet (PoE)	Yes
Stacking	Yes
Operating Temperature	0 to 45°C
Operating Humidity	10 - 95% (non-condensing)
Dimensions	44.5 x 44.5 x 4.4 cm
