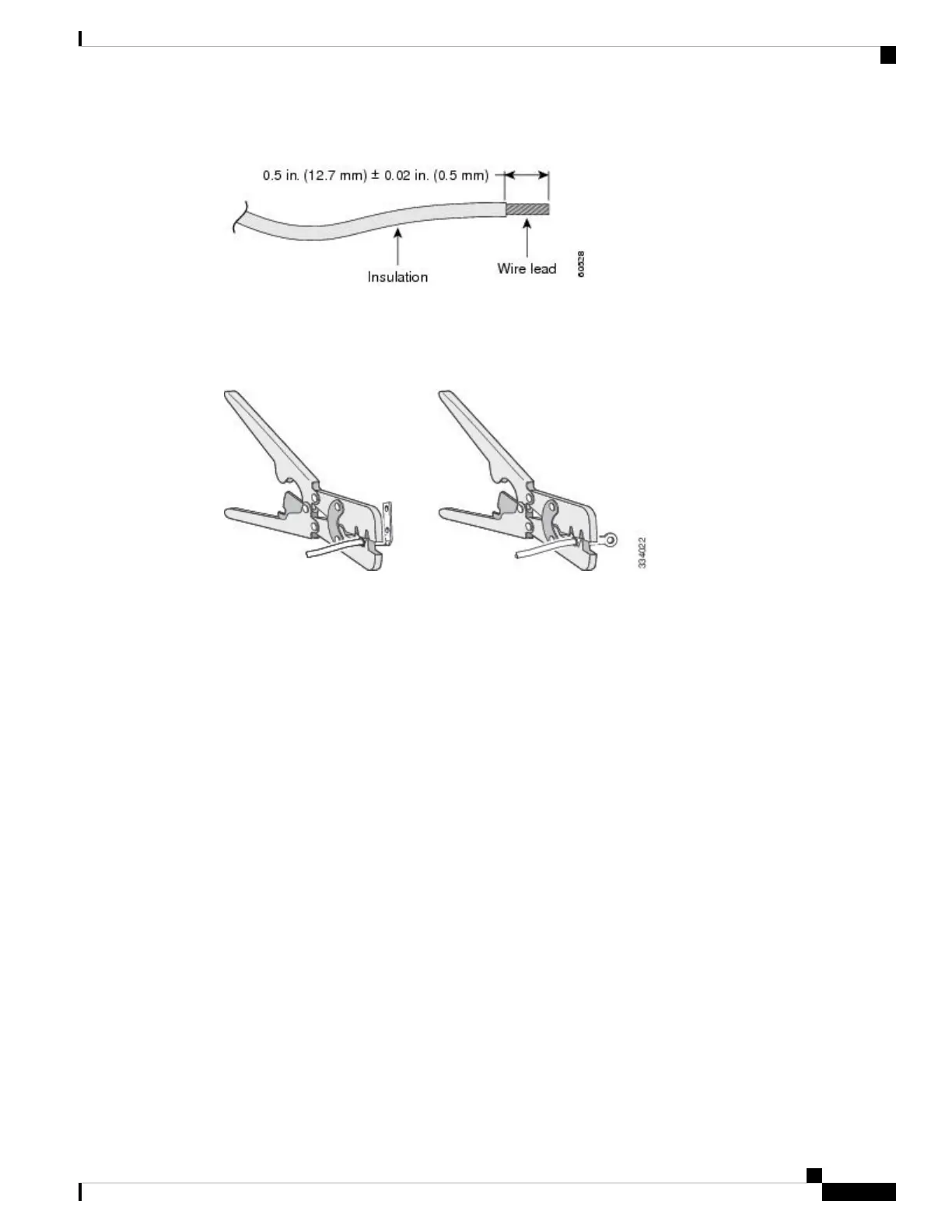

Figure 52: Stripping the Ground Wire
Step 3 Slide the open end of the ground lug over the exposed area of the wire.
Step 4 Using a Panduit crimping tool, crimp the ground lug to the wire.
Figure 53: Crimping the Ground Lug
Step 5 Use the ground screw to attach the single-hole ground lug to the switch rear panel. Use two ground screws to
attach the dual-hole ground lug to the switch rear panel.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
91
Installing a Power Supply
Grounding the Switch

Cisco Catalyst C9300-48UXM Specifications

General

Model	C9300-48UXM
Product Type	Switch
Form Factor	Rack-mountable
PoE+	Yes
Stacking Bandwidth	480 Gbps
Flash Memory	16 GB
MAC Address Table Size	32, 000 entries
Input Voltage	100-240 VAC
Uplink Interfaces	4 x 10G SFP+
Weight	18.5 lbs
Jumbo Frame Support	Yes
VLANs	4096
Power over Ethernet (PoE)	Yes
Stacking	Yes
Operating Temperature	0 to 45°C
Operating Humidity	10 - 95% (non-condensing)
Dimensions	44.5 x 44.5 x 4.4 cm
