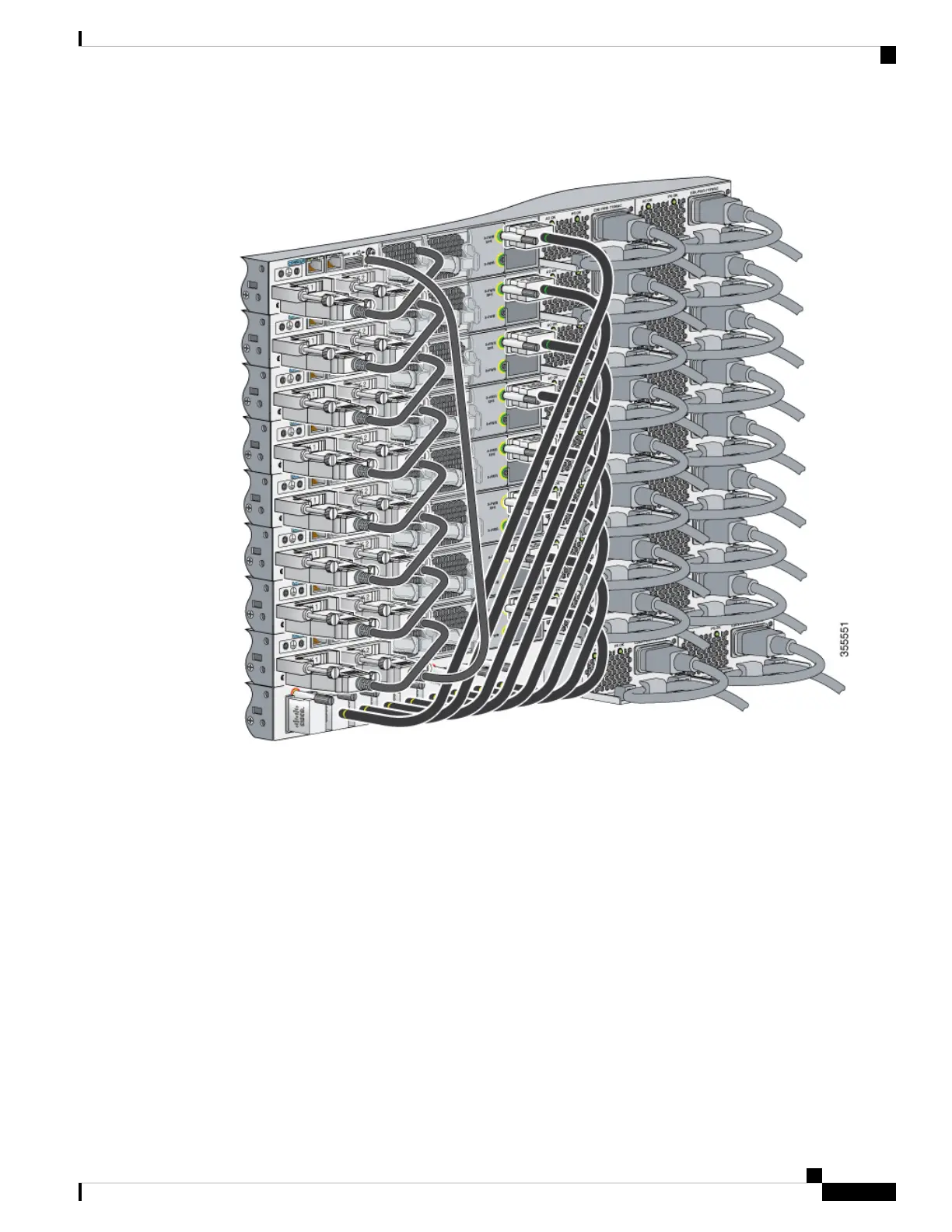

Figure 26: StackPower Star Topology
StackPower Partitioning Examples
These figures show StackPower stacks of switches with failover conditions.
In the following figure, the StackPower cable 2 is faulty. This is considered a broken ring and is a fault
condition. Power is still shared across the stack, but this condition will place a limitation on power budgeting
and the number of high priority ports it can protect in the case of any further failures such as failure of power
supply, AC mains, StackPower port and so on. StackPower is not intended for secondary failures and hence
restoration of the failed component or power should be done immediately.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
53
Installing a Switch
StackPower Partitioning Examples

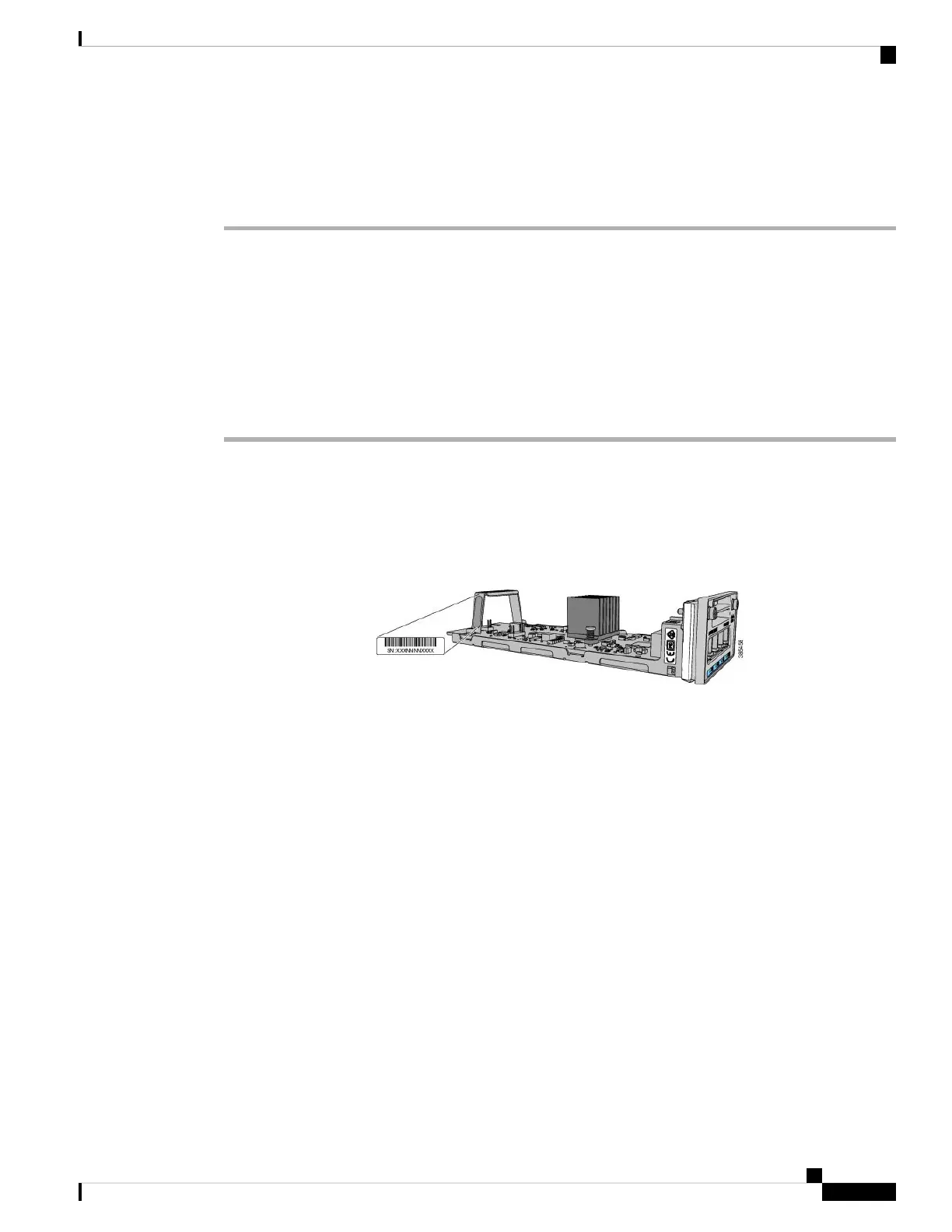

Cisco Catalyst C9300-48UXM Specifications

General

Model	C9300-48UXM
Product Type	Switch
Form Factor	Rack-mountable
PoE+	Yes
Stacking Bandwidth	480 Gbps
Flash Memory	16 GB
MAC Address Table Size	32, 000 entries
Input Voltage	100-240 VAC
Uplink Interfaces	4 x 10G SFP+
Weight	18.5 lbs
Jumbo Frame Support	Yes
VLANs	4096
Power over Ethernet (PoE)	Yes
Stacking	Yes
Operating Temperature	0 to 45°C
Operating Humidity	10 - 95% (non-condensing)
Dimensions	44.5 x 44.5 x 4.4 cm
