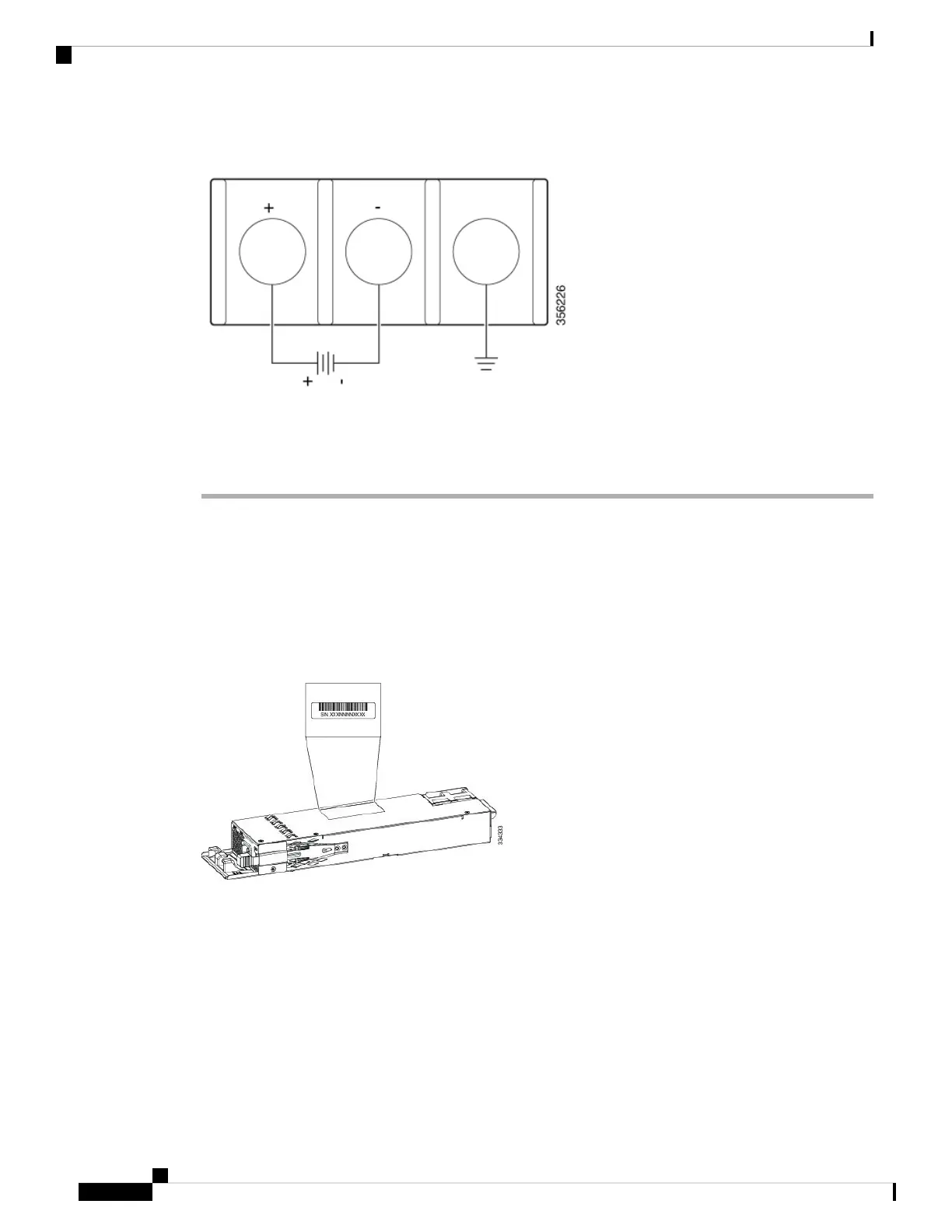

Figure 56: DC Connection with Ground
Step 4 Torque all terminal block screws to 11 lbf-in.
Step 5 Replace the terminal block safety cover and turn on the power at the power source.
Step 6 Confirm that the power supply DC OK and PS OK LEDs are green.
Finding the Power Supply Module Serial Number
If you contact Cisco Technical Assistance regarding a power supply module, you need to know the serial
number. See the following illustrations to find the serial number. You can also use the CLI to find out the
serial number.
Figure 57: 1100-W AC Power Supply Serial Number
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
94
Installing a Power Supply
Finding the Power Supply Module Serial Number

Cisco Catalyst C9300-48UXM Specifications

General

Model	C9300-48UXM
Product Type	Switch
Form Factor	Rack-mountable
PoE+	Yes
Stacking Bandwidth	480 Gbps
Flash Memory	16 GB
MAC Address Table Size	32, 000 entries
Input Voltage	100-240 VAC
Uplink Interfaces	4 x 10G SFP+
Weight	18.5 lbs
Jumbo Frame Support	Yes
VLANs	4096
Power over Ethernet (PoE)	Yes
Stacking	Yes
Operating Temperature	0 to 45°C
Operating Humidity	10 - 95% (non-condensing)
Dimensions	44.5 x 44.5 x 4.4 cm
