The 10/100/1000 Ethernet management port is an RJ-45 connector that should be connected to a Windows
workstation or a terminal server. Do not connect this port to another port in the same switch or to any port
within the same switch stack.
Note
The following table shows the Ethernet management port LED colors and their meanings.
Table 17: Ethernet Management Port LED
DescriptionColor
Link up but no activity.Green
Link up and activity.Blinking green
Link down.Off
RJ-45 Console Port
The RJ-45 console port connection uses the optional RJ-45-to-DB-9 female cable.
The following table shows the RJ-45 console port LED colors and their meanings.
Table 18: RJ-45 Console LED
DescriptionColor
RJ-45 console port is active.Green
The port is not active.Off
Network Configurations
See the switch software configuration guide for network configuration concepts and examples of using the
switch to create dedicated network segments and interconnecting the segments through Fast Ethernet and
Gigabit Ethernet connections.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
30
Product Overview
RJ-45 Console Port

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cisco Catalyst C9300-48UXM and is the answer not in the manual?

Cisco Catalyst C9300-48UXM Specifications

General IconGeneral
ModelC9300-48UXM
Product TypeSwitch
Form FactorRack-mountable
PoE+Yes

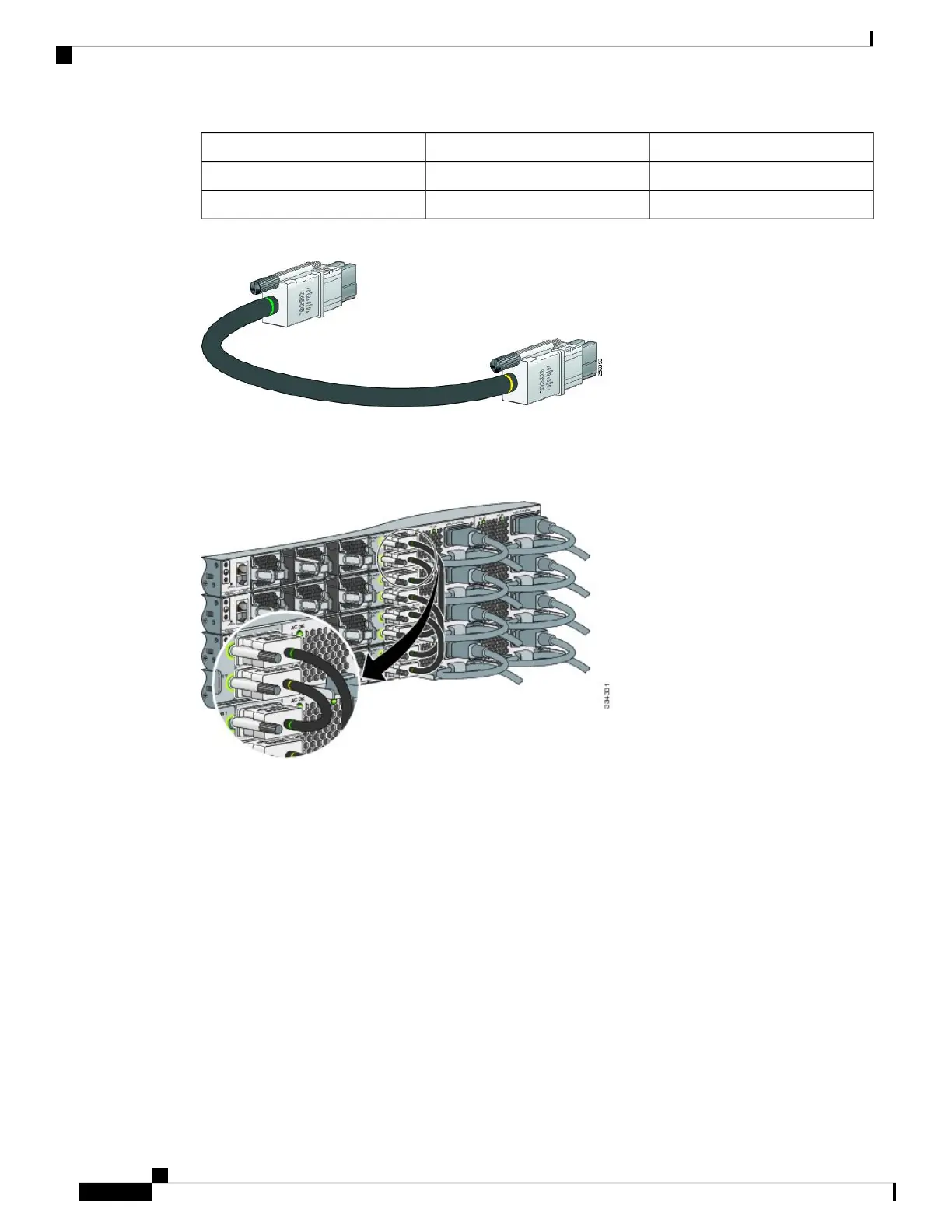

Stacking Bandwidth480 Gbps
Flash Memory16 GB
MAC Address Table Size32, 000 entries
Input Voltage100-240 VAC
Uplink Interfaces4 x 10G SFP+
Weight18.5 lbs
Jumbo Frame SupportYes
VLANs4096
Power over Ethernet (PoE)Yes
StackingYes
Operating Temperature0 to 45°C
Operating Humidity10 - 95% (non-condensing)
Dimensions44.5 x 44.5 x 4.4 cm
