Dust cap6Housing assembly3
You have to attach an adapter cable to this connector.
Note
Console Port
The switch has two console ports: a USB 5-pin mini-Type B port on the front panel and an RJ-45 console
port on the rear panel.

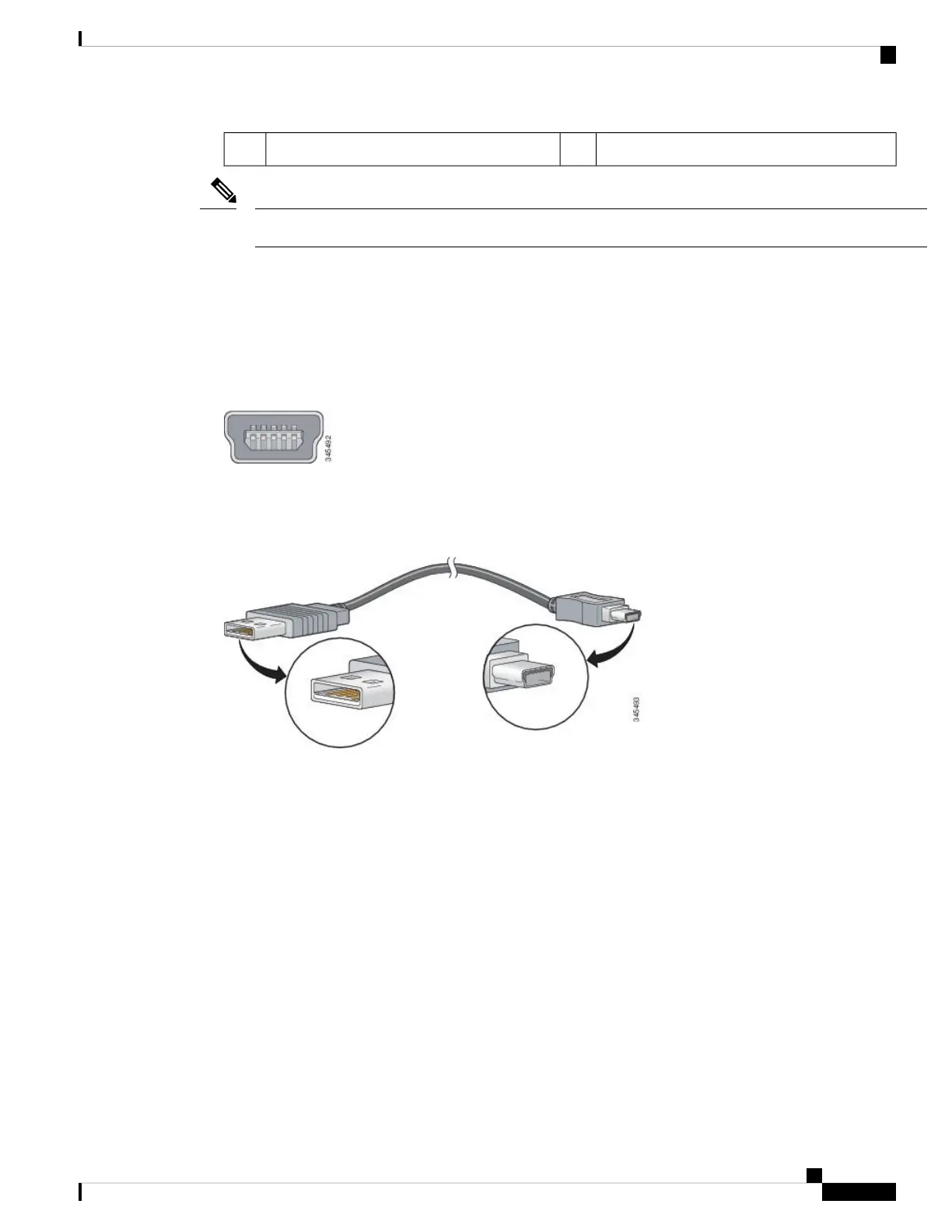

Figure 72: USB Mini-Type B Port
The USB console port uses a USB Type A to 5-pin mini-Type B cable. The USB Type A-to-USB mini-Type
B cable is not supplied. You can order an accessory kit (part number 800-33434) that contains this cable.
Figure 73: USB Type A-to-USB 5-Pin Mini-Type B Cable
The RJ-45 console port uses an 8-pin RJ-45 connection. The supplied RJ-45-to-DB-9 adapter cable is used
to connect the console port of the switch to a console PC. You need to provide a RJ-45-to-DB-25 female DTE
adapter if you want to connect the switch console port to a terminal.
Cables and Adapters
StackWise Accessories
All Cisco stack cables are halogen-free. The StackWise cables of lengths 0.5 m, 1 m and 3 m supported. You
can order the stacking cables from your Cisco sales representative.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
123
Connector and Cable Specifications
Console Port

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cisco Catalyst C9300-48UXM and is the answer not in the manual?

Cisco Catalyst C9300-48UXM Specifications

General IconGeneral
ModelC9300-48UXM
Product TypeSwitch
Form FactorRack-mountable
PoE+Yes
Stacking Bandwidth480 Gbps
Flash Memory16 GB
MAC Address Table Size32, 000 entries
Input Voltage100-240 VAC
Uplink Interfaces4 x 10G SFP+
Weight18.5 lbs
Jumbo Frame SupportYes
VLANs4096
Power over Ethernet (PoE)Yes
StackingYes
Operating Temperature0 to 45°C
Operating Humidity10 - 95% (non-condensing)
Dimensions44.5 x 44.5 x 4.4 cm
