Cisco CRS-1 Carrier Routing System to Cisco CRS-3 Carrier Routing System Migration Guide
OL-13669-03
Chapter 1 Migrating to a Cisco CRS-3 Carrier Routing System
How to Migrate to a Cisco CRS-3 Carrier Routing System (4-Slot)
Caution Use the slide-assistance arm to slide cards from the card carrier. DO NOT LIFT CARDS BY THE
SLIDE-ASSISTANCE ARM! Rotate cards onto their vertical axes, then lift them from the bottom, using
the slide-assistance arm only as an aid for balance.
Required Tools and Equipment
You need the following tools to perform this task:
• ESD-preventive wrist strap
• Large Phillips screwdriver
Steps
To remove an CRS-1 fabric card, see Figure 1-12 and follow these steps:

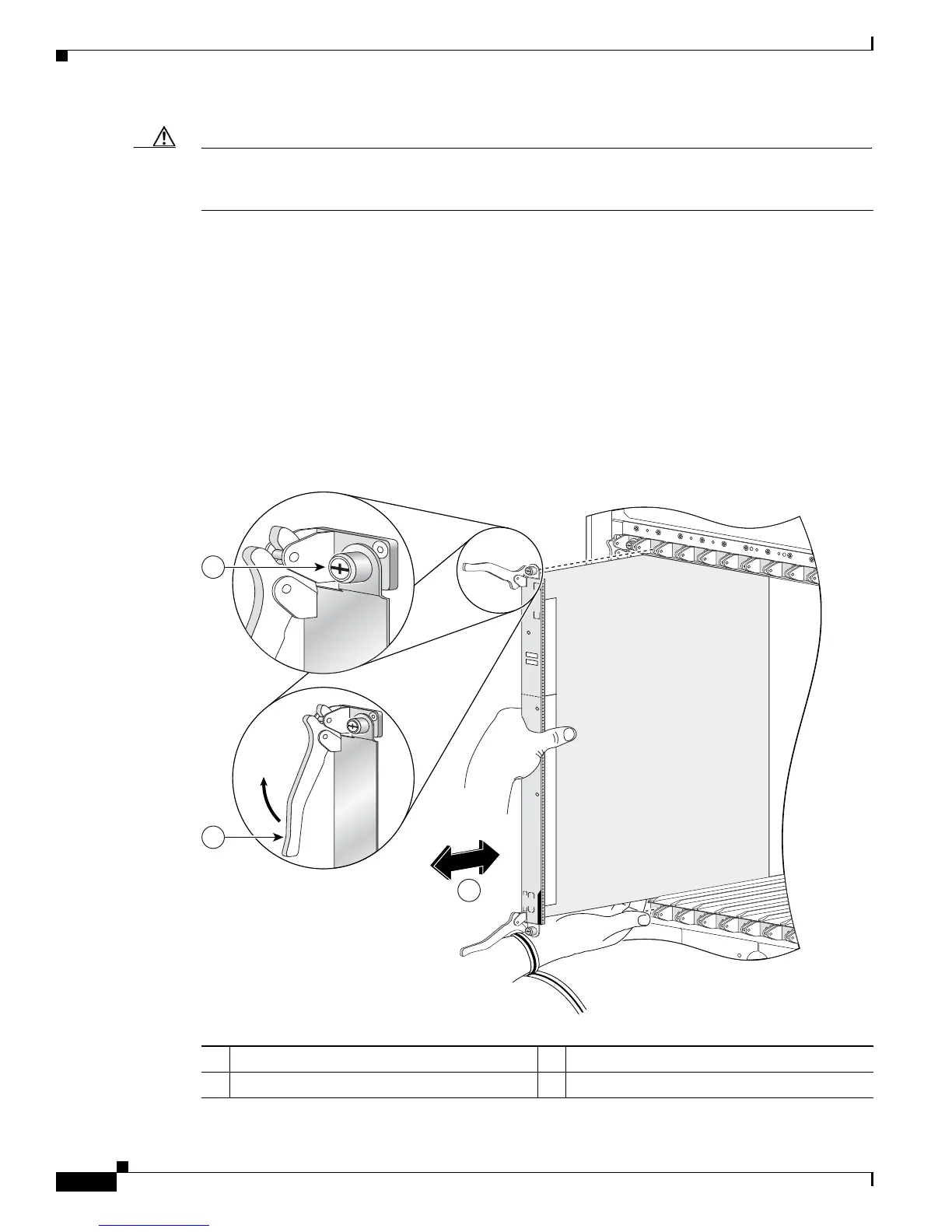

Figure 1-12 Removing a CRS-1 Fabric Card
1 Captive screw 3 Direction of installation or removal
2 Ejector lever
STATUS
PID/VID
CRS-FCC-SFC
CLEI
SN:
129870
1
3
2
