Running Express Setup
4. Ensure the IE 1000 is in default factory mode.
Skip to next step if freshly out of the box

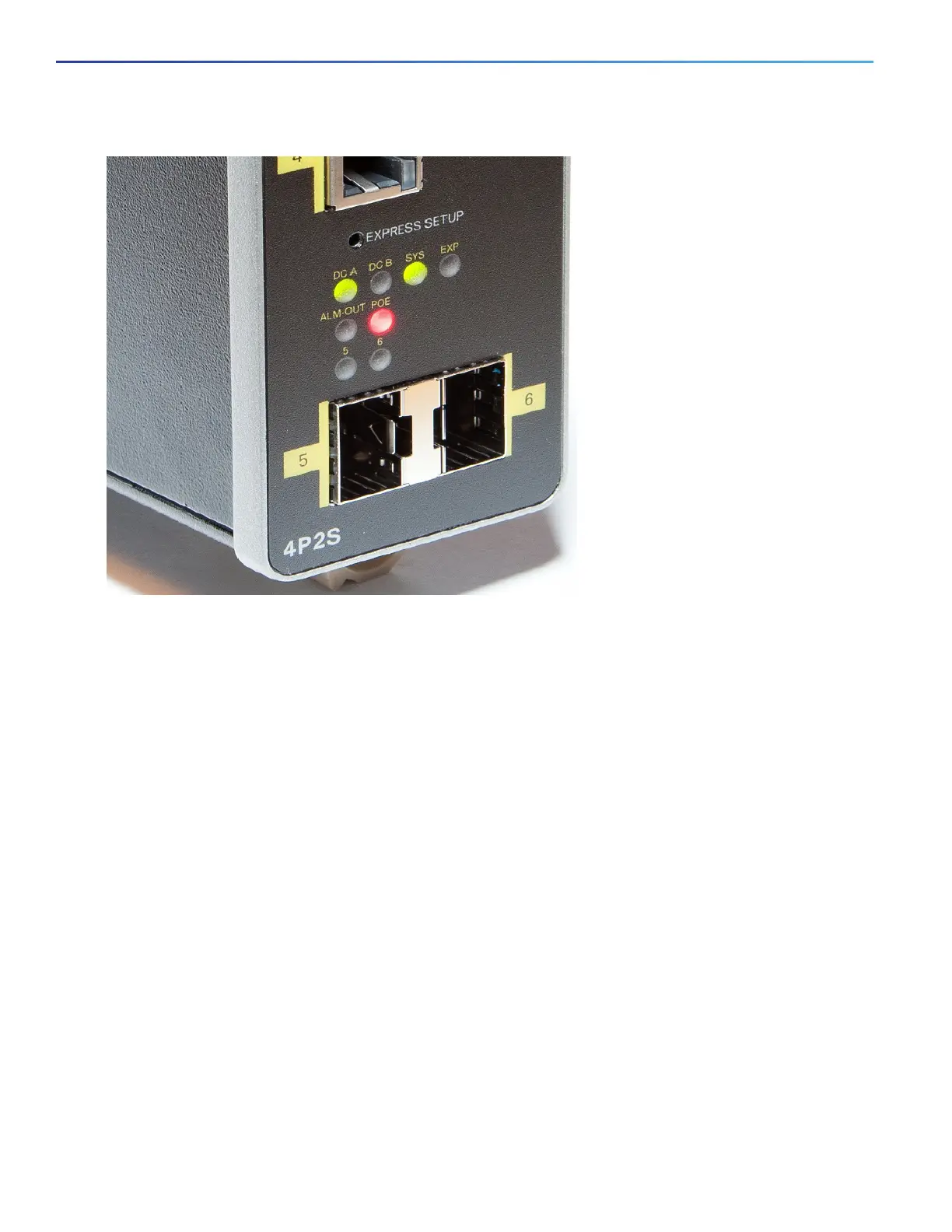

a. If not freshly out of the package, use a paper clip to reset the switch by depressing the express setup button for
15 - 20 seconds until the EXP LED alternates green - red; then release the paper clip.
b. Switch will automatically reboot
5. Ensure no data port is connected to the switch.
Note: During Express Setup, the switch acts as a DHCP server.
— Ensure the computer connected to switch is configured to receive an IP address from the DHCP server.
6. Insert paper clip into express setup button for 1-2 seconds
— When released, EXP LED starts flashing green.
7. Connect computer to port Fa 1/1, LED continues to blink
8. Ensure the computer has received the IP Address 192.168.1.1,
9. Point browser to http://192.168.1.254
10. Leave the username blank and enter the default password, cisco.
NoteThe Express Setup window appears.
a. Troubleshooting: If the Express Setup window does not appear, make sure that any pop-up blockers or proxy
settings on your browser are disabled and that any wireless client is disabled on your computer.

Cisco IE 1000 Specifications

General

Category	Switch
Mounting	DIN-rail or wall mounting
Dimensions	90 x 135 x 55 mm (3.54 x 5.31 x 2.17 in)
DRAM	256 MB
Flash Memory	64 MB
Model	IE-1000
Ports	8 or 16 10/100 Mbps ports
Uplink Ports	2 Gigabit Ethernet uplink ports
Operating Temperature	-40°C to 70°C
Power Input	Dual DC power input
Management	Web-based, CLI, SNMP
Total Ports	Varies by model (5, 8, or 16 ports)
Power Supply	Internal
Weight	1.1 lb
