Cisco IE 1000 User Manual

29
Running Express Setup
11. Enter all entries in English letters and Arabic numbers.

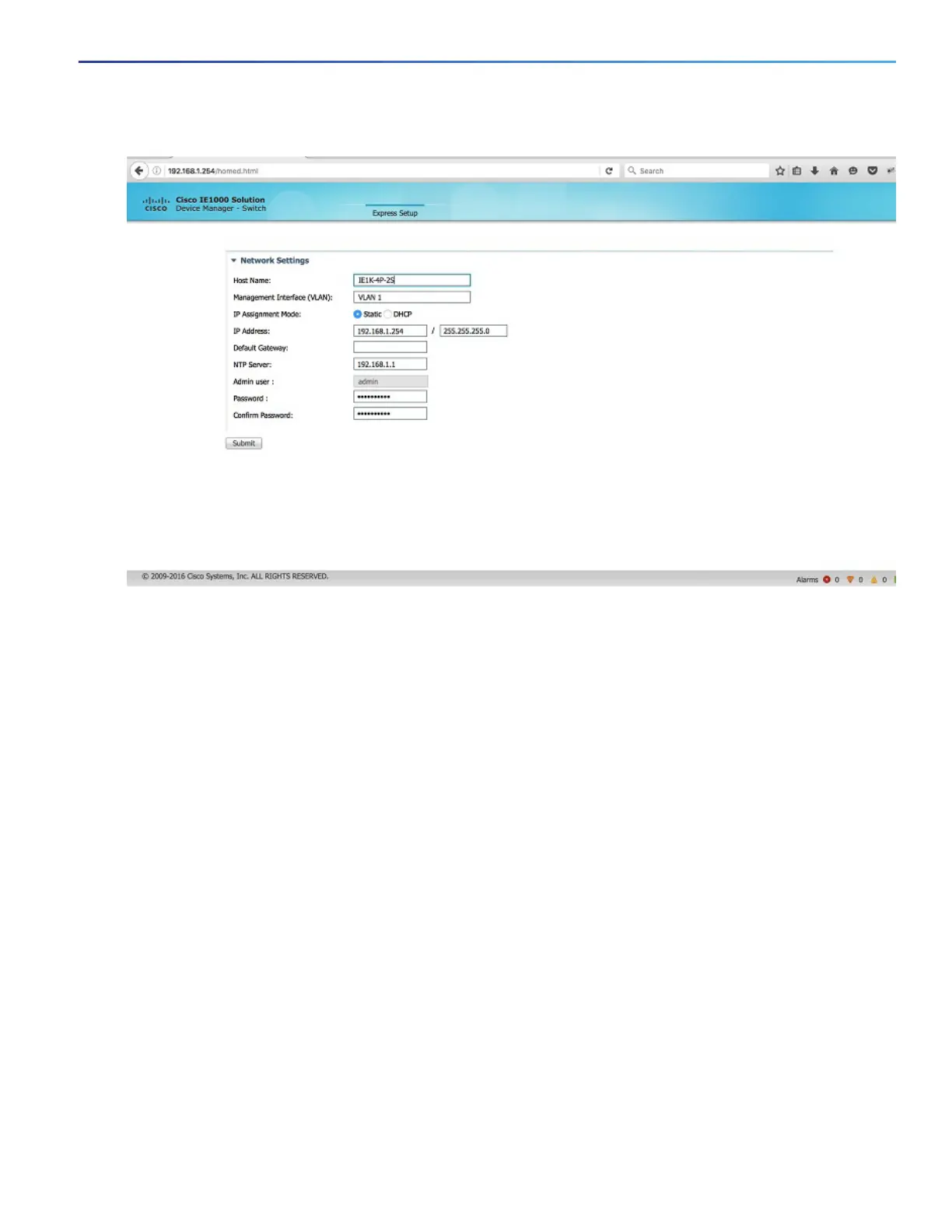

In the Network Settings (Required for Static IP):
— New Admin User: Password must be from 8-31 characters long, contain upper and lower case characters, a
number and a symbol (!@#$%^).
— IP Address: Enter a valid IP address for the switch.
You can later use the IP address to access the switch through Device Manager.
— (Optional) Default Gateway: Enter the IP address of the router.
Note: The Device manager will not allow you to exit the express setup page if the static IP address of the IE 1000 and
the Default Gateway are not in the same subnet.
12. Optional Settings
You can enter the optional information now, or enter it later by using Device Manager. For more information about
the Express Setup fields, see the on-line help for the Express Setup window.
Click Submit to save your changes and to complete the initial setup.
For more information about the optional settings, click Help on the tool-bar.
13. After you click Submit, these events occur:
a. The switch is configured and exits Express Setup mode.
b. The browser displays a warning message, instructing the user to clear browser cookies.

Cisco IE 1000 Specifications

General

Category	Switch
Mounting	DIN-rail or wall mounting
Dimensions	90 x 135 x 55 mm (3.54 x 5.31 x 2.17 in)
DRAM	256 MB
Flash Memory	64 MB
Model	IE-1000
Ports	8 or 16 10/100 Mbps ports
Uplink Ports	2 Gigabit Ethernet uplink ports
Operating Temperature	-40°C to 70°C
Power Input	Dual DC power input
Management	Web-based, CLI, SNMP
Total Ports	Varies by model (5, 8, or 16 ports)
Power Supply	Internal
Weight	1.1 lb
