Chapter 3 Setting Up the Cisco Unified IP Phones
Adjusting the Placement of the Cisco Unified IP Phone
Securing the Phone with a Cable Lock
You can secure the Cisco Unified IP Phone to a desktop by using a laptop cable lock. The lock connects
to the security slot on the back of the phone, and the cable can be secured to a desktop.
The security slot can accommodate a lock up to 20 mm. Compatible laptop cable locks include the
Kensington® laptop cable lock and laptop cable locks from other manufacturers that can fit into the
security slot on the back of the phone. See
Figure 3-3.

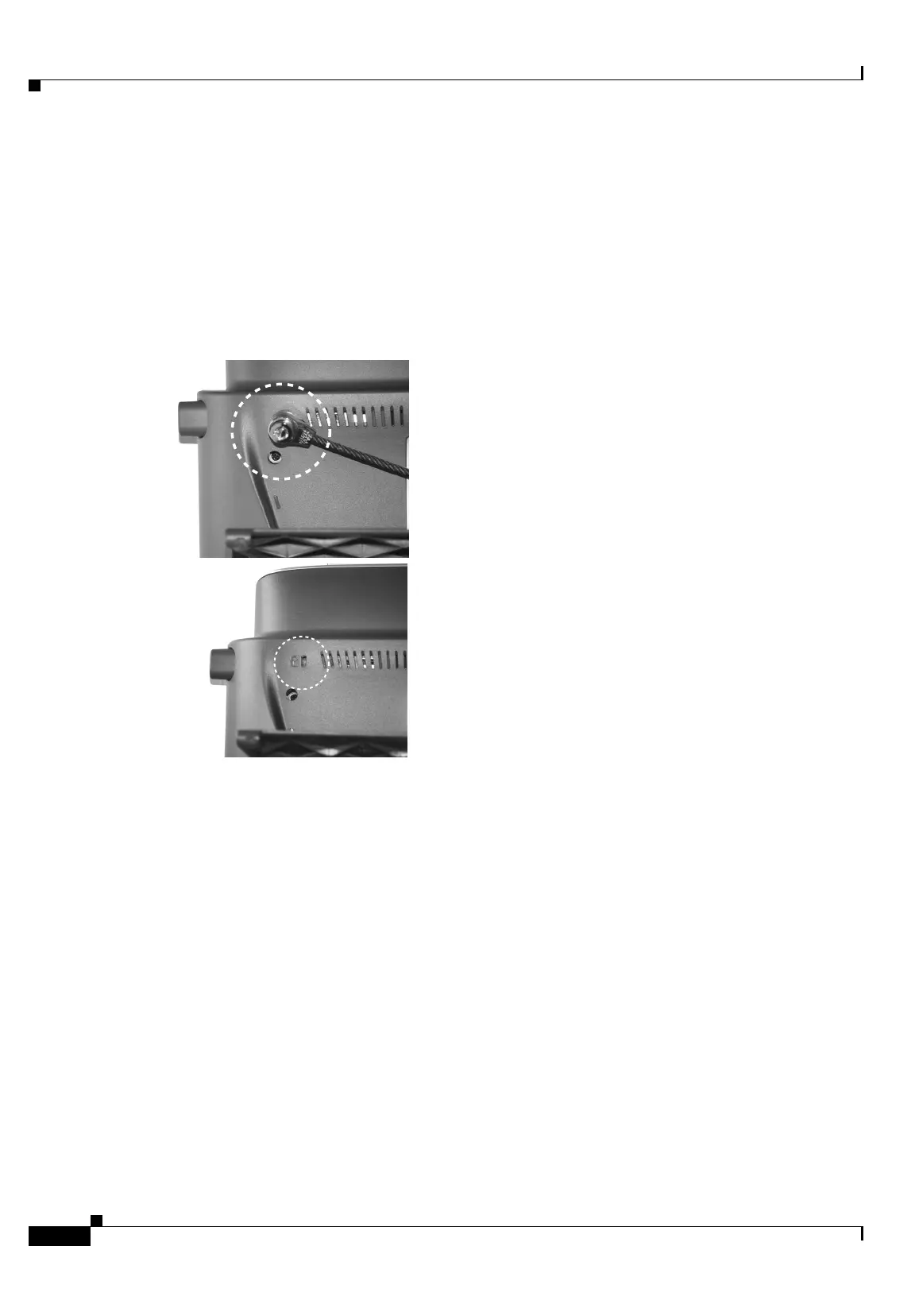

Figure 3-3 Connecting a Cable Lock to the Cisco Unified IP Phone
Mounting the Phone to the Wall
You can mount the Cisco Unified IP Phone on the wall by using the footstand as a mounting bracket or
you can use special brackets available in a Cisco
Unified IP Phone wall mount kit. Wall mount kits must
be ordered separately from the phone.
If you attach the Cisco Unified IP Phone to a wall by using the standard footstand and not the wall mount
kit, you need to supply the following tools and parts:
• Screwdriver
• Screws to secure the Cisco Unified IP Phone to the wall
See Figure 3-4 for a graphical overview of the phone parts.
Before You Begin
To ensure that the handset attaches securely to a wall-mounted phone, remove the handset wall hook
from the handset rest, rotate the hook 180 degrees, and reinsert the hook. Turning the hook exposes a lip
on which the handset catches when the phone is vertical. For an illustrated procedure, see Installing the
Wall Mount Kit for the Cisco Unified IP Phone at:
http://www.cisco.com/en/US/products/hw/phones/ps379/prod_installation_guides_list.html
