Cisco IR1101 Manual

RJ45 Ports
The IR1101 supports one ISOLATED RS232 port which conforms to EIA-561 standard.

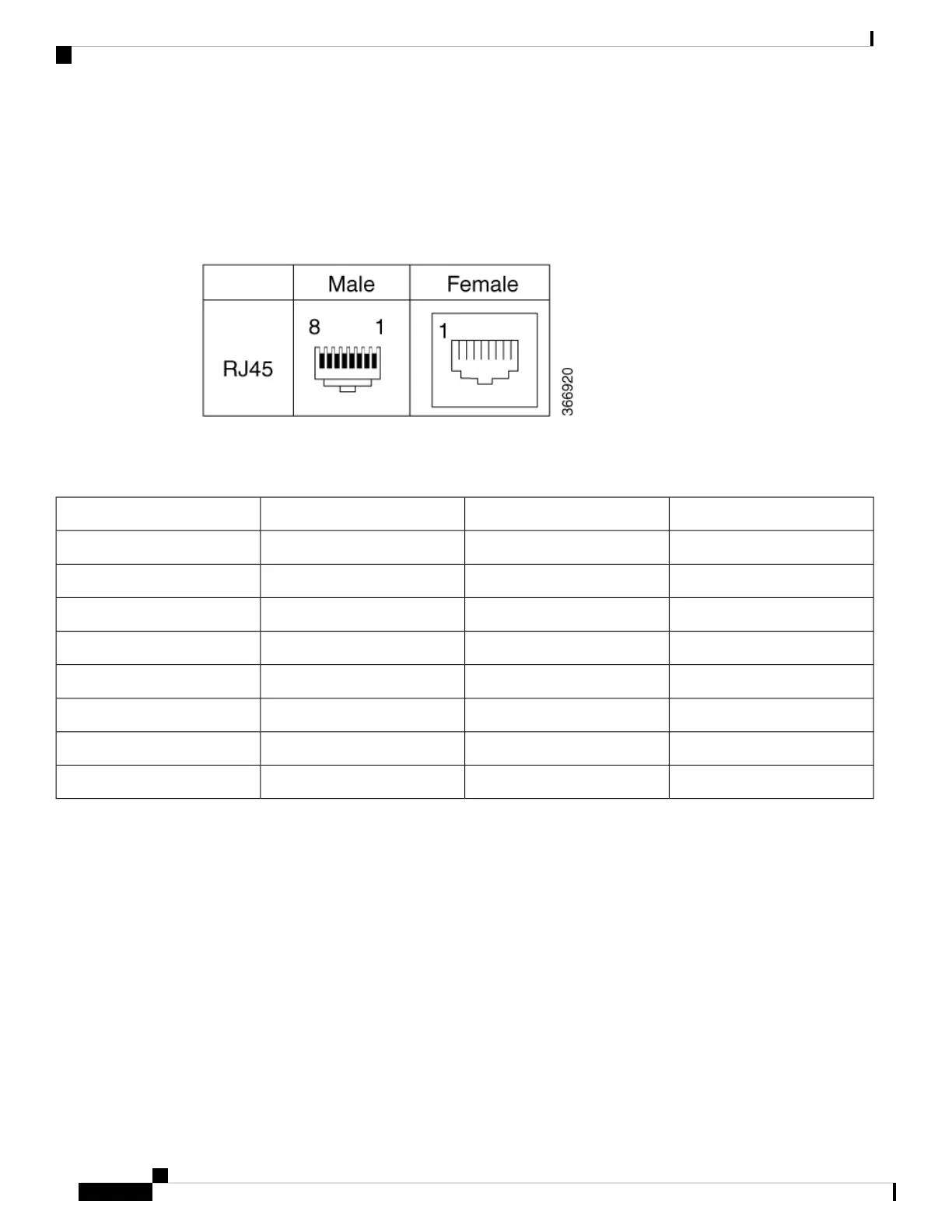

The RJ45 pinouts are shown in Figure 12 .
Figure 13: S0 Characteristics
The RS232 port is a DTE and its pin out is shown in Table 10: S0 Details, on page 18.
Table 10: S0 Details
DTEAbbreviationDescriptionPin Number
<—DSR/RIDCE Ready, Ring Indicator1
<—DCDReceived Line Signal Detector2
—>DTRDTE Ready3
COMSignal Ground4
<—RxDReceived Data5
—>TxDTransmitted Data6
<—CTSClear To Send7
—>RTSRequest To Send8
Ethernet and Optical SFP Modules
The IR1101 Ethernet and Optical SFP modules provide connections to other devices. These field-replaceable
transceiver modules provide the uplink interfaces. The Ethernet and Optical modules can be either copper or
optical. Details are in the two tables listed below.
The Local connectors (LCs) provide the fiber-optic connection. RJ-45 connectors allow copper connections.
You can use any combination of the supported SFP modules listed in the table that follows.
Note: The IR1101 is designed to operate in the Industrial temperature range (-40C to +85C internal component
temperature range) and therefore cannot support commercial rated SFPs.
Product Overview
18
Product Overview
RJ45 Ports

Cisco IR1101 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
SIM card slot	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1Q
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
USB version	2.0
USB ports quantity	2
Combo SFP ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output voltage	12 - 48 V
Power source type	DC
Power consumption (typical)	9.8 W
Operating altitude	-152.4 - 1524 m
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, 2nd edition; CAN/CSA C22.2 No. 60950-1, 2nd edition, EN 60950-1, 2nd edition; CB to IEC 60950-1, 2nd edition
Flash memory	8000 MB
Storage media	Flash
Internal memory	4096 MB
Internal memory type	DRAM
Electromagnetic compatibility	47 CFR Part 15 B, EN 55032:2015, CISPR 32 Edition 2, CNS13438: 2006, EN 300 386 V1.6.1, ICES-003 Issue 6: 2016, KN 32: 2015, TCVN 7189: 2009, V-2/2015.04, V-3/2015.04, AS/NZ CISPR32, EN 61000-4-2, 3, 4, 5, 6, 8, 9, 16, 17, 18, and 29, CISPR24: 2010 + A1: 2015, EN 300 386 V1.6.1, EN 55024: 2010 + A1: 2015, EN 55035:2017, KN35: 2015, TCVN 7317:2003, QCVN 18:2014
Product color	Black
Routing protocols	BGP, EIGRP, HSRP, RIP-1, RIP-2
Data link protocols	IPv4, IPv6
Supported protocols	SCADA, DNP3, T101-104, Raw Socket TCP, UDP
Mobile network generation	Not supported
VPN support	Cisco Easy VPN Solution client and server NAT transparency Dynamic Multipoint VPN (DMVPN) Tunnel-less Group Encrypted Transport VPN Flex VPN
Firewall security	Cisco IOS
Security algorithms	256-bit AES, HTTPS, IPSec, SSL/TLS
Authentication method	Secure HTTP (HTTPS), FTP, Telnet Authentication Proxy
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	124.9 mm
Width	132.5 mm
Height	60 mm
Weight	1020 g
