DescriptionStateIndicator LED
Packet TransmitExtremely Rapid FlashLED 2 (Green)
xDSL Status LED
Installing the DSL SFP Module
Perform the following to install the module:
Step 1 Close the SFP-Pull before inserting the SFP module.
Step 2 Line up the SFP module and slide it into the cage.

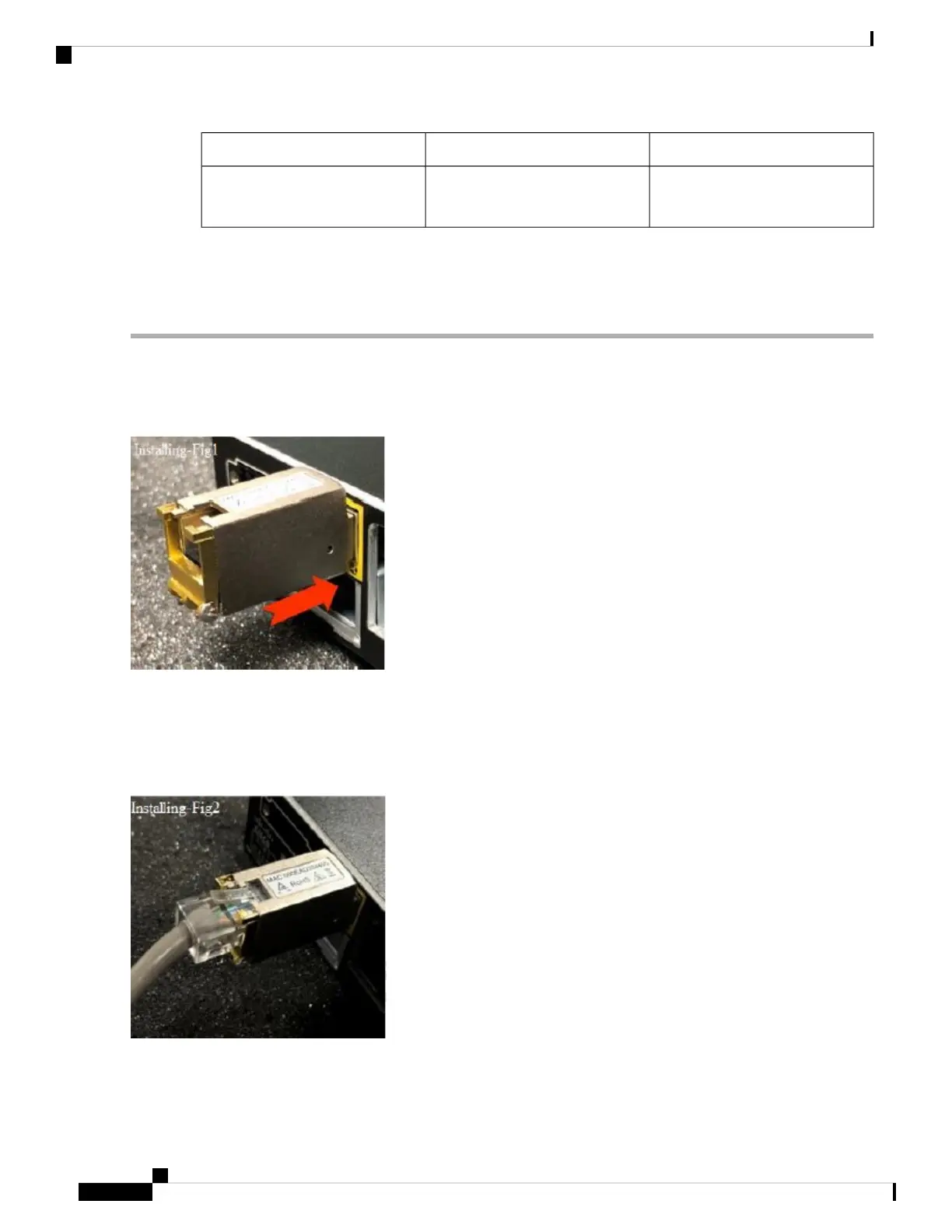

Figure 18: Align SFP Module
LED 1 will turn orange as an indicator of RT. Check for physical connection. You should see LED 2 flashing green
slowly as soon as you insert the device.
Step 3 Plug in the xDSL connection cable. This is only available for an RJ-45 connector.
Figure 19: xDSL Connection
Check for physical connection. You should see LED 2 flashing green slowly as soon as you insert the cable.
Product Overview
24
Product Overview
Installing the DSL SFP Module
