There is an optional AC power adapter with 110/220V AC and 88-300V DC input (Temperature: -40C to
60C). The part number is PWR-IE50W-AC.
DC-Powered products have a nominal operating DC voltage of 12, 24 and 48VDC. Reference American
National Standard for Telecommunications (ATIS) 0600315.
Note
Refer to the following figure for the location and values of the power connector.

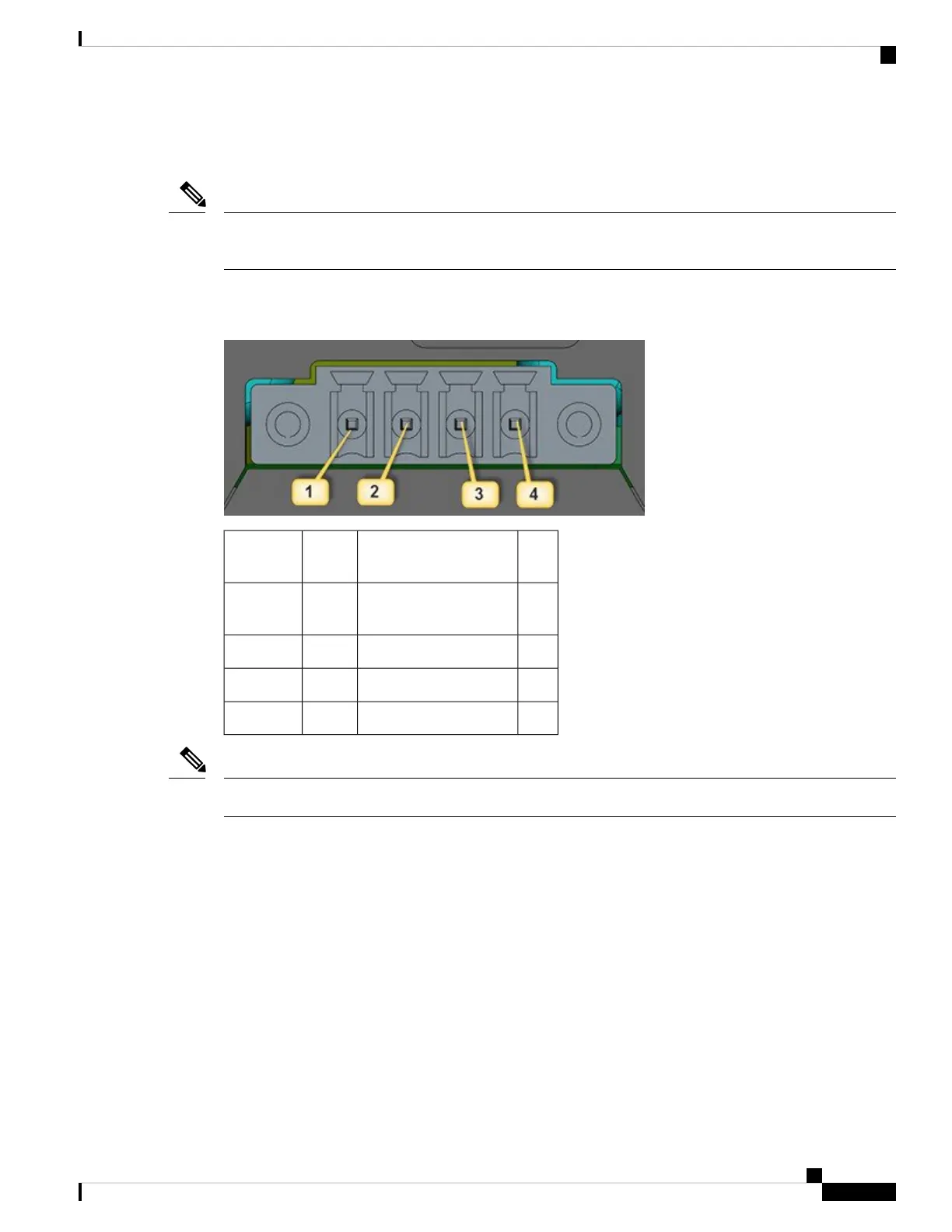

Figure 5: Power Connector Pin-Outs
ColorDescriptionNamePin
Number
RedDC Power Positive InputDC In
+
1
BlackDC Power ReturnDC In -2
N/AAlarm CommonAC3
N/AAlarm InputAI4
Software support for the alarm input is not available at this time and will be available in a future release.
Note
RJ45 Ports
Two RJ45 serial ports are provided to control and monitor RS232 or RS485 equipment. Serial port 0 can be
configured for either RS232 DCE or RS485. Serial port 1 can be configured for RS232 DTE only.
The RJ45 serial ports of the IR809 match the RJ45 serial ports for the IR829 router. There is a complete
section in the IR829 Hardware Installation Guide that covers port characteristics, cabling, pinouts and much
more. Go to the following URL for additional information:https://www.cisco.com/c/en/us/td/docs/routers/
access/800/829/hardware/install/guide/829hwinst/pview.html#85723
Product Overview
17
Product Overview
RJ45 Ports
