5
Getting Started and Product Document of Compliance for the Cisco IR809 Integrated Services Router
78-100612-01A0
Note Marked DC Input ratings: 12-48Vdc, 0.5-1.5A.
Note The maximum ambient (Tamb) operating temperature range is –40 to 140°F (–40 to 60°C).
Grounding the Router
Make sure to follow any grounding requirements at your site.
Warning
This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection
authority or an electrician if you are uncertain that suitable grounding is available.
Statement 1024
Warning
This equipment is intended to be grounded to comply with emission and immunity requirements.
Ensure that the equipment functional ground lug is connected to earth ground during normal use.
Statement 1064
Caution To make sure that the equipment is reliably connected to earth ground, follow the grounding procedure
instructions, and use 14-to-16 AWG (1.6mm -to- 1.3mm) wire.
Caution Use at least a 2.3mm conductor to connect to the external grounding screw.
The router must be connected to a reliable earth ground. Install the ground wire in accordance with local
electrical safety standards.
• For NEC-compliant grounding, use size 14 AWG (1.6mm) or larger copper wire and a ring terminal
with an inner diameter of 1/4 in. (5 to 7 mm).
• For EN/IEC 60950-compliant grounding, use size 18 AWG (1.02mm) or larger copper wire.
Step 1
Locate the ring terminal lug in the packaging kit. Store the ground screw for later use.
Step 2
Use a wire stripping tool to strip the 14-16 AWG (1.6mm -to- 1.3mm) grounding wire to 0.22 in. (5.56 mm).
Step 3

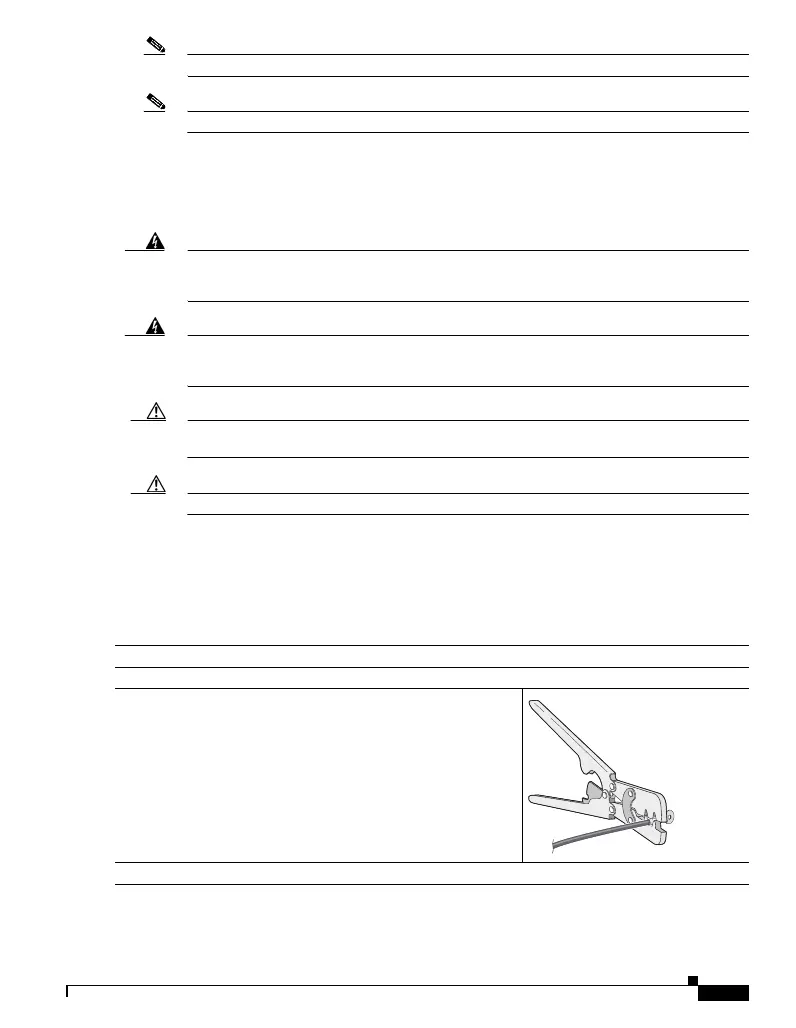

Insert the ground wire into the ring terminal lug, and using a crimping
tool, crimp the terminal to the wire.
Step 4
Slide the ground screw through the ground lug.
332163
