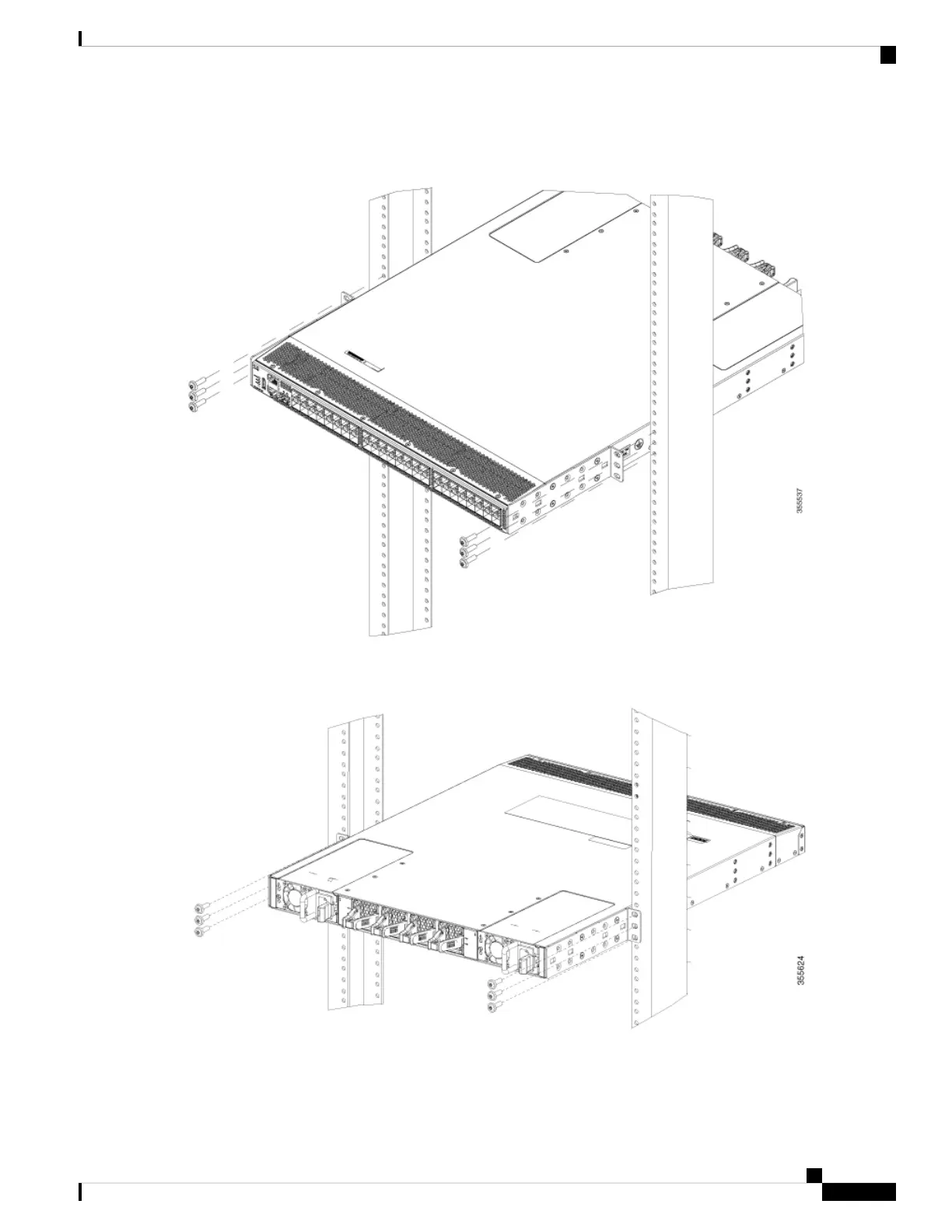

Figure 9: Installing the Switch onto the 2-Post Rack From the Front Side of the Chassis
Figure 10: Installing the Switch onto the 2-Post Rack From the Rear Side of the Chassis
c. Tighten the 10-32 screws to 20 in-lb (2.26 N.m) or tighten the 12-24 screws to 30 in-lb (3.39 N.m).
Cisco MDS 9124V-K9 Switch Hardware Installation Guide
27
Installing the Cisco MDS 9124V-K9 Switch
Installing the Switch into a 2-Post Rack
