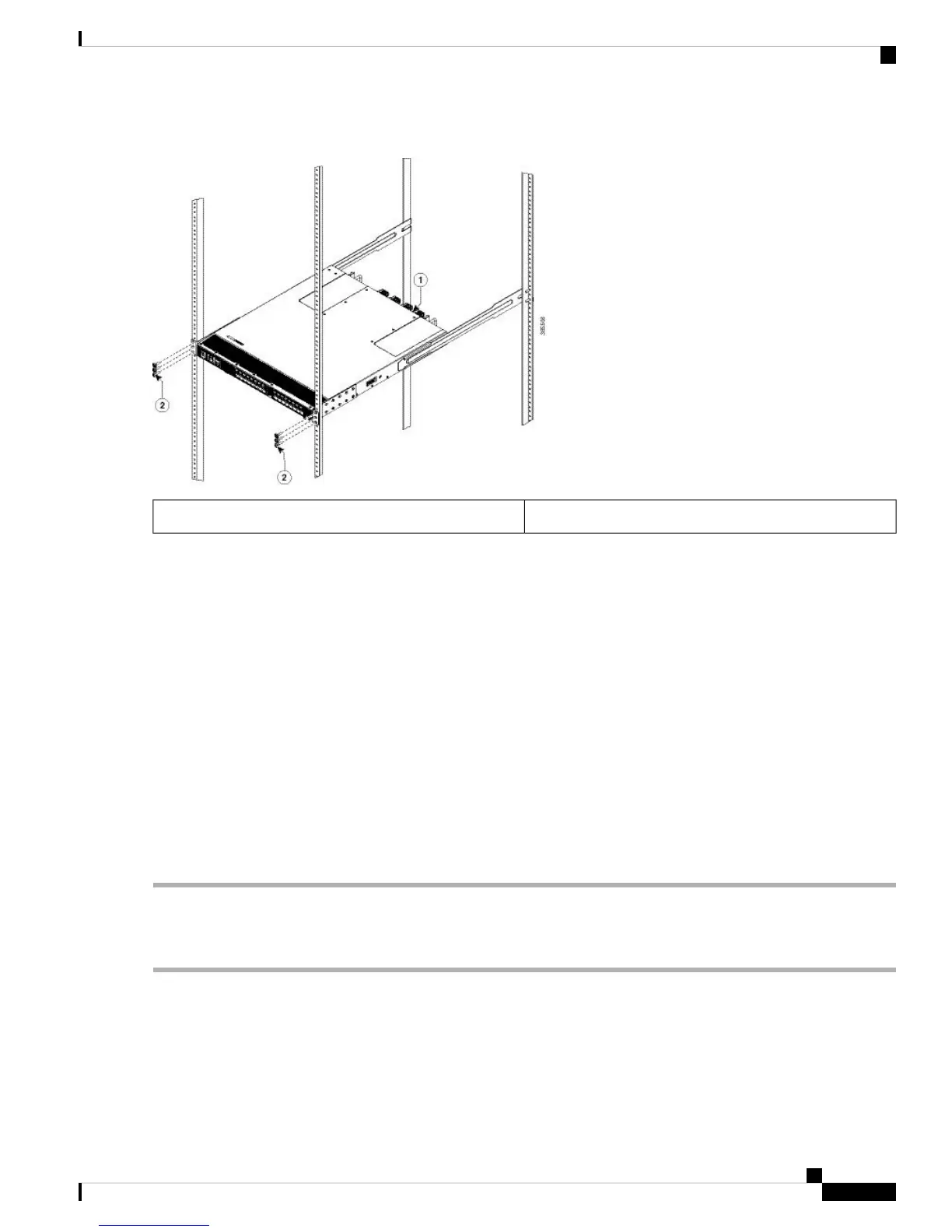

Step 5 Insert the switch into the rack and attach it as follows:
2. Customer-supplied rack-mount screw.1. Fan-tray end of the chassis.
1. Holding the switch with both hands, position the two rear rack-mount brackets on the switch between the rack or
cabinet posts that do not have slider rails attached to them.
2. Align the two rear rack-mount guides on either side of the switch with the slider rails installed in the rack. Slide the
rack-mount guides onto the slider rails, and then gently slide the switch all the way into the rack until the front
rack-mount brackets come in contact with two rack or cabinet posts.
If you attached a grounding cable to the chassis, you will need to bend one of the rack-mount posts slightly
to allow the grounding lug to go behind the post.
Note
3. Holding the chassis level, insert two screws (12-24 or 10-32, depending on the rack type) into each of the two front
rack-mount brackets (using a total of four screws), and into the cage nuts or threaded holes in the vertical rack-mounting
posts.
4. Tighten the 10-32 screws to 20 in-lb (2.26 N·m), or tighten the 12-24 screws to 30 in-lb (3.39 N·m).
Step 6 If you have attached a grounding wire to the chassis grounding pad, connect the other end of the wire to the facility
ground.
Installing the Switch into a 2-Post Rack
Step 1 Install two rack–mount brackets onto the switch as follows:
a) Determine which end of the chassis is to be located in the cold aisle as follows:
• If the switch has port-side intake modules (fan modules with red coloring), position the switch so that its ports
is in the cold aisle.
Installing a Cisco MDS 9132T Switch
11
Installing a Cisco MDS 9132T Switch
Installing the Switch into a 2-Post Rack
