Cisco MDS 9148T

Rear View

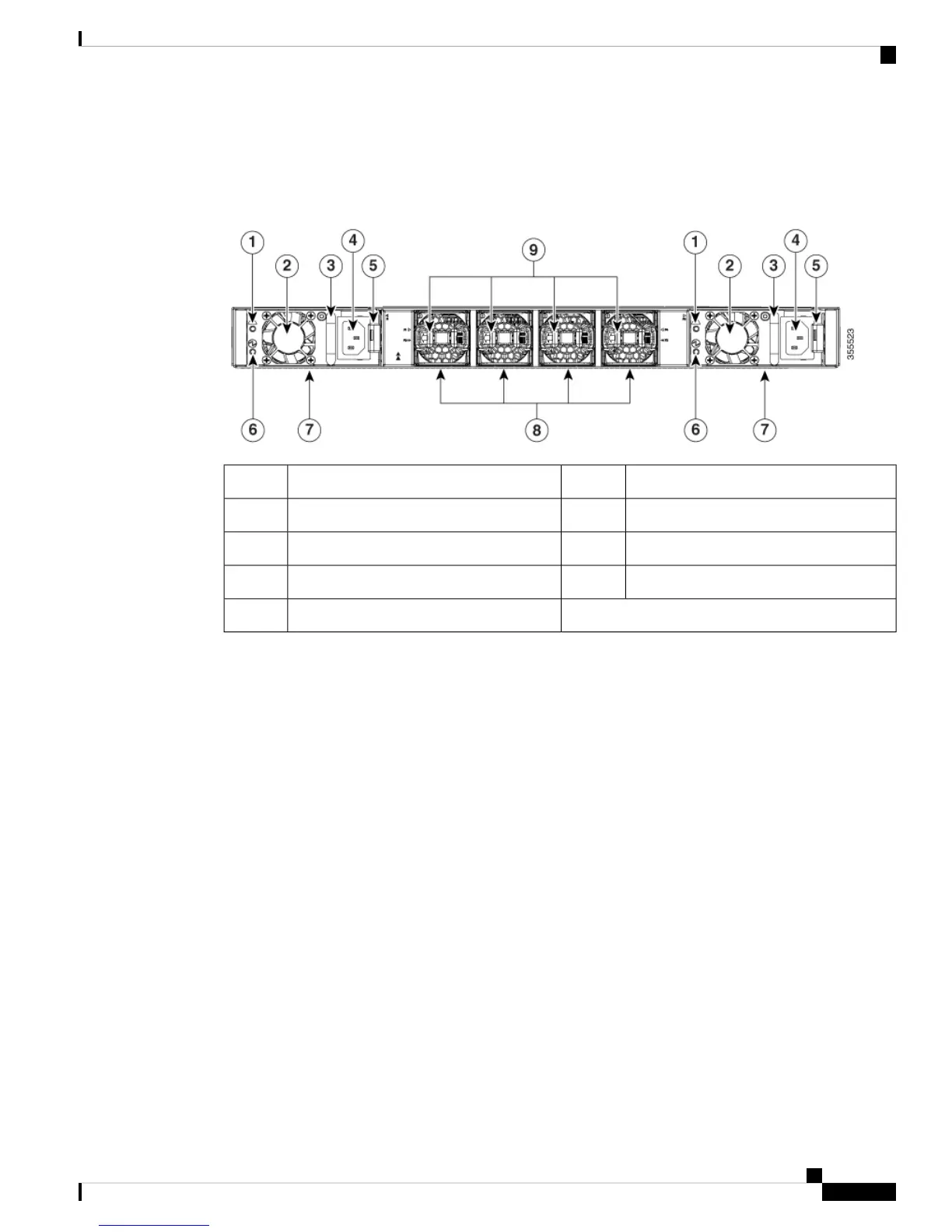

The following figure shows the rear view of a Cisco MDS 9148T Switch:
Figure 2: Rear View of the Cisco MDS 9148T Switch
Power supply status LED6Power supply failure status LED1
Power supply units (2 units)7Power supply unit fan2
Chassis fan modules (4 units)8Power supply unit handle3
Chassis fan module release latches (8)9Unswitched power receptacle4
Power supply unit latch release5
Side View
The following figure shows the side view of a Cisco MDS 9148T Switch:
