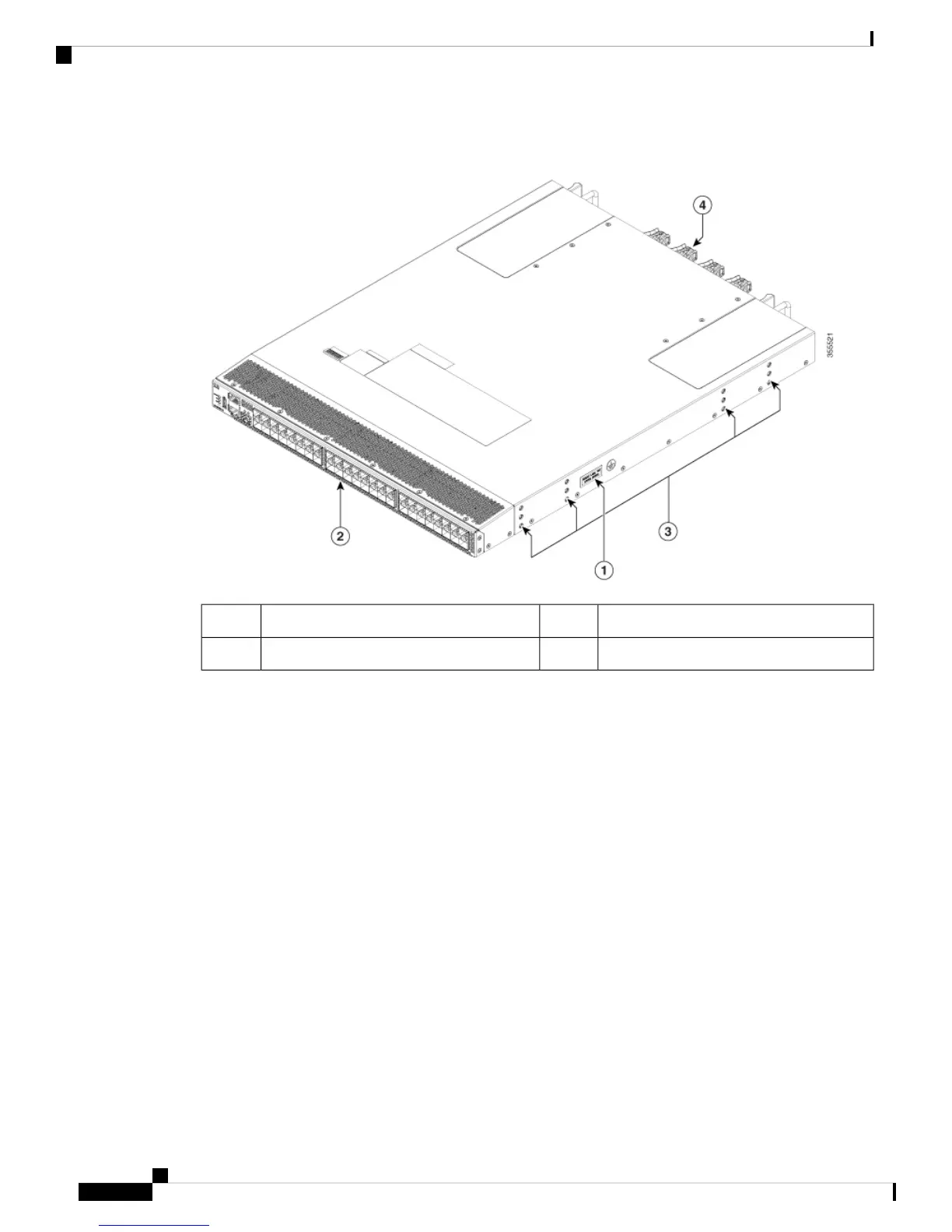

Figure 3: Side View of the Cisco MDS 9148T Switch
Rack mounting holes3Grounding point1
Rear side of the switch4Port side of the switch2
Chassis Components
Fan Modules
The Cisco MDS 9148T Switch fan modules have a fixed handle for insertion and removal from the chassis.
The Cisco MDS 9148T Switch requires a minimum of two operating fan modules to prevent automatic
shutdown. It supports up to four fan modules. This provides redundancy for uninterrupted operation in the
event of fan module failure. The Cisco MDS 9148T Switch fan modules are hot-swappable to also allow
swapping out of a fan module during operation for uninterrupted operation. During a fan module replacement,
the internal airflow through the chassis is changed. If the internal airflow is disrupted for too long, the preset
temperature thresholds will be exceeded and the system will automatically shut down to prevent permanent
damage.
Cisco MDS 9148T 32-Gbps 48-Port Fibre Channel Switch Hardware Installation Guide
8
Overview of Cisco MDS 9148T Fibre Channel Switch
Chassis Components

Cisco MDS 9148T Specifications

General

Ports	48
Port Type	Fibre Channel
Form Factor	1RU
Switching Bandwidth	1536 Gbps
Power Supply	Dual, hot-swappable
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Management	CLI
Dimensions	1.72 x 17.3 in
Humidity	5% to 95% non-condensing
