Table 10: 10/100 BASE-T Management Port Cable Pinout
SignalPin
TD+1
TD-2
RD+3
RD-4
Not used5
Not used6
Not used7
Not used8
The following figure shows a schematic of the 10/100 BASE-T cable:

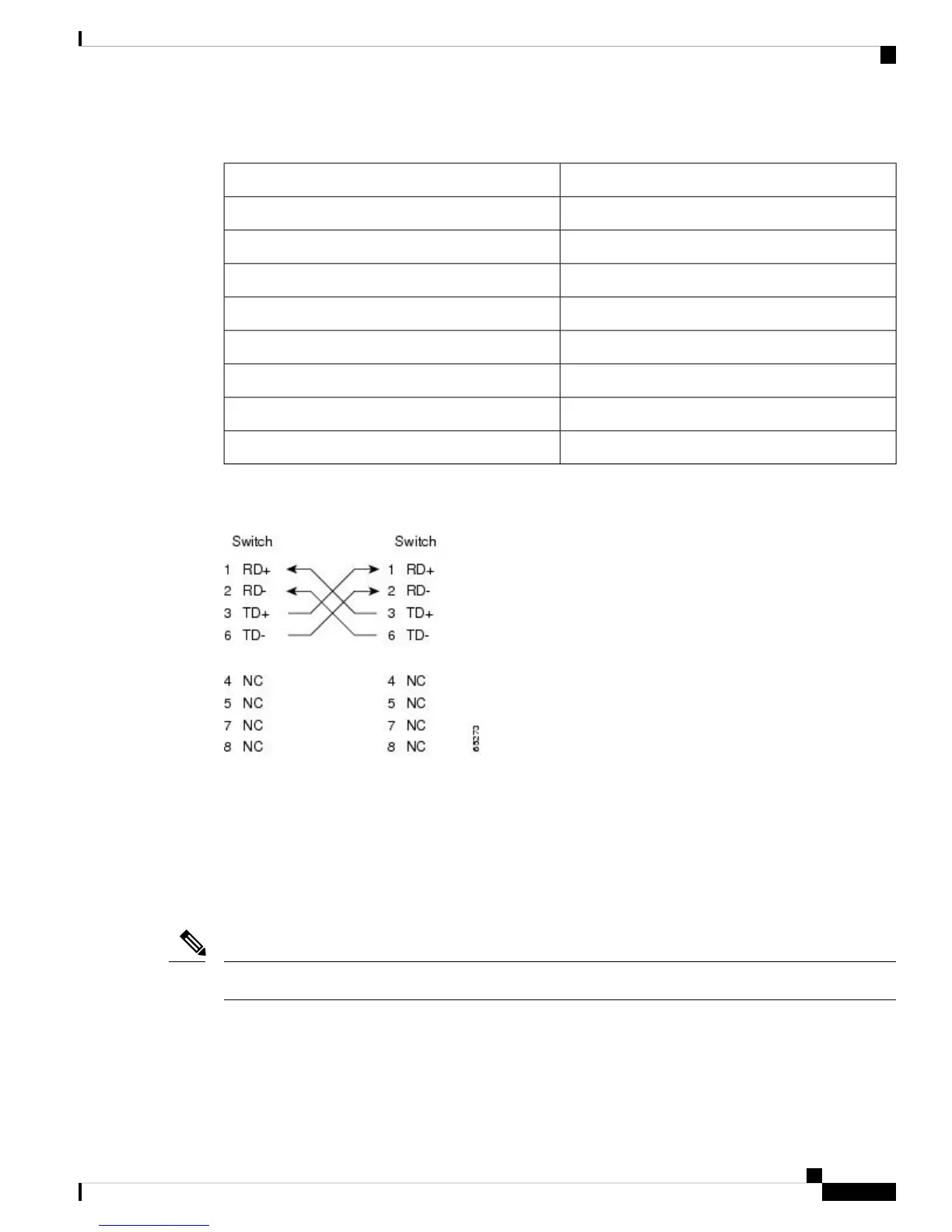

Figure 20: Twisted-Pair 10/100 BASE-T Cable Schematic
Supported Power Cords and Plugs
Each switch power supply unit requires one power cord. Cisco approved cords may be ordered with the
product. There are two types: standard power cords with a country specific plug for use with wall outlets and
jumper power cords for use with cabinet outlets. The user may also source their own power cords for the
product, as long as they meet the power cord specifications for this product.
Only the standard power cords or jumper power cords ordered from Cisco are supported.
Note
Cisco MDS 9148T 32-Gbps 48-Port Fibre Channel Switch Hardware Installation Guide
59
Cable and Port Specifications
Supported Power Cords and Plugs
