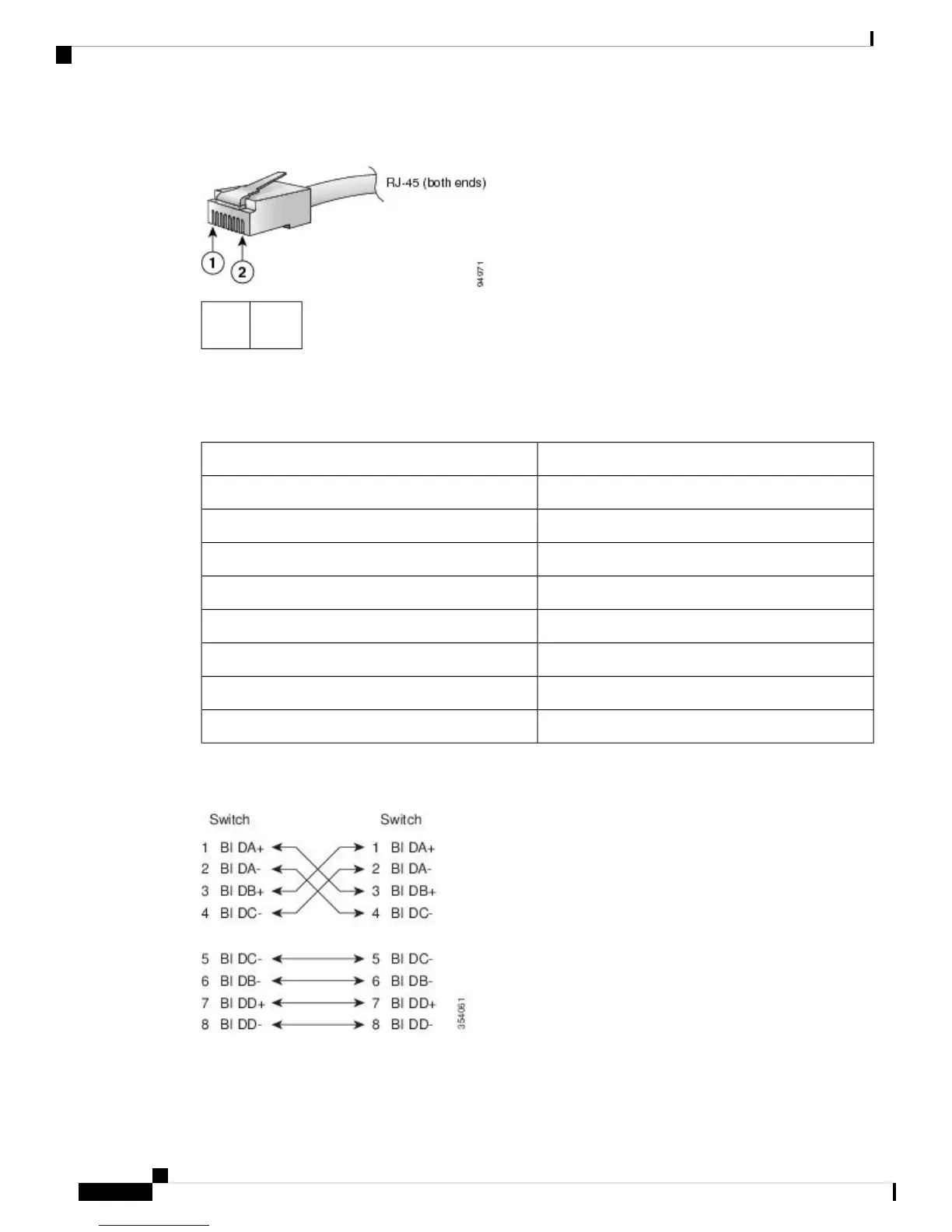

Figure 18: RJ-45 Interface Cable Connector
2. Pin
8
1. Pin
1
The following table lists the connector pinouts and signal names for a 10/100/1000BASE-T management port
(MDI) cable.
Table 9: 10/100/1000 BASE-T Management Port Cable Pinout
SignalPin
BI DA+1
BI DA-2
BI DB+3
BI DC+4
BI DC-5
BI DB-6
BI DD+7
BI DD-8
The following figure shows a schematic representation of the 10/100/1000 BASE-T cable:
Figure 19: Twisted-Pair 10/100/1000 BASE-T Cable
The following table lists the connector pinouts and signal names for a 10/100 BASE-T management port
(MDI) cable:
Cisco MDS 9148T 32-Gbps 48-Port Fibre Channel Switch Hardware Installation Guide
58
Cable and Port Specifications
Cable and Port Specifications

Cisco MDS 9148T Specifications

General

Ports	48
Port Type	Fibre Channel
Form Factor	1RU
Switching Bandwidth	1536 Gbps
Power Supply	Dual, hot-swappable
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Management	CLI
Dimensions	1.72 x 17.3 in
Humidity	5% to 95% non-condensing
