Cisco MDS 9148T User Manual

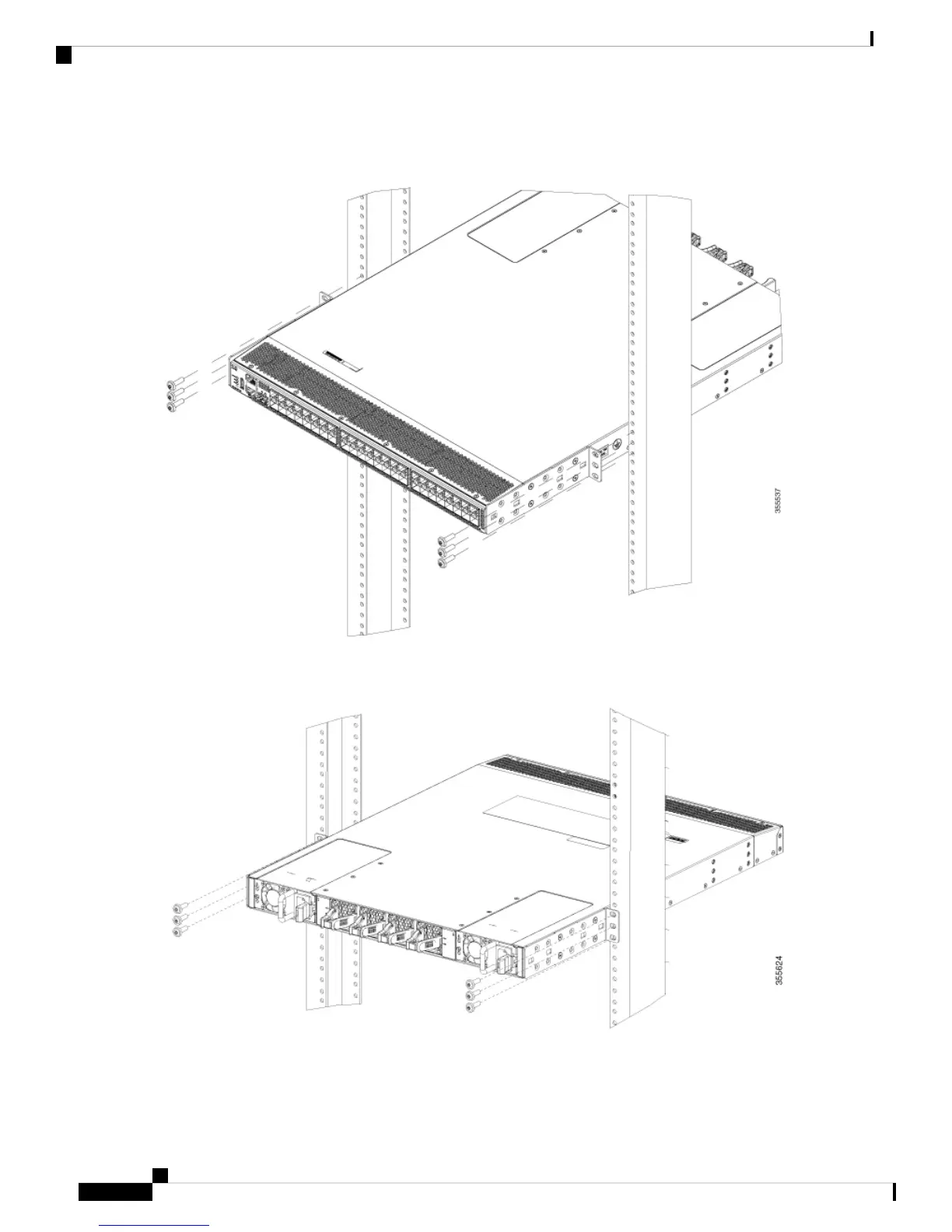

Figure 12: Installing the Switch onto the 2-Post Rack From the Front Side of the Chassis
Figure 13: Installing the Switch onto the 2-Post Rack From the Rear Side of the Chassis
3. Tighten the 10-32 screws to 20 in-lb (2.26 N.m) or tighten the 12-24 screws to 30 in-lb (3.39 N.m).
Cisco MDS 9148T 32-Gbps 48-Port Fibre Channel Switch Hardware Installation Guide
32
Installing the Cisco MDS 9148T Switch
Installing the Switch into a 2-Post Rack

Cisco MDS 9148T Specifications

General

Ports	48
Port Type	Fibre Channel
Form Factor	1RU
Switching Bandwidth	1536 Gbps
Power Supply	Dual, hot-swappable
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Management	CLI
Dimensions	1.72 x 17.3 in
Humidity	5% to 95% non-condensing
