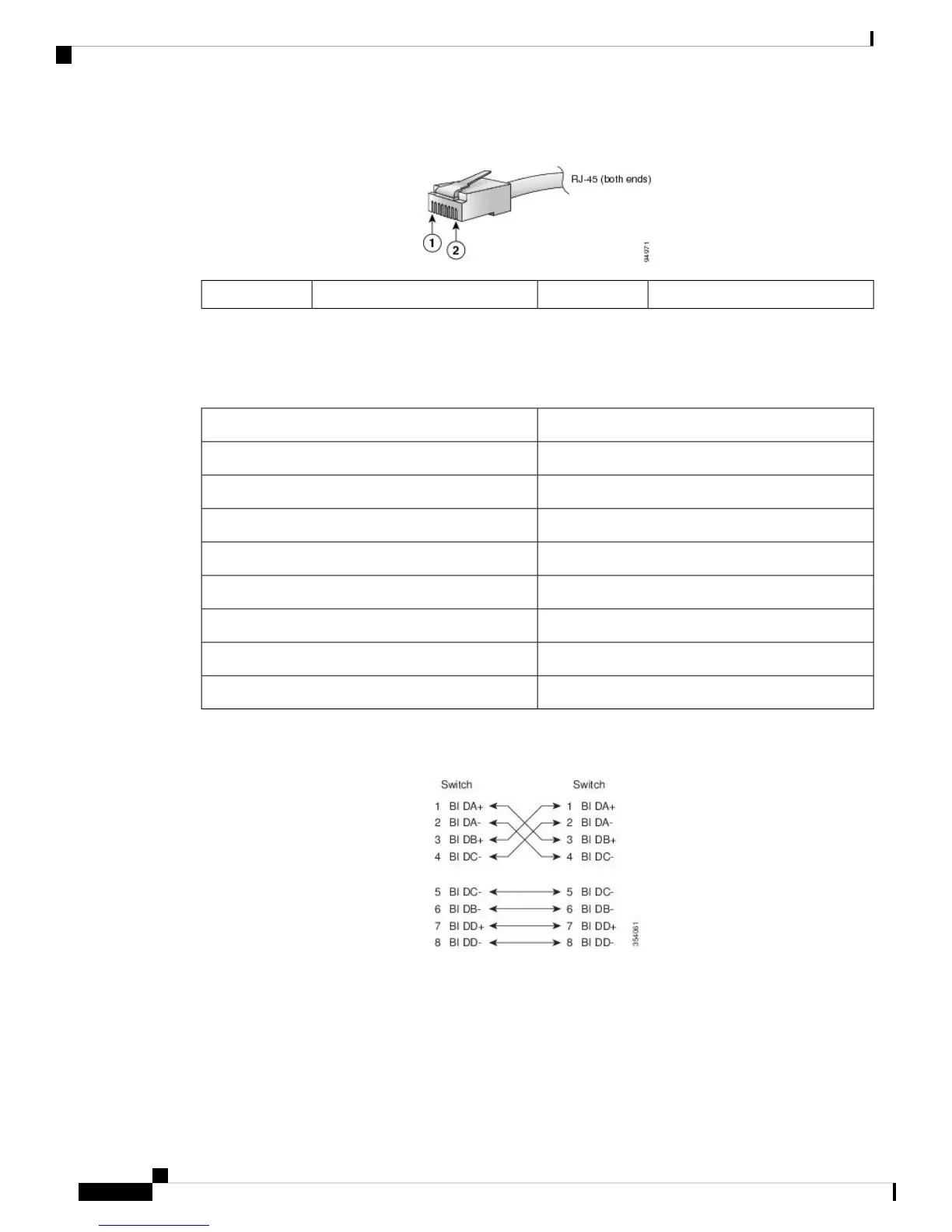

Figure 15: RJ-45 Interface Cable Connector
Pin 82Pin 11
The following table lists the connector pinouts and signal names for a 10/100/1000BASE-T management port
(MDI) cable.
Table 7: 10/100/1000BASE-T Management Port Cable Pinout
SignalPin
BI DA+1
BI DA-2
BI DB+3
BI DC+4
BI DC-5
BI DB-6
BI DD+7
BI DD-8
The following figure shows a schematic of the 10/100/1000BASE-T cable.
Figure 16: Twisted-Pair 10/100/1000BASE-T Cable Schematic
The following table lists the connector pinouts and signal names for a 10/100BASE-T management port (MDI)
cable.
Cisco MDS 9396T Multilayer Fabric Switch Hardware Installation Guide
56
Cable and Port Specifications
Cable and Port Specifications
