Cisco NCS 5500 Series Hardware Installation Guide

StatusColorLED
This module is operational.
GreenSTS
Host kernel booted and is ready to start the system administrator VM.Amber
Either of the following conditions:
• The card has detected a slot ID parity error and will not power
on or boot up.
• The card is not fully inserted.
Red
The card has active major or critical alarms.Flashing red
The card is booting up or shutting down.Flashing amber
The card is powered-off and can now be safely removed.Off
The port is active.
GreenLink (for
each port)
The port is disabled by the operator or is not initializing.Orange
The port is faulty and disabled.Flashing orange
The port is not active or the link is not connected.Off

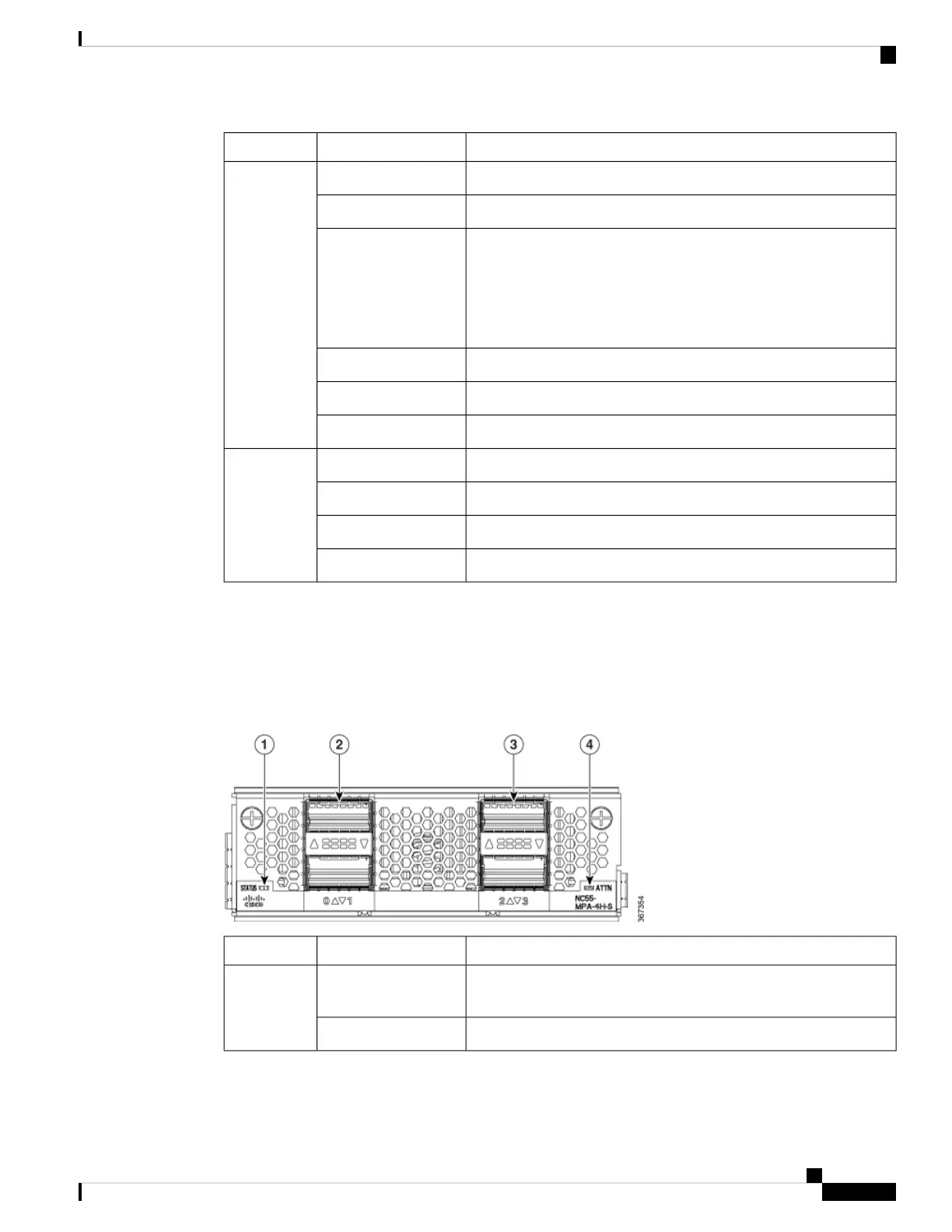

MPA LEDs
The STATUS LED is located on the front left of the MPA, the attention (ATTN) is located on the front right
of the MPA, and the Link LED for each port is located between the two rows of ports (each of these LEDs is
a triangle pointing to the port above or below the LED).
StatusColorLED
The operator has activated this LED to identify this MPA in the
chassis.
Flashing blueATTN
This LED is not being used.Off
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
137
LEDs
MPA LEDs

Cisco NCS 5500 Series Specifications

General

Series	NCS 5500
Category	Network Router
Operating System	Cisco IOS XR
Product Type	Modular Router
Form Factor	Rack-mountable
Purpose	High-performance routing for service providers and large enterprises
Interface Types	Ethernet
Redundancy	Redundant power supplies and fan trays
Port Density	Varies by model; high-density configurations available
Routing Protocols	BGP, OSPF, IS-IS, MPLS
Power Supply Options	AC and DC power supplies available
Management	CLI, SNMP, NETCONF
